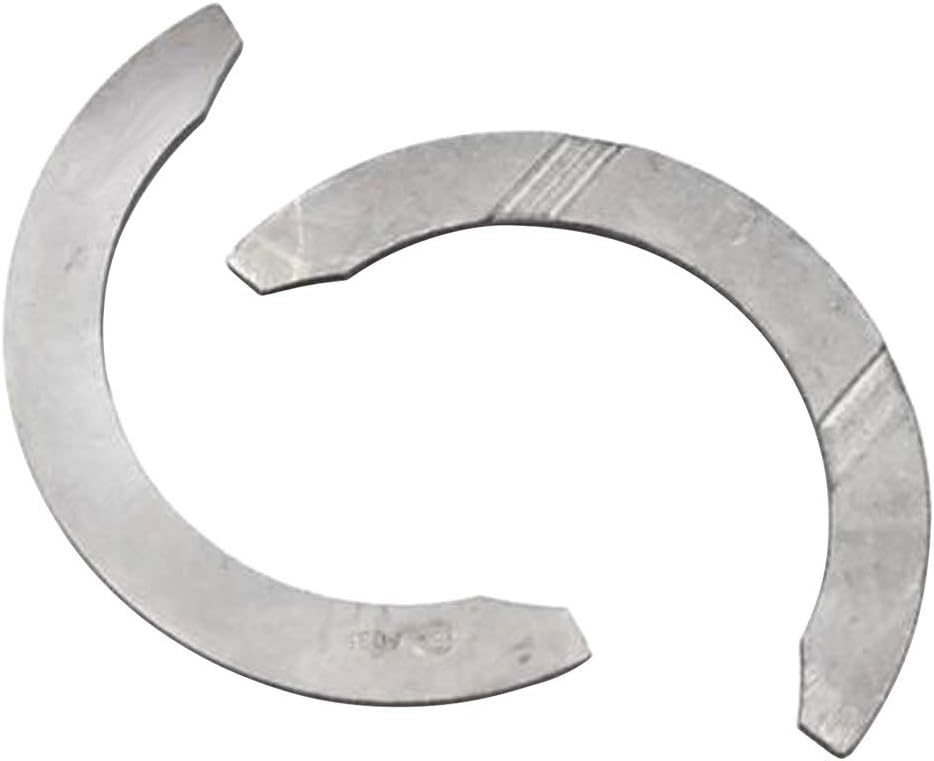

ACL Honda 2156CC Standard Size Thrust Washer - 1T1937-STD

• Series: ACL
• Bearing Type: Thrust washer
• Shell Halves: Identical halves
• Bearing Material Code: F817
• Sizes Offered: STD
• Housing Bore (Tunnel) Diameter: 77.6–77.85 mm (3.0551–3.065 in)
• Journal Diameter: 57.65–57.9 mm (2.2697–2.2795 in)
• Bearing Width (max): 2.49 mm (0.098 in)

Engine Applications

• Honda F18B 1850cc Inline4 SOHC 4v (bore 85 mm, stroke 81.5 mm)
• Honda F20A2 1997cc Inline4 SOHC 4v (bore 87 mm, stroke 88 mm)
• Honda F20A4 1997cc Inline4 SOHC 4v (bore 87 mm, stroke 88 mm)
• Honda F20A5 1997cc Inline4 SOHC 4v (bore 87 mm, stroke 88 mm)
• Honda F20A6 1997cc Inline4 SOHC 4v (bore 87 mm, stroke 88 mm)
• Honda F20A7 1997cc Inline4 SOHC 4v (bore 87 mm, stroke 88 mm)
• Honda F20A8 1997cc Inline4 SOHC 4v (bore 87 mm, stroke 88 mm)
• Honda F20B3 1997cc Inline4 SOHC 4v (bore 85 mm, stroke 88 mm)
• Honda F20B5 1997cc Inline4 SOHC 4v (bore 85 mm, stroke 88 mm)
• Honda F20B6 1997cc Inline4 SOHC 4v (bore 85 mm, stroke 88 mm)
• Honda F22A1 2156cc Inline4 SOHC 4v (bore 85 mm, stroke 95 mm) — Honda Prelude 4th Gen.
• Honda F22A3 2156cc Inline4 SOHC 4v (bore 85 mm, stroke 95 mm)
• Honda F22A4 2156cc Inline4 SOHC 4v (bore 85 mm, stroke 95 mm)
• Honda F22A5 2156cc Inline4 SOHC 4v (bore 85 mm, stroke 95 mm) — Honda Accord 4th Gen.
• Honda F22A6 2156cc Inline4 SOHC 4v (bore 85 mm, stroke 95 mm) — Honda Accord 4th Gen.
• Honda F22B1 2156cc Inline4 SOHC 4v (bore 85 mm, stroke 95 mm) — Honda Accord 5th Gen.
• Honda F22B2 2156cc Inline4 SOHC 4v (bore 85 mm, stroke 95 mm)
• Honda F22B3 2156cc Inline4 SOHC 4v (bore 85 mm, stroke 95 mm) — Honda Accord 5th Gen.
• Honda F22B6 2156cc Inline4 SOHC 4v (bore 85 mm) — Honda Odyssey 1st Gen.
• Honda F22B8 2156cc Inline4 SOHC 4v (bore 85 mm, stroke 95 mm)
• Honda F22Z6 2156cc Inline4 DOHC 4v (bore 85 mm, stroke 95 mm) — Honda Prelude 5th Gen.
• Honda G20A 1996cc Inline5 SOHC 4v (bore 82 mm, stroke 75.6 mm)
• Honda G25A 2451cc Inline5 SOHC 4v (bore 85 mm, stroke 86.4 mm)
• Honda H22A1 2157cc Inline4 DOHC 4v (bore 87 mm, stroke 90.7 mm) — Honda Prelude 4th Gen.
• Honda H22A2 2157cc Inline4 DOHC 4v (bore 87 mm, stroke 90.7 mm)
• Honda H22A4 2157cc Inline4 DOHC 4v (bore 87 mm, stroke 90.7 mm) — Honda Prelude 5th Gen.
• Honda H22A5 2157cc Inline4 DOHC 4v (bore 87 mm, stroke 90.7 mm)
• Honda H23A 2258cc Inline4 DOHC 4v (bore 87 mm, stroke 95 mm) — Honda Prelude 4th Gen.
