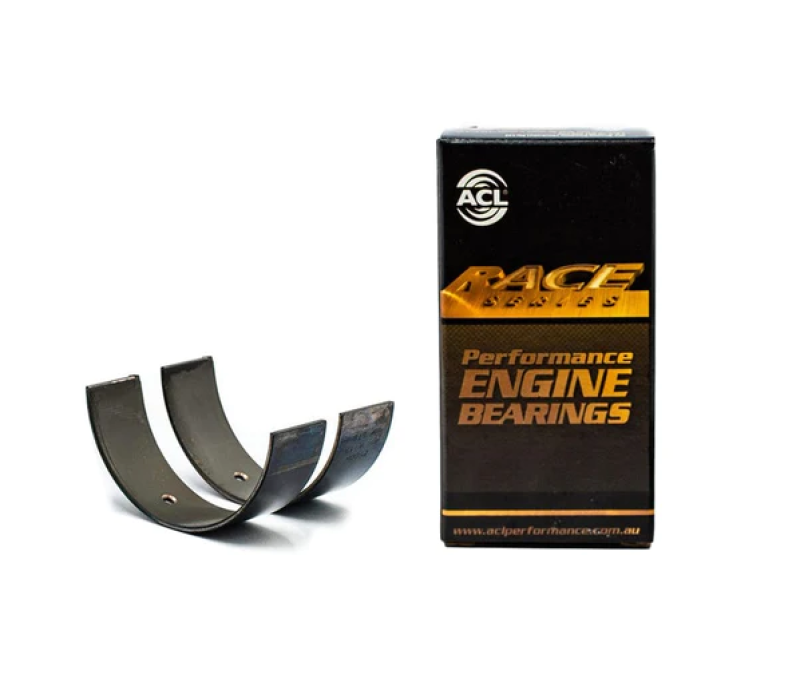

ACL Holden/Buick 231ci (3.8L V6) Engine Connecting Rod Bearing Set - 6B2306H-010

• Series: ACL Race Series
• Bearing Type: Connecting rod bearing
• Shell Halves: Identical halves
• Bearing Material Code: F781
• Sizes Offered: STD, 001, 010, 020
• Housing Bore (Tunnel) Diameter: 60.3–60.312 mm (2.374–2.3745 in)
• Journal Diameter (STD size): 57.117–57.137 mm (2.2487–2.2495 in)
• Vertical Oil Clearance (STD size): 0.027–0.075 mm (0.0011–0.003 in)
• Maximum Wall Thickness at Crown (STD size): 1.568 mm (0.0617 in)
• Bearing Width (max): 18.3 mm (0.72 in)

Engine Applications

• General Motors 204ci (3.3L) (Buick) V6 OHV 2v (bore 93.98 mm, stroke 80.01 mm)
• General Motors 231ci (3.8L) (Buick) V6 OHV 2v Supercharged (bore 90.5 mm, stroke 100 mm)
• General Motors 231ci (3.8L) MPI/TPI (Buick) V6 OHV 2v (bore 96.52 mm, stroke 86.36 mm)
• Holden 3.8L Ecotec V6 OHV 2v (bore 96.5 mm, stroke 86 mm) — Holden Commodore VY II
• Holden 3.8L Ecotec V6 OHV 2v S/Charged (bore 96.52 mm, stroke 86.36 mm) — Holden Commodore VY II
• Holden 3.8L V6 OHV 2v (bore 96.52 mm, stroke 86.36 mm) — Holden Caprice VR
