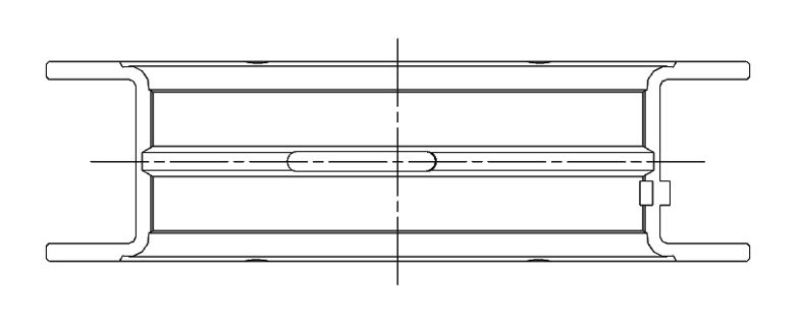

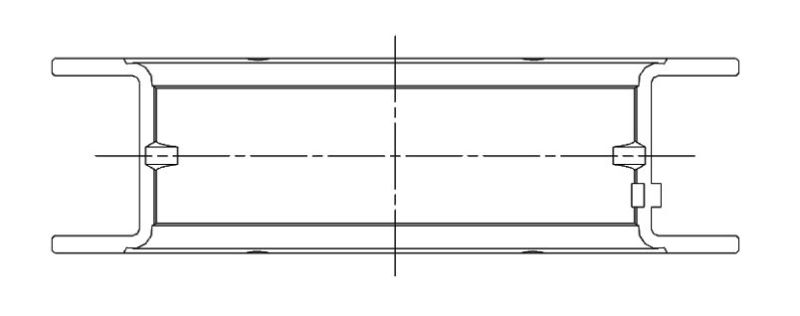

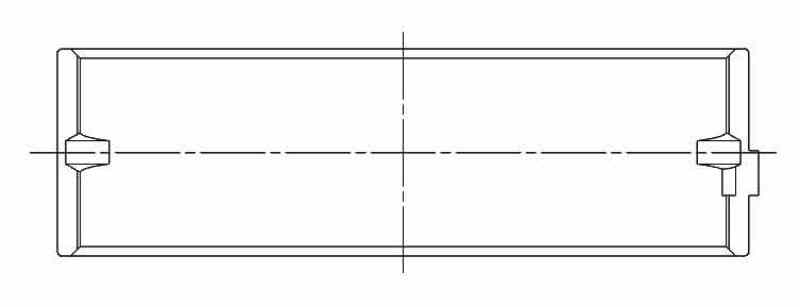

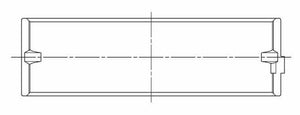

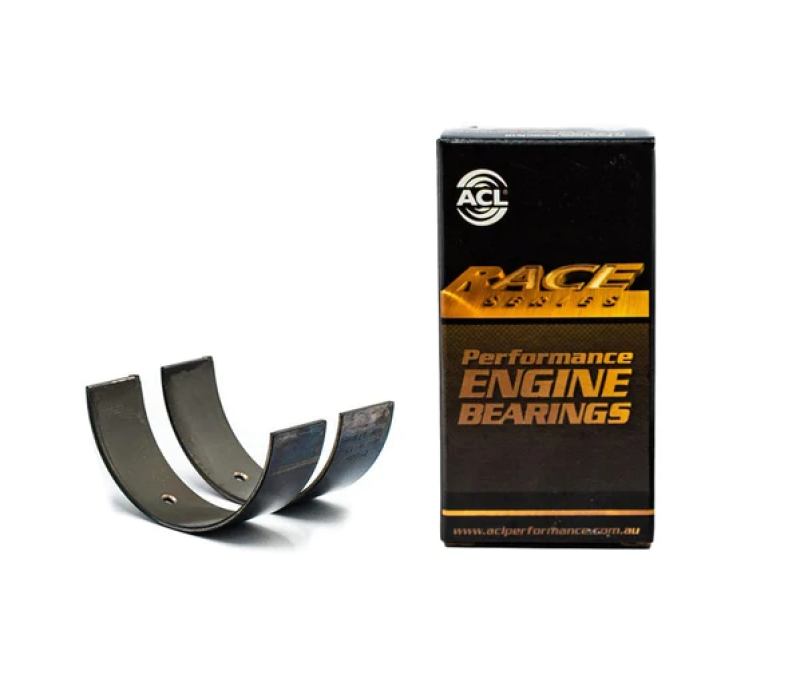

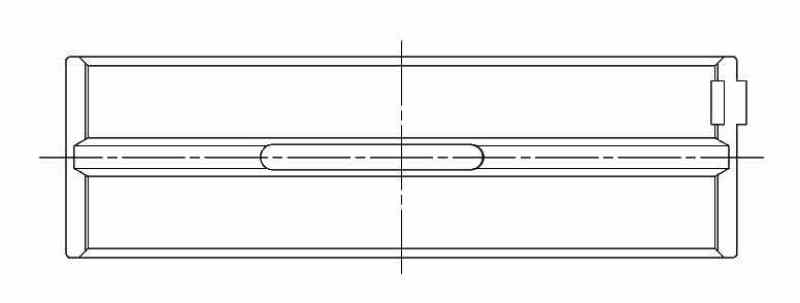

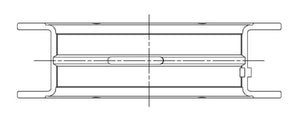

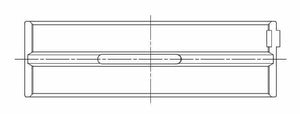

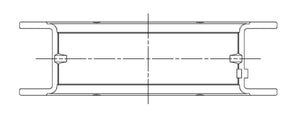

ACL Ford Prod V8 351C Race Series Engine Crankshaft Main Bearing Set - 5M1010H-20

• Series: ACL Race Series
• Bearing Type: Main bearing
• Shell Halves: Upper & lower
• Bearing Material Code: F780
• Sizes Offered: STD, 001, 010, 020
• Housing Bore (Tunnel) Diameter: 74.719–74.74 mm (2.9417–2.9425 in)
• Journal Diameter (STD size): 69.809–69.83 mm (2.7484–2.7492 in)
• Vertical Oil Clearance (STD size): 0.003–0.061 mm (0.0001–0.0024 in)
• Maximum Wall Thickness at Crown (STD size): 2.443 mm (0.0962 in)
• Bearing Width (max): 22.35 mm (0.88 in)

Engine Applications

• Ford 302ci (5.0L) Cleveland V8 OHV 2v (bore 101.6 mm, stroke 76.2 mm) — Ford Falcon Ute XA, Ford Falcon Ute XB
• Ford 351ci (5.8L) Cleveland V8 OHV 2v (bore 101.6 mm, stroke 88.9 mm) — Ford Falcon XE
