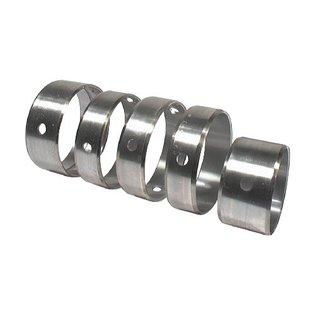

ACL Ford Prod. 4 1293-1993cc 1970 on Cam Bearings - 3C5816-STD

• Series: ACL
• Bearing Type: Camshaft bearing
• Bearing Material Code: F23
• Sizes Offered: STD
• Housing Bore (Tunnel) Diameter: 45.072–45.103 mm (1.7745–1.7757 in)
• Journal Diameter: 41.996–42.012 mm (1.6534–1.654 in)
• Vertical Oil Clearance: 0.038–0.111 mm (0.0015–0.0044 in)
• Maximum Wall Thickness at Crown: 1.511 mm (0.0595 in)
• Bearing Width (max): 20.24 mm (0.797 in)

Engine Applications

• Ford 122ci (2.0L) Pinto Inline4 SOHC 2v (bore 90.93 mm, stroke 76.96 mm)
• Ford 1294cc JCC TL13 Inline4 SOHC 2v (bore 79 mm, stroke 66 mm)
• Ford 1294cc JCT TL13 Inline4 SOHC 2v (bore 79 mm, stroke 66 mm)
• Ford 1593cc TL16G (GT) Inline4 SOHC 2v (bore 87.6 mm, stroke 66 mm)
• Ford 1593cc TL16H (High Comp.) Inline4 SOHC 2v (bore 87.6 mm, stroke 66 mm)
• Ford 1593cc TL16L (Low Comp.) Inline4 SOHC 2v (bore 87.6 mm, stroke 66 mm)
• Ford 1598cc TL16E Inline4 SOHC 2v (bore 81.3 mm, stroke 76.95 mm)
• Ford 1796cc TL18H Inline4 SOHC 2v (bore 86.2 mm, stroke 77 mm)
• Ford 1993cc Cosworth YB (CH20) Inline4 DOHC 4v Turbo (bore 90.82 mm, stroke 76.95 mm)
• Ford 1993cc TL20CFI Inline4 SOHC 2v (bore 90.8 mm, stroke 76.9 mm)
• Ford 1993cc TL20EFI Inline4 SOHC 2v (bore 90.8 mm, stroke 76.9 mm)
• Ford 1993cc TL20H (High Comp.) Inline4 SOHC 2v (bore 90.8 mm, stroke 76.9 mm)
• Ford 1993cc TL20L (Low Comp.) Inline4 SOHC 2v (bore 90.8 mm, stroke 76.9 mm) — Ford Cortina TD
