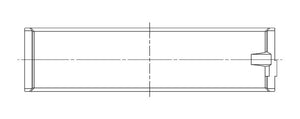

ACL Ford Coyote 5.0L V8 Standard Size High Performance Main Bearing Set - 5M5655H-STD

• Series: ACL Race Series
• Bearing Type: Main bearing
• Shell Halves: Upper
• Bearing Material Code: F780
• Sizes Offered: STD, .025, .25
• Housing Bore (Tunnel) Diameter: 72.4–72.423 mm (2.8504–2.8513 in)
• Journal Diameter: 67.48–67.506 mm (2.6567–2.6577 in)
• Maximum Wall Thickness at Crown: 2.443 mm (0.0962 in)
• Bearing Width (max): 19.25 mm (0.758 in)

Engine Applications

• Ford 302ci (5.0L) Coyote V8 DOHC 4v (bore 92.2 mm, stroke 92.7 mm)
