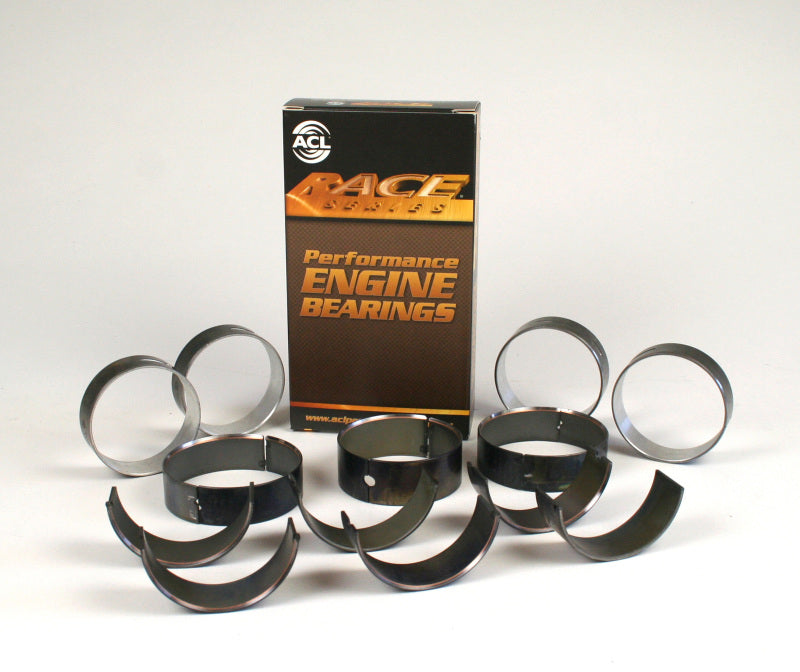

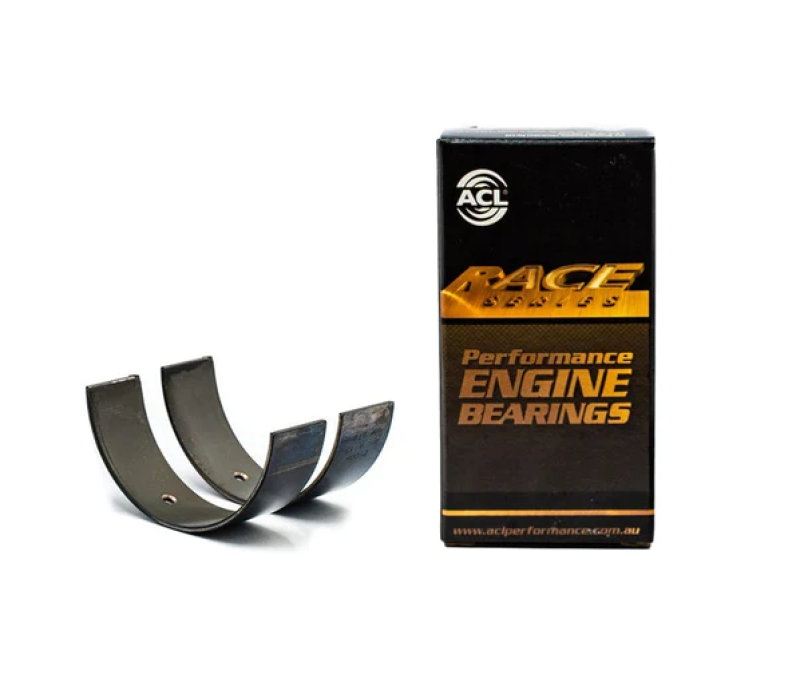

ACL Ford/Cosworth 2.0L (YB) .25mm Oversized Performance Rod Bearing Set - 4B2166H-.25

• Series: ACL Race Series
• Bearing Type: Connecting rod bearing
• Shell Halves: Identical halves
• Bearing Material Code: F781
• Sizes Offered: STD, .25, .50
• Housing Bore (Tunnel) Diameter: 55–55.02 mm (2.1654–2.1661 in)
• Journal Diameter (STD size): 51.99–52 mm (2.0468–2.0472 in)
• Vertical Oil Clearance (STD size): 0.008–0.054 mm (0.0003–0.0021 in)
• Maximum Wall Thickness at Crown (STD size): 1.496 mm (0.0589 in)
• Bearing Width (max): 20.12 mm (0.792 in)

Engine Applications

• Ford 1294cc JAC TL13 Inline4 SOHC 2v (bore 79 mm, stroke 66 mm)
• Ford 1294cc JCC TL13 Inline4 SOHC 2v (bore 79 mm, stroke 66 mm)
• Ford 1294cc JCT TL13 Inline4 SOHC 2v (bore 79 mm, stroke 66 mm)
• Ford 1593cc TL16G (GT) Inline4 SOHC 2v (bore 87.6 mm, stroke 66 mm)
• Ford 1593cc TL16H (High Comp.) Inline4 SOHC 2v (bore 87.6 mm, stroke 66 mm)
• Ford 1593cc TL16L (Low Comp.) Inline4 SOHC 2v (bore 87.6 mm, stroke 66 mm)
• Ford 1598cc TL16E Inline4 SOHC 2v (bore 81.3 mm, stroke 76.95 mm)
• Ford 1796cc TL18H Inline4 SOHC 2v (bore 86.2 mm, stroke 77 mm)
• Ford 1993cc Cosworth YB (CH20) Inline4 DOHC 4v Turbo (bore 90.82 mm, stroke 76.95 mm)
• Ford 1993cc TL20CFI Inline4 SOHC 2v (bore 90.8 mm, stroke 76.9 mm)
• Ford 1993cc TL20EFI Inline4 SOHC 2v (bore 90.8 mm, stroke 76.9 mm)
• Ford 1993cc TL20H (High Comp.) Inline4 SOHC 2v (bore 90.8 mm, stroke 76.9 mm)
• Ford 1993cc TL20L (Low Comp.) Inline4 SOHC 2v (bore 90.8 mm, stroke 76.9 mm) — Ford Cortina TD
