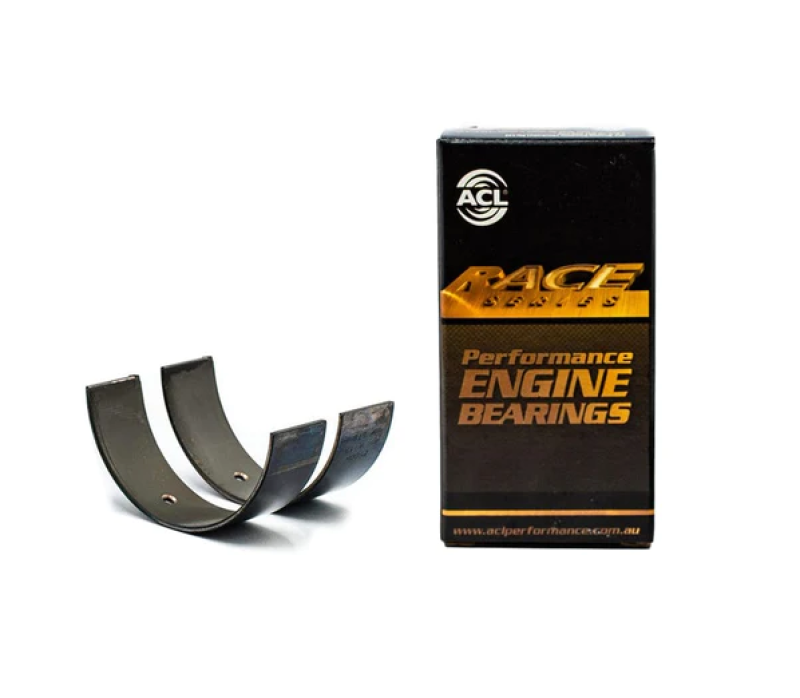

ACL Ford 4 BD Series 1099-1700cc 020 Oversized High Performance Rod Bearing Set - 4B1060H-020

• Series: ACL Race Series
• Bearing Type: Connecting rod bearing
• Shell Halves: Identical halves
• Bearing Material Code: F781
• Sizes Offered: STD, 001, 010, 020
• Housing Bore (Tunnel) Diameter: 52.927–52.94 mm (2.0837–2.0842 in)
• Journal Diameter (STD size): 49.2–49.213 mm (1.937–1.9375 in)
• Vertical Oil Clearance (STD size): 0.034–0.076 mm (0.0013–0.003 in)
• Maximum Wall Thickness at Crown (STD size): 1.84 mm (0.0724 in)
• Bearing Width (max): 19.17 mm (0.755 in)

Engine Applications

• Ford Cosworth BDA Series 1601cc Inline4 DOHC 4v
