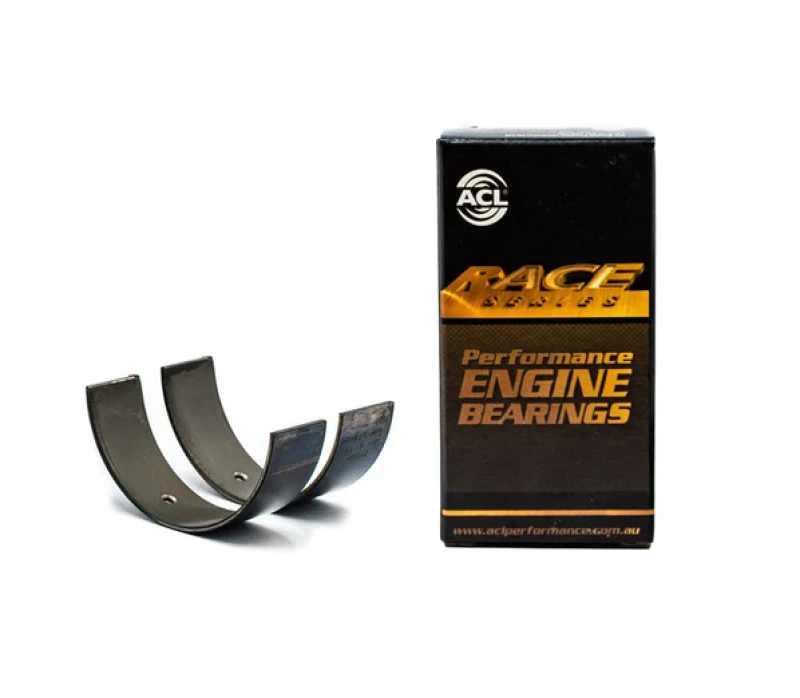

ACL Ford 4.6L SOHC /5.4L V8 Standard Size High Performance Rod Bearing Set - 8B1442H-STD

• Series: ACL Race Series
• Bearing Type: Connecting rod bearing
• Shell Halves: Identical halves
• Bearing Material Code: F781
• Sizes Offered: STD, .025, .25
• Housing Bore (Tunnel) Diameter: 56.865–56.886 mm (2.2388–2.2396 in)
• Journal Diameter: 52.984–53.002 mm (2.086–2.0867 in)
• Vertical Oil Clearance: 0.013–0.068 mm (0.0005–0.0027 in)
• Maximum Wall Thickness at Crown: 1.925 mm (0.0758 in)
• Bearing Width (max): 20.95 mm (0.825 in)

Engine Applications

• Ford 281ci (4.6L) (Romeo) V8 SOHC 2v (bore 90.2 mm, stroke 90 mm) — Ford Explorer UZ, Ford Explorer UT, Ford Explorer UX
• Ford 281ci (4.6L) (Romeo) V8 SOHC 3v (bore 90.2 mm, stroke 90 mm)
• Ford 281ci (4.6L) (Windsor) V8 SOHC 2v (bore 90.2 mm, stroke 90 mm)
• Ford 281ci (4.6L) InTech V8 DOHC 4v (bore 90.2 mm, stroke 90 mm) — Ford Mustang Cobra
• Ford 281ci (4.6L) Triton (Romeo) V8 SOHC 2v (bore 90.2 mm, stroke 90 mm)
• Ford 281ci (4.6L) Triton (Romeo) V8 SOHC 3v (bore 90.2 mm, stroke 90 mm)
• Ford 281ci (4.6L) Triton (Windsor) V8 SOHC 2v (bore 90.2 mm, stroke 90 mm)
• Ford 281ci (4.6L) V8 DOHC 4v (bore 90.2 mm, stroke 90 mm)
• Ford 281ci (4.6L) V8 DOHC 4v Supercharged (bore 90.2 mm, stroke 90 mm)
• Ford 302ci (5.0L) Coyote V8 DOHC 4v (bore 92.2 mm, stroke 92.7 mm)
• Ford 330ci (5.4L) (Windsor) V8 SOHC 2v Supercharged (bore 90.2 mm, stroke 105.8 mm)
• Ford 330ci (5.4L) InTech V8 DOHC 4v (bore 90.2 mm, stroke 105.7 mm)
• Ford 330ci (5.4L) V8 (Alum. Block) (GT) DOHC 4v Supercharged (bore 90.2 mm, stroke 105.8 mm)
• Ford 330ci (5.4L) V8 (CI Block) (GT500) DOHC 4v Supercharged (bore 90.2 mm, stroke 105.7 mm)
• Ford 330ci (5.4L) V8 SOHC 2v (bore 90.2 mm, stroke 105.8 mm) — Ford F250/F350 RN
• Ford 330ci (5.4L) V8 SOHC 3v (bore 90.2 mm, stroke 105.8 mm) — Ford LTD BF
• Ford 5.0L (Australia) V8 DOHC 4v S/Charged Boss 315 (bore 92.2 mm, stroke 92.7 mm) — FPV GS FG
• Ford 5.0L (Australia) V8 DOHC 4v S/Charged Boss 335 (bore 92.2 mm, stroke 92.7 mm) — FPV GT FG, FPV GT-E FG
• Ford 5.4L (Australia) V8 DOHC 4v Boss 260 (bore 90.2 mm, stroke 105.8 mm) — Ford Falcon BA, Ford Falcon BA II, Ford Falcon BF, Ford Falcon BF II, Ford Falcon Ute BF, Ford Falcon Ute BF II, Ford Falcon Ute BF III
• Ford 5.4L (Australia) V8 DOHC 4v Boss 290 (bore 90.2 mm, stroke 105.8 mm) — FPV GT BF II, FPV GT BF, FPV GT BA II, FPV GT BA, FPV GT-P BA, FPV GT-P BA II, FPV Pursuit BA, FPV Pursuit BA II, FPV Pursuit BF
• Ford 5.4L (Australia) V8 DOHC 4v Boss 302 (bore 90.2 mm, stroke 105.8 mm) — FPV GT BF II
• Ford 5.4L (Australia) V8 DOHC 4v Boss 315 (bore 90.2 mm, stroke 105.8 mm) — FPV GT FG
