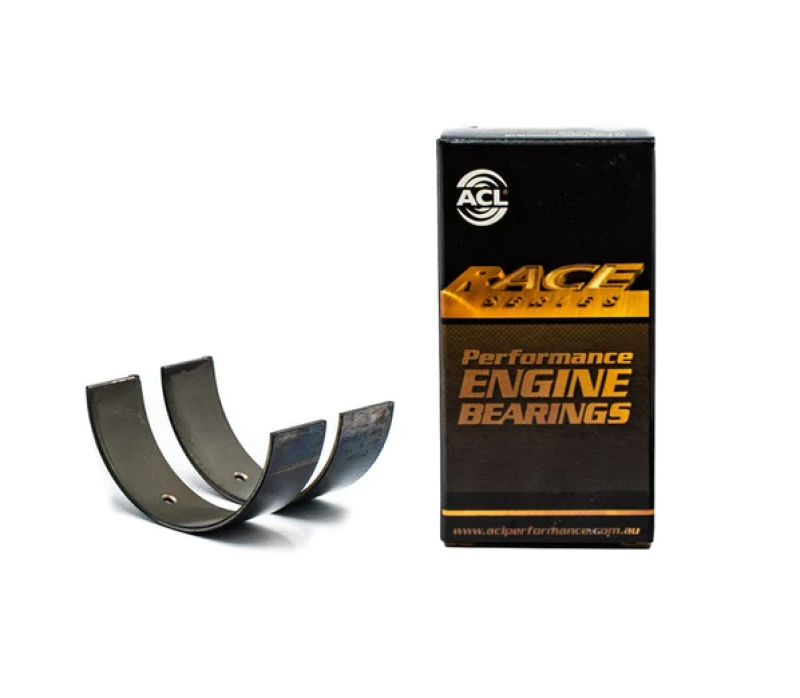

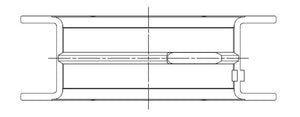

ACL Ford 4 2300 (Single Spark Plug engines) Race Series Engine Crankshaft Main Bearing Set - 5M1117H-01

• Series: ACL Race Series
• Bearing Type: Main bearing
• Shell Halves: Upper
• Bearing Material Code: F780
• Sizes Offered: STD, 001, 010, 020
• Housing Bore (Tunnel) Diameter: 65.791–65.811 mm (2.5902–2.591 in)
• Journal Diameter (STD size): 60.914–60.935 mm (2.3982–2.399 in)
• Vertical Oil Clearance (STD size): 0.006–0.063 mm (0.0002–0.0025 in)
• Maximum Wall Thickness at Crown (STD size): 2.425 mm (0.0955 in)
• Bearing Width (max): 24.13 mm (0.95 in)

Engine Applications

• Ford 121ci (2.0L) Lima Inline4 SOHC 2v (bore 89.3 mm, stroke 79.4 mm)
• Ford 140ci (2.3L) Lima Inline4 SOHC 2v (bore 96 mm, stroke 79.4 mm)
• Ford 140ci (2.3L) Lima Inline4 SOHC 2v Turbo (bore 96 mm, stroke 79.4 mm)
