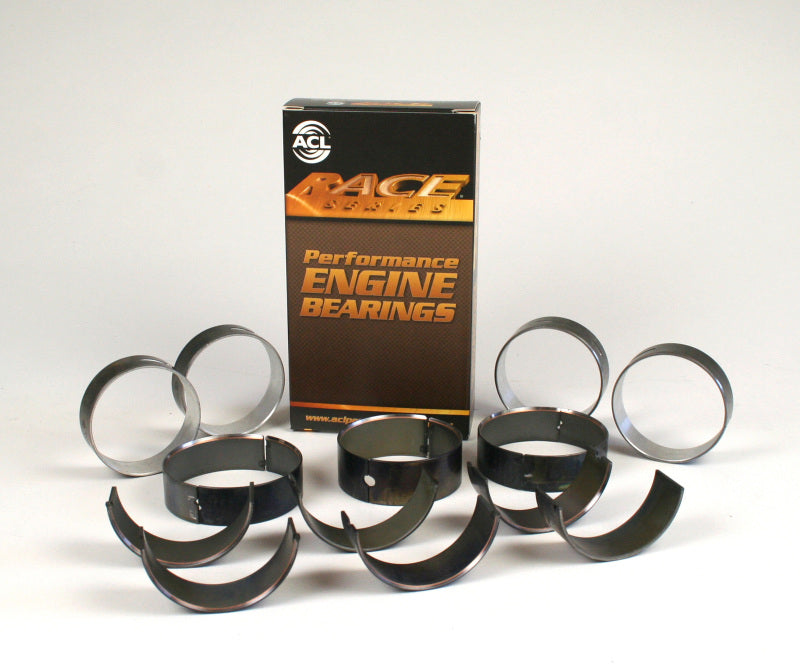

ACL Chevy V8 LT1/LT4/L86 Race Series .010 Oversized High Performance Main Bearing Set - 5M7292H-010

• Series: ACL Race Series
• Bearing Type: Main bearing
• Shell Halves: Upper & lower
• Bearing Material Code: F780
• Sizes Offered: STD, 001, 010, 020
• Housing Bore (Tunnel) Diameter: 69.873–69.887 mm (2.7509–2.7515 in)
• Journal Diameter (STD size): 64.993–65.007 mm (2.5588–2.5593 in)
• Maximum Wall Thickness at Crown (STD size): 2.43 mm (0.0957 in)
• Bearing Width (max): 26.1 mm (1.028 in)

Engine Applications

• Chevrolet 376ci (6.2L) L86 V8 OHV 2v (bore 103.25 mm, stroke 92 mm)
• Chevrolet 376ci (6.2L) LT1 V8 OHV 2v (bore 103.25 mm, stroke 92 mm)
• Chevrolet 376ci (6.2L) LT4 V8 OHV 2v (bore 103.25 mm, stroke 92 mm)
