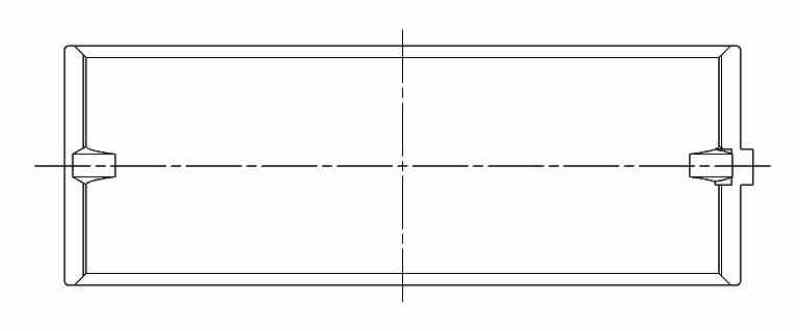

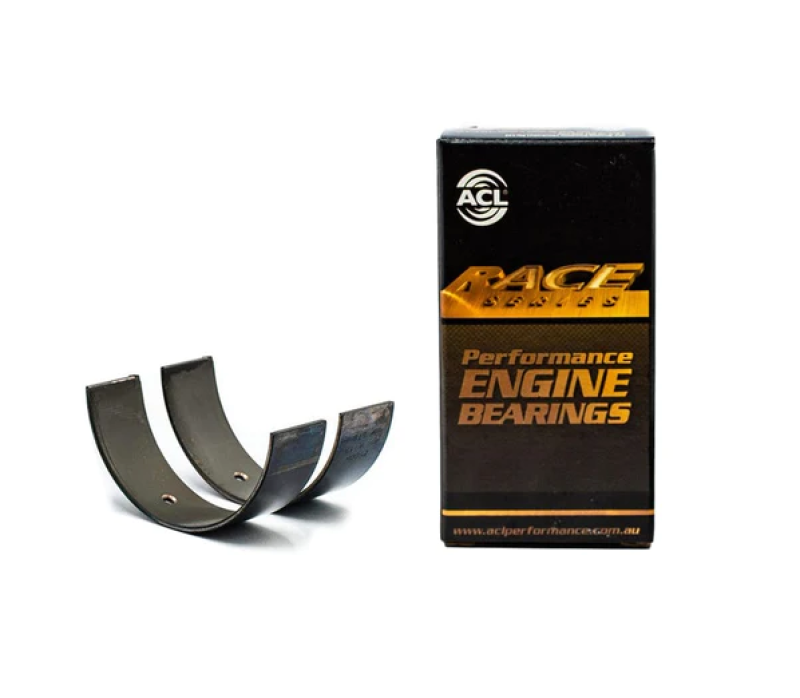

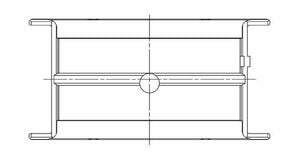

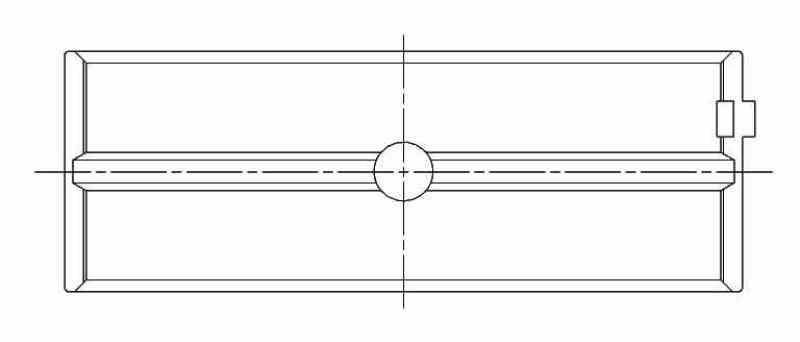

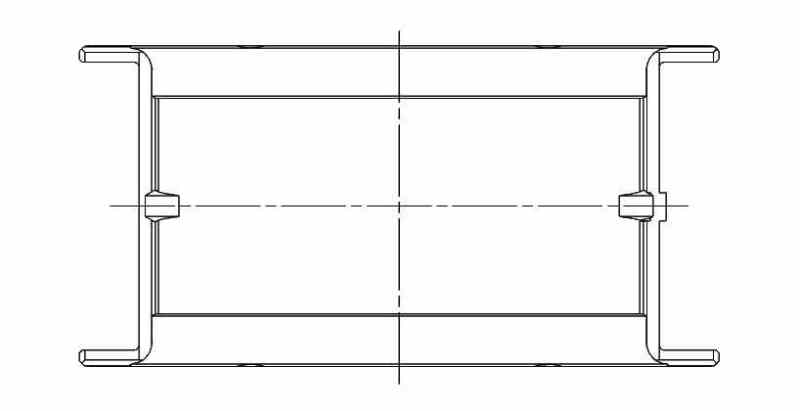

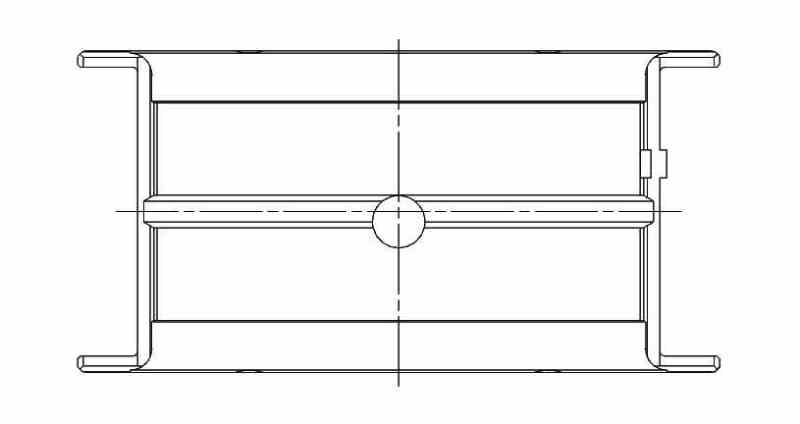

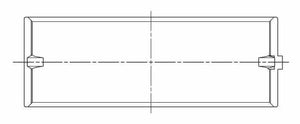

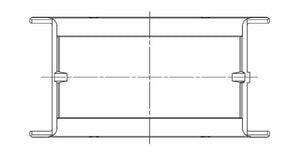

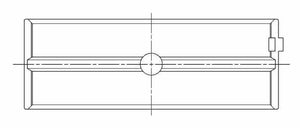

ACL Chevrolet V8 396/402/427/454 Race Series Standard Size Main Bearing Set with Extra Oil Clearance - 5M829HX-STD

• Series: ACL Race Series
• Bearing Type: Main bearing
• Shell Halves: Upper & lower
• Bearing Material Code: F780
• Sizes Offered: STD
• Housing Bore (Tunnel) Diameter: 74.6–74.625 mm (2.937–2.938 in)
• Journal Diameter: 69.804–69.83 mm (2.7482–2.7492 in)
• Vertical Oil Clearance: 0.052–0.119 mm (0.002–0.0047 in)
• Maximum Wall Thickness at Crown: 2.359 mm (0.0929 in)
• Bearing Width (max): 26.5 mm (1.043 in)

Engine Applications

• Chevrolet 366ci (6.0L) Big Block V8 OHV 2v (bore 100.01 mm, stroke 95.76 mm)
• Chevrolet 396ci (6.5L) Big Block V8 OHV 2v (bore 103.98 mm, stroke 95.76 mm)
• Chevrolet 402ci (6.6L) Big Block V8 OHV 2v (bore 104.78 mm, stroke 95.5 mm)
• Chevrolet 427ci (7.0L) Big Block V8 OHV 2v (bore 107.95 mm, stroke 95.76 mm)
• Chevrolet 454ci (7.4L) Big Block V8 OHV 2v (bore 107.95 mm, stroke 101.6 mm)
