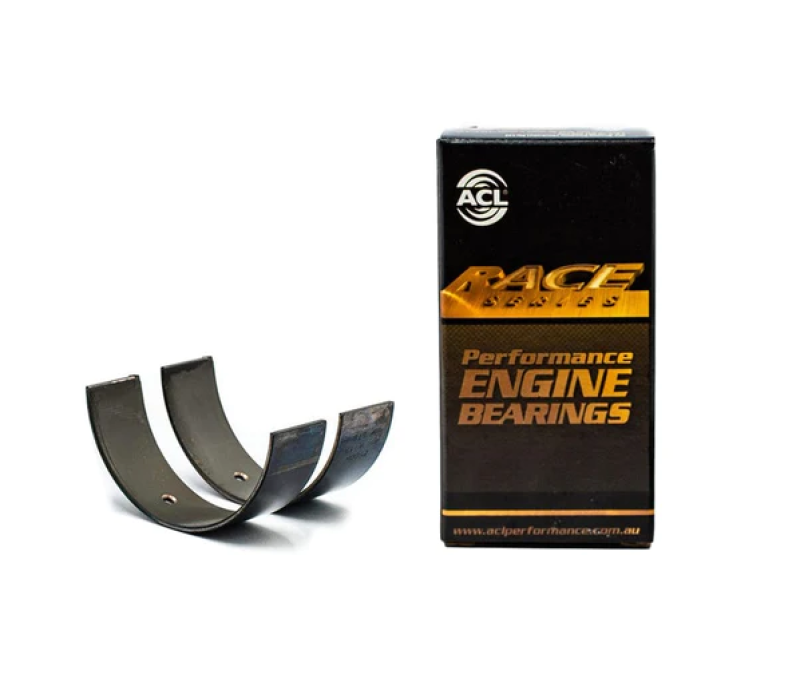

ACL BMC Mini Inline 4 (997cc, 998cc) Standard Size High Performance Rod Bearing Set - 4B2201H-STD

• Series: ACL Race Series
• Bearing Type: Connecting rod bearing
• Shell Halves: Identical halves
• Bearing Material Code: F781
• Sizes Offered: STD, .025, .25
• Housing Bore (Tunnel) Diameter: 44.971–44.983 mm (1.7705–1.771 in)
• Journal Diameter: 41.285–41.298 mm (1.6254–1.6259 in)
• Maximum Wall Thickness at Crown: 1.824 mm (0.0718 in)
• Bearing Width (max): 22.35 mm (0.88 in)

Engine Applications

• Leyland 12YD 1275cc Inline4 OHV 2v (bore 70.64 mm, stroke 81.33 mm)
• Leyland A Series 1071cc Inline4 OHV 2v (bore 70.64 mm, stroke 61.91 mm)
• Leyland A Series 1098cc Inline4 OHV 2v (bore 64.58 mm, stroke 83.82 mm) — Leyland Mini Moke, Leyland Mini
• Leyland A Series 1275cc Inline4 OHV 2v (bore 70.61 mm, stroke 81.28 mm) — Leyland Mini
• Leyland A Series 848cc Inline4 OHV 2v (bore 62.94 mm, stroke 68.26 mm) — Morris Mini
• Leyland A Series 948cc Inline4 OHV 2v (bore 62.94 mm, stroke 76.2 mm) — Austin Healey Sprite MK2
• Leyland A Series 970cc Inline4 OHV 2v (bore 70.61 mm, stroke 61.93 mm)
• Leyland A Series 997cc Inline4 OHV 2v (bore 62.43 mm, stroke 81.28 mm) — Morris Mini Cooper
• Leyland A Series 998cc Inline4 OHV 2v (bore 64.58 mm, stroke 76.2 mm) — Leyland Mini
• Leyland APJM 948cc Inline4 OHV 2v (bore 62.94 mm, stroke 76.2 mm)
• Leyland BM7 848cc Inline4 OHV 2v (bore 62.94 mm, stroke 68.26 mm)
