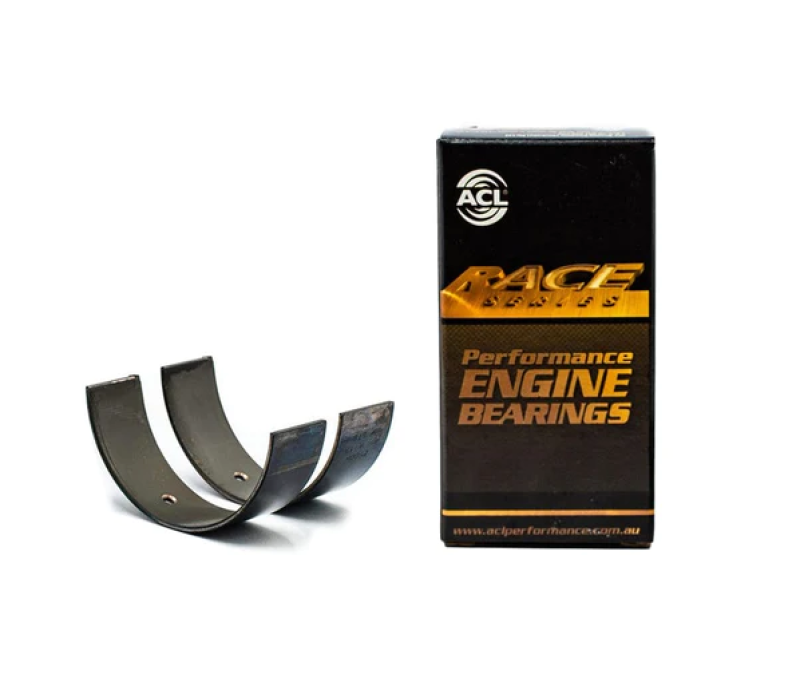

ACL Audi A3/A4/A6 -VW Jetta/Golf Passat Standard Size High Performance Rod Bearing Set - 4B1609HX-STD

• Series: ACL Race Series
• Bearing Type: Connecting rod bearing
• Shell Halves: Identical halves
• Bearing Material Code: F781
• Sizes Offered: STD
• Housing Bore (Tunnel) Diameter: 50.6–50.619 mm (1.9921–1.9929 in)
• Journal Diameter: 47.758–47.778 mm (1.8802–1.881 in)
• Vertical Oil Clearance: 0.038–0.093 mm (0.0015–0.0037 in)
• Maximum Wall Thickness at Crown: 1.392 mm (0.0548 in)
• Bearing Width (max): 19 mm (0.748 in)

Engine Applications

• Audi AEH 1595cc Inline4 SOHC 2v (bore 81 mm, stroke 77.4 mm) — Audi A3 Series I
• Audi AFN 1896cc Inline4 SOHC 2v Turbo Diesel (bore 79.5 mm, stroke 95.5 mm)
• Audi AHF 1896cc Inline4 SOHC 2v Turbo Diesel (bore 79.5 mm, stroke 95.5 mm)
• Audi AHU 1896cc Inline4 SOHC 2v Turbo Diesel (bore 79.5 mm, stroke 95.5 mm)
• Audi AKL 1595cc Inline4 SOHC 2v (bore 81 mm, stroke 77.4 mm)
• Audi ALT 1984cc Inline 4 DOHC 5v (bore 82.5 mm, stroke 92.8 mm) — Audi A4 B7
• Audi AMB 1781cc Inline4 DOHC 5v Turbo (bore 81 mm, stroke 86.4 mm)
• Audi APF 1595cc Inline4 SOHC 2v (bore 81 mm, stroke 77.4 mm)
• Audi ARX 1781cc Inline4 DOHC 5v Turbo (bore 81 mm, stroke 86.4 mm)
• Audi ARY 1781cc Inline4 DOHC 5v Turbo (bore 81 mm, stroke 86.4 mm)
• Audi ASV 1896cc Inline4 SOHC 2v Turbo Diesel (bore 79.5 mm, stroke 95.5 mm)
• Audi AUM 1781cc Inline4 DOHC 5v Turbo (bore 81 mm, stroke 86.4 mm)
• Audi AUQ 1781cc Inline4 DOHC 5v Turbo (bore 81 mm, stroke 86.4 mm) — Audi TT Series I
• Audi AVG 1896cc Inline4 SOHC 2v Turbo Diesel (bore 79.5 mm, stroke 95.5 mm)
• Audi AVJ 1781cc Inline4 DOHC 5v Turbo (bore 81 mm, stroke 86.4 mm) — Audi A4 B6
• Audi AWA 1984cc Inline4 DOHC 5v (bore 82.5 mm, stroke 92.8 mm)
• Audi AWT 1781cc Inline4 DOHC 5v Turbo (bore 81 mm, stroke 86.4 mm)
• Audi AXW 1984cc Inline4 DOHC 4v (bore 82.5 mm, stroke 92.8 mm) — Audi A3 8P
• Audi AXX 1984cc Inline4 DOHC 4v Turbo (bore 82.5 mm, stroke 92.8 mm) — Audi A3 8P
• Audi BEX 1781cc Inline4 DOHC 5v Turbo (bore 81 mm, stroke 86.4 mm)
• Audi BFB 1781cc Inline4 DOHC 5v Turbo (bore 81 mm, stroke 86.4 mm) — Audi A4 B7
• Audi BGB 1984cc Inline4 DOHC 4v Turbo (bore 82.5 mm, stroke 92.8 mm) — Audi A4 B7
• Audi BLR 1984cc Inline4 DOHC 4v (bore 82.5 mm, stroke 92.8 mm)
• Audi BLX 1984cc Inline4 DOHC 4v (bore 82.5 mm, stroke 92.8 mm)
• Audi BLY 1984cc Inline4 DOHC 4v (bore 82.5 mm, stroke 92.8 mm)
• Audi BMB 1984cc Inline4 DOHC 4v (bore 82.5 mm, stroke 92.8 mm) — Audi A3 8P
• Audi BPG 1984cc Inline4 DOHC 4v Turbo (bore 82.5 mm, stroke 92.8 mm)
• Audi BPJ 1984cc Inline4 DOHC 4v Turbo (bore 82.5 mm, stroke 92.8 mm)
• Audi BPY 1984cc Inline4 DOHC 4v Turbo (bore 82.5 mm, stroke 92.8 mm)
• Audi BUL 1984cc Inline4 DOHC 4v Turbo (bore 82.5 mm, stroke 92.8 mm)
• Audi BVY 1984cc Inline4 DOHC 4v (bore 82.5 mm, stroke 95.9 mm)
• Audi BVZ 1984cc Inline4 DOHC 4v (bore 82.5 mm, stroke 92.8 mm)
• Audi BWA 1984cc Inline4 DOHC 4v Turbo (bore 82.5 mm, stroke 92.8 mm) — Audi TT 8J
• Audi BWE 1984cc Inline4 DOHC 4v Turbo (bore 82.5 mm, stroke 92.8 mm) — Audi A4 B7
• Audi BWT 1984cc Inline4 DOHC 4v Turbo (bore 82.5 mm, stroke 92.8 mm)
• Audi BYK 1984cc Inline4 DOHC 4v Turbo (bore 82.5 mm, stroke 92.8 mm)
• Volkswagen 2E 1984cc Inline4 SOHC 2v (bore 82.5 mm, stroke 92.8 mm) — Volkswagen Golf A3 (Mk3)
• Volkswagen AAM 1781cc Inline4 SOHC 2v (bore 81 mm, stroke 86.4 mm)
• Volkswagen ABS 1781cc Inline4 SOHC 2v (bore 81 mm, stroke 86.4 mm) — Seat Cordoba
• Volkswagen AFN 1896cc Inline4 SOHC 2v Turbo Diesel (bore 79.5 mm, stroke 95.5 mm)
