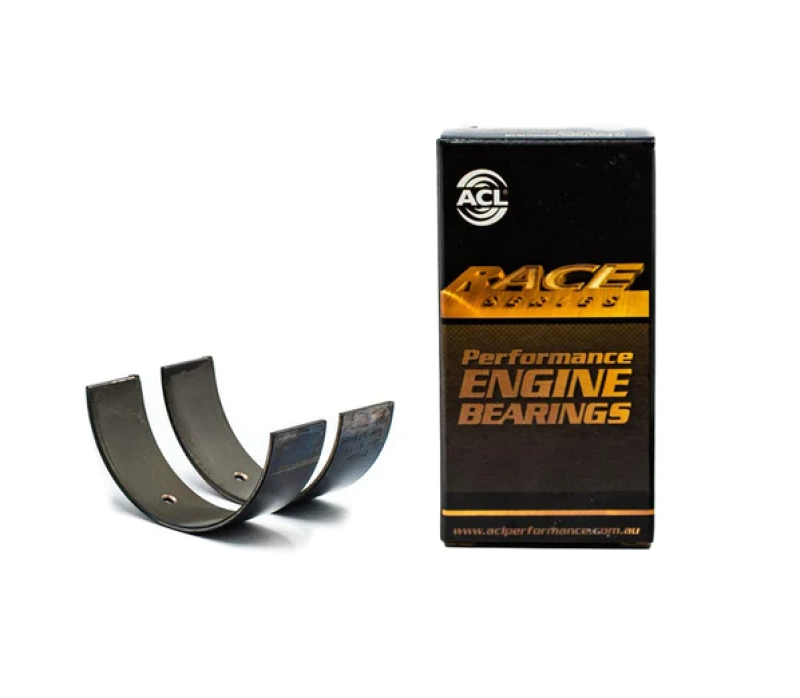

ACL Alfa Romeo 1570/1779/1962cc Engine Connecting Rod Bearing Set - 4B1110H-.25

• Series: ACL Race Series
• Bearing Type: Connecting rod bearing
• Shell Halves: Identical halves
• Bearing Material Code: F781
• Sizes Offered: STD, .25
• Housing Bore (Tunnel) Diameter: 53.693–53.708 mm (2.1139–2.1145 in)
• Journal Diameter (STD size): 49.987–50 mm (1.968–1.9685 in)
• Vertical Oil Clearance (STD size): 0.021–0.065 mm (0.0008–0.0026 in)
• Maximum Wall Thickness at Crown (STD size): 1.836 mm (0.0723 in)
• Bearing Width (max): 23.44 mm (0.923 in)

Engine Applications

• Alfa Romeo AR00512 1962cc Inline4 DOHC 2v (bore 84 mm, stroke 88.5 mm)
• Alfa Romeo AR00515 1962cc Inline4 DOHC 2v (bore 84 mm, stroke 88.5 mm)
• Alfa Romeo AR00526 1570cc Inline4 DOHC 2v (bore 78 mm, stroke 82 mm)
• Alfa Romeo AR00526S 1570cc Inline4 DOHC 2v (bore 78 mm, stroke 82 mm)
• Alfa Romeo AR00536 1570cc Inline4 DOHC 2v (bore 78 mm, stroke 82 mm)
• Alfa Romeo AR00548 1779cc Inline4 DOHC 2v (bore 80 mm, stroke 88.5 mm)
• Alfa Romeo AR01212 1962cc Inline4 DOHC 2v (bore 84 mm, stroke 88 mm)
• Alfa Romeo AR01354 1779cc Inline4 DOHC 2v Turbo (bore 80 mm, stroke 88.5 mm)
• Alfa Romeo AR01544 1962cc Inline4 DOHC 2v (bore 84 mm, stroke 88.5 mm)
• Alfa Romeo AR01563 1570cc Inline4 DOHC 2v (bore 78 mm, stroke 82 mm)
• Alfa Romeo AR01588 1962cc Inline4 DOHC 2v (bore 84 mm, stroke 88.5 mm)
• Alfa Romeo AR01590 1962cc Inline4 DOHC 2v (bore 84 mm, stroke 88.5 mm)
• Alfa Romeo AR01600 1570cc Inline4 DOHC 2v (bore 78 mm, stroke 82 mm)
• Alfa Romeo AR01608 1779cc Inline4 DOHC 2v (bore 80 mm, stroke 88.5 mm)
• Alfa Romeo AR01608X 1779cc Inline4 DOHC 2v (bore 80 mm, stroke 88.5 mm)
• Alfa Romeo AR01615 1962cc Inline4 DOHC 2v (bore 84 mm, stroke 88.5 mm)
• Alfa Romeo AR01623 1962cc Inline4 DOHC 2v (bore 84 mm, stroke 88.5 mm)
• Alfa Romeo AR01655 1962cc Inline4 DOHC 2v (bore 84 mm, stroke 88.5 mm)
• Alfa Romeo AR01678 1779ccInline4 DOHC 2v (bore 80 mm, stroke 88.5 mm)
• Alfa Romeo AR01713 1962cc Inline4 DOHC 2v (bore 84 mm, stroke 88.5 mm)
• Alfa Romeo AR06100 1567cc Inline4 DOHC 2v (bore 78 mm, stroke 82 mm)
• Alfa Romeo AR06134 1779cc Inline4 DOHC 2v Turbo (bore 80 mm, stroke 88.5 mm)
• Alfa Romeo AR06158 1779cc Inline4 DOHC 2v Turbo (bore 80 mm, stroke 88.5 mm)
• Alfa Romeo AR06166 1962cc Inline4 DOHC 2v (bore 84 mm, stroke 88.5 mm)
• Alfa Romeo AR06168 1779cc Inline4 DOHC 2v (bore 80 mm, stroke 88.5 mm)
• Alfa Romeo AR06202 1779cc Inline4 DOHC 2v (bore 80 mm, stroke 88.5 mm)
• Alfa Romeo AR10548 1779cc Inline4 DOHC 2v (bore 80 mm, stroke 88.5 mm)
• Alfa Romeo AR11650 1570cc Inline4 DOHC 2v (bore 78 mm, stroke 82 mm)
• Alfa Romeo AR61101 1567cc Inline4 DOHC 2v (bore 78 mm, stroke 82 mm)
• Alfa Romeo AR61102 1779cc Inline4 DOHC 2v (bore 80 mm, stroke 88.5 mm)
• Alfa Romeo AR61201 1779cc Inline4 DOHC 2v (bore 80 mm, stroke 88.5 mm)
• Alfa Romeo AR61202 1779cc Inline4 DOHC 2v (bore 80 mm, stroke 88.5 mm)
• Alfa Romeo AR61203 1779cc Inline4 DOHC 2v Turbo (bore 80 mm, stroke 88.5 mm)
• Alfa Romeo AR67101 1773cc Inline4 DOHC 2v (bore 84 mm, stroke 80 mm)
• Alfa Romeo AR67102 1773cc Inline4 DOHC 2v (bore 84 mm, stroke 80 mm)
• Alfa Romeo AR67103 1748cc Inline4 DOHC 2v (bore 83.4 mm)
• Alfa Romeo AR67105 1748cc Inline4 DOHC 2v (bore 83.5 mm)
• Alfa Romeo AR67402 1748cc Inline4 DOHC 2v (bore 84 mm)
