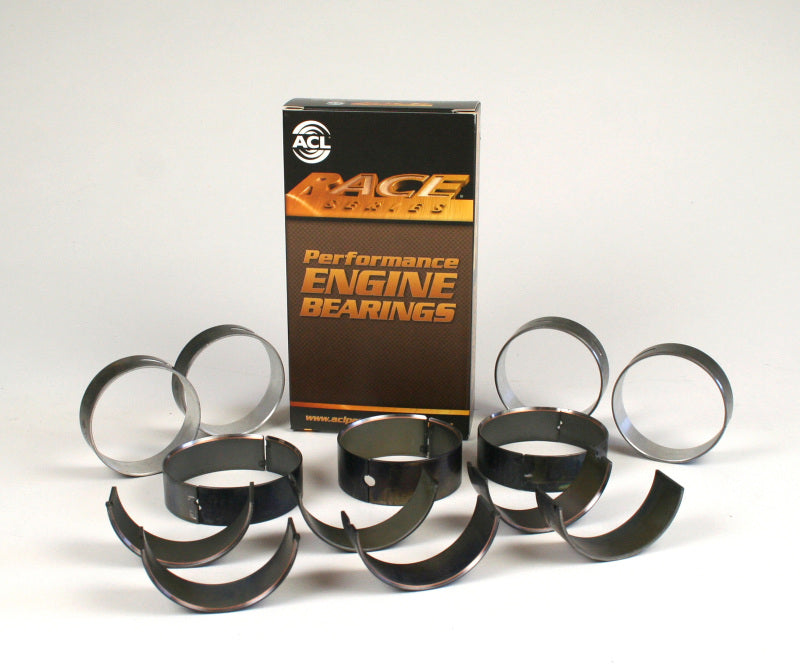

ACL Acura D16A1 Standard Size High Performance Rod Bearing Set - 4B1956H-STD

• Series: ACL Race Series
• Bearing Type: Connecting rod bearing
• Shell Halves: Identical halves
• Bearing Material Code: F781
• Sizes Offered: STD, .025, .25
• Housing Bore (Tunnel) Diameter: 48–48.02 mm (1.8898–1.8905 in)
• Journal Diameter: 44.98–45 mm (1.7709–1.7717 in)
• Maximum Wall Thickness at Crown: 1.499 mm (0.059 in)
• Bearing Width (max): 18.5 mm (0.728 in)

Engine Applications

• Honda B18A (USA) 1834cc Inline4 SOHC 4v (bore 81 mm, stroke 89 mm)
• Honda B20B4 1973cc Inline4 DOHC 4v (stroke 89 mm)
• Honda B20Z2 1973cc Inline4 DOHC 4v (bore 84 mm, stroke 89 mm)
• Honda D15B1 1493cc Inline4 SOHC 4v (bore 75 mm, stroke 84.5 mm)
• Honda D15B2 1493cc Inline4 SOHC 4v (bore 75 mm, stroke 84.5 mm)
• Honda D15B4 1493cc Inline4 SOHC 4v (bore 75 mm, stroke 84.5 mm) — Honda Civic 4th Gen.
• Honda D15B6 1493cc Inline4 SOHC 2v (bore 75 mm, stroke 84.5 mm)
• Honda D15B7 1493cc Inline4 SOHC 4v (bore 75 mm, stroke 84.5 mm) — Honda Civic 5th Gen.
• Honda D15B8 1493cc Inline4 SOHC 4v (bore 75 mm, stroke 84.5 mm)
• Honda D15Z1 1493cc Inline4 SOHC 4v VTEC (bore 75 mm, stroke 84.5 mm)
• Honda D15Z2 1493cc Inline4 SOHC 4v (bore 75 mm, stroke 84.5 mm) — Honda Civic 5th Gen.
• Honda D15Z3 1493cc Inline4 SOHC 4v (bore 75 mm, stroke 84.5 mm)
• Honda D15Z6 1493cc Inline4 SOHC 4v (bore 75 mm, stroke 84.5 mm)
• Honda D15Z8 1493cc Inline4 SOHC 4v (bore 75 mm, stroke 84.5 mm)
• Honda D16A1 1590cc Inline4 DOHC 4v (bore 75 mm, stroke 90 mm)
• Honda D16A3 1590cc Inline4 DOHC 4v (bore 75 mm, stroke 90 mm) — Honda Integra 1st Gen.
• Honda D16A6 1590cc Inline4 SOHC 4v (bore 75 mm, stroke 90 mm) — Honda Concerto
• Honda D16A7 1590cc Inline4 SOHC 4v (bore 75 mm, stroke 90 mm)
• Honda D16A8 1590cc Inline4 DOHC 4v (bore 75 mm, stroke 90 mm) — Honda Civic 5th Gen.
• Honda D16A9 1590cc Inline4 DOHC 4v (bore 75 mm, stroke 90 mm)
• Honda D16B2 1590cc Inline4 DOHC 4v (bore 75 mm, stroke 90 mm)
• Honda D16B6 1590cc Inline4 DOHC 4v (bore 75 mm, stroke 90 mm)
• Honda D16W1 1590cc Inline4 SOHC 4v (bore 75 mm, stroke 90 mm) — Honda HR-V
• Honda D16Y1 1590cc Inline4 SOHC 4v (bore 75 mm, stroke 90 mm) — Honda Civic 5th Gen.
• Honda D16Y4 1590cc Inline4 SOHC 4v (bore 75 mm, stroke 90 mm) — Honda Civic 6th Gen.
• Honda D16Y5 1590cc Inline4 SOHC 4v (bore 75 mm, stroke 90 mm) — Honda Civic 6th Gen.
• Honda D16Y7 1590cc Inline4 SOHC 4v (bore 75 mm, stroke 90 mm)
• Honda D16Y8 1590cc Inline4 SOHC 4v (bore 75 mm, stroke 90 mm) — Honda Civic 6th Gen.
• Honda D16Z2 1590cc Inline4 SOHC 4v (bore 75 mm, stroke 90 mm)
• Honda D16Z5 1590cc Inline4 DOHC 4v (bore 75 mm, stroke 90 mm)
• Honda D16Z6 1590cc Inline4 SOHC 2v (bore 75 mm, stroke 90 mm)
• Honda ZC 1590cc Inline4 DOHC 4v (bore 75 mm, stroke 90 mm)
• Honda ZC 1590cc Inline4 SOHC 2v (bore 75 mm, stroke 90 mm)
