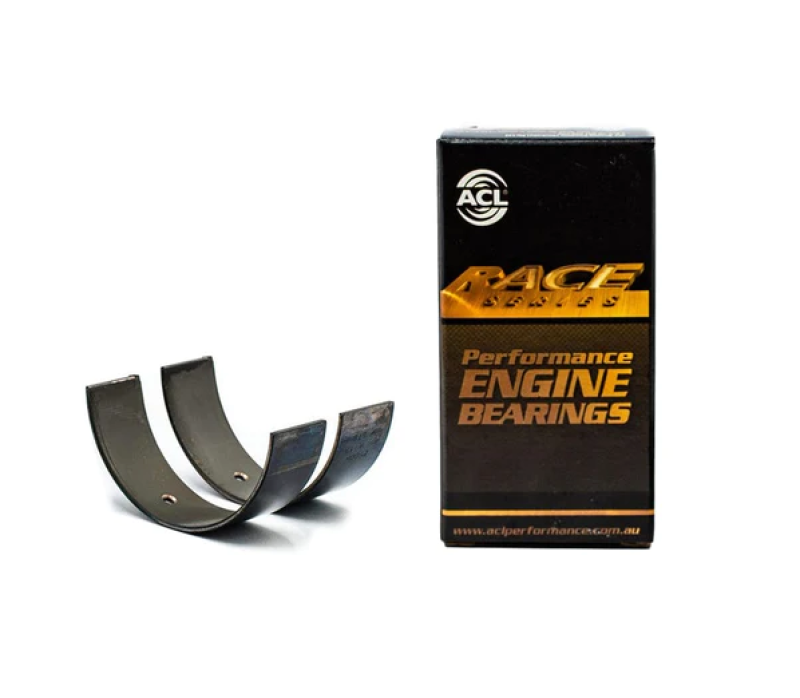

ACL Acura B17A1/B18A1/B18B1 0.025mm Oversized High Performance Rod Bearing Set - 4B1946H-.025

• Series: ACL Race Series
• Bearing Type: Connecting rod bearing
• Shell Halves: Identical halves
• Bearing Material Code: F781
• Sizes Offered: STD, .025, .25
• Housing Bore (Tunnel) Diameter: 48–48.024 mm (1.8898–1.8907 in)
• Journal Diameter (STD size): 44.98–45 mm (1.7709–1.7717 in)
• Maximum Wall Thickness at Crown (STD size): 1.504 mm (0.0592 in)
• Bearing Width (max): 19.5 mm (0.768 in)

Engine Applications

• Honda A18A 1829cc Inline4 SOHC 3v (bore 80 mm, stroke 91 mm) — Honda Prelude 2nd Gen.
• Honda A20A1 1955cc Inline4 SOHC 3v (bore 82.7 mm, stroke 91 mm)
• Honda A20A2 1955cc Inline4 SOHC 3v (bore 82.7 mm, stroke 91 mm) — Honda Accord 3rd Gen.
• Honda A20A3 1955cc Inline4 SOHC 3v (bore 82.7 mm, stroke 91 mm)
• Honda A20A4 1955cc Inline4 SOHC 3v (bore 82.7 mm, stroke 91 mm) — Honda Accord 3rd Gen.
• Honda B16A1 1595cc Inline4 DOHC 4v VTEC (bore 81 mm, stroke 77.4 mm)
• Honda B16A2 1595cc Inline4 DOHC 4v VTEC (bore 81 mm, stroke 77.4 mm) — Honda Civic 6th Gen.
• Honda B16A3 1595cc Inline4 DOHC 4v VTEC (bore 81 mm, stroke 77.4 mm)
• Honda B16A4 1595cc Inline4 DOHC 4v VTEC (bore 81 mm, stroke 77.4 mm)
• Honda B16A6 1595cc Inline4 DOHC 4v VTEC (bore 81 mm, stroke 77.4 mm)
• Honda B17A1 1678cc Inline4 DOHC 4v (bore 81 mm, stroke 81.4 mm)
• Honda B18A 1834cc Inline4 SOHC 4v (bore 81 mm, stroke 89 mm)
• Honda B18A1 (USA) 1834cc Inline4 DOHC 4v (bore 81 mm, stroke 89 mm) — Honda Integra 2nd Gen.
• Honda B18B1 1834cc Inline4 DOHC 4v (bore 81 mm, stroke 89 mm) — Honda Integra 3rd Gen.
• Honda B18B2 1834cc Inline4 DOHC 4v (bore 81 mm, stroke 89 mm) — Honda Integra 2nd Gen.
• Honda B20A3 1958cc Inline4 SOHC 3v (bore 81 mm, stroke 95 mm)
• Honda B20A4 1958cc Inline4 SOHC 3v (bore 81 mm, stroke 95 mm)
• Honda B20B3 1973cc Inline4 DOHC 4v (bore 84 mm, stroke 89 mm) — Honda CR-V 1st Gen.
• Honda B20B4 1973cc Inline4 DOHC 4v (stroke 89 mm)
• Honda B20B8 1973cc Inline4 DOHC 4v (bore 84 mm, stroke 89 mm)
• Honda B20Z2 1973cc Inline4 DOHC 4v (bore 84 mm, stroke 89 mm)
• Honda ES 1829cc Inline4 SOHC 3v (bore 80 mm, stroke 91 mm) — Honda Accord 2nd Gen.
• Honda ET 1829cc Inline4 SOHC 3v (bore 80 mm, stroke 91 mm) — Honda Accord 2nd Gen.
• Honda F18B 1850cc Inline4 SOHC 4v (bore 85 mm, stroke 81.5 mm)
• Honda F20B3 1997cc Inline4 SOHC 4v (bore 85 mm, stroke 88 mm)
• Honda F20B5 1997cc Inline4 SOHC 4v (bore 85 mm, stroke 88 mm)
• Honda F20B6 1997cc Inline4 SOHC 4v (bore 85 mm, stroke 88 mm)
