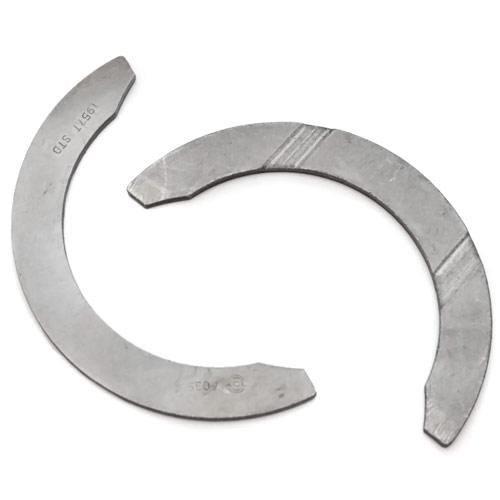

ACL 85-97 Suzuki 3 993cc Standard Size Thrust Washers - 1T8337-STD

• Series: ACL
• Bearing Type: Thrust washer
• Shell Halves: Identical halves
• Bearing Material Code: F250
• Sizes Offered: STD
• Housing Bore (Tunnel) Diameter: 67.7–67.9 mm (2.6653–2.6732 in)
• Journal Diameter: 52–52.25 mm (2.0472–2.0571 in)
• Bearing Width (max): 2.52 mm (0.099 in)

Engine Applications

• Chevrolet 1.0L S-TEC Inline4 SOHC 2v (bore 68.5 mm, stroke 67.5 mm)
• Daewoo 1.0L S-TEC Inline4 SOHC 2v (bore 68.5 mm, stroke 67.5 mm)
• Daewoo F8CV 796cc Inline3 OHV 2v (bore 68.5 mm, stroke 72 mm) — Daewoo Matiz M100, Daewoo Matiz M150
• Suzuki F6A 657cc Inline3 SOHC 4v (bore 65 mm, stroke 66 mm)
• Suzuki G10 993cc Inline3 OHV 2v (bore 74 mm, stroke 77 mm) — Suzuki Swift SA Series II
• Suzuki G10A 993cc Inline3 SOHC 2v (bore 74 mm, stroke 77 mm) — Suzuki Swift SF Series II
• Suzuki G10T 993cc Inline3 SOHC 2v Turbo (bore 74 mm, stroke 77 mm)
• Suzuki G13A 1324cc Inline4 SOHC 2v (bore 74 mm, stroke 77 mm) — Suzuki Swift SF
• Suzuki G13B 1298cc Inline 4 DOHC 4v (bore 74 mm, stroke 75.5 mm) — Suzuki Swift SA Series II, Suzuki Swift SF
• Suzuki G13BA 1298cc Inline4 SOHC 2v (bore 74 mm, stroke 75.5 mm) — Suzuki Swift SF Series II
• Suzuki G13BB 1298cc Inline4 SOHC 4v (bore 74 mm, stroke 75.5 mm) — Suzuki Carry FD
• Suzuki K6A 658cc Inline3 SOHC 2v (bore 68 mm, stroke 60.4 mm)
