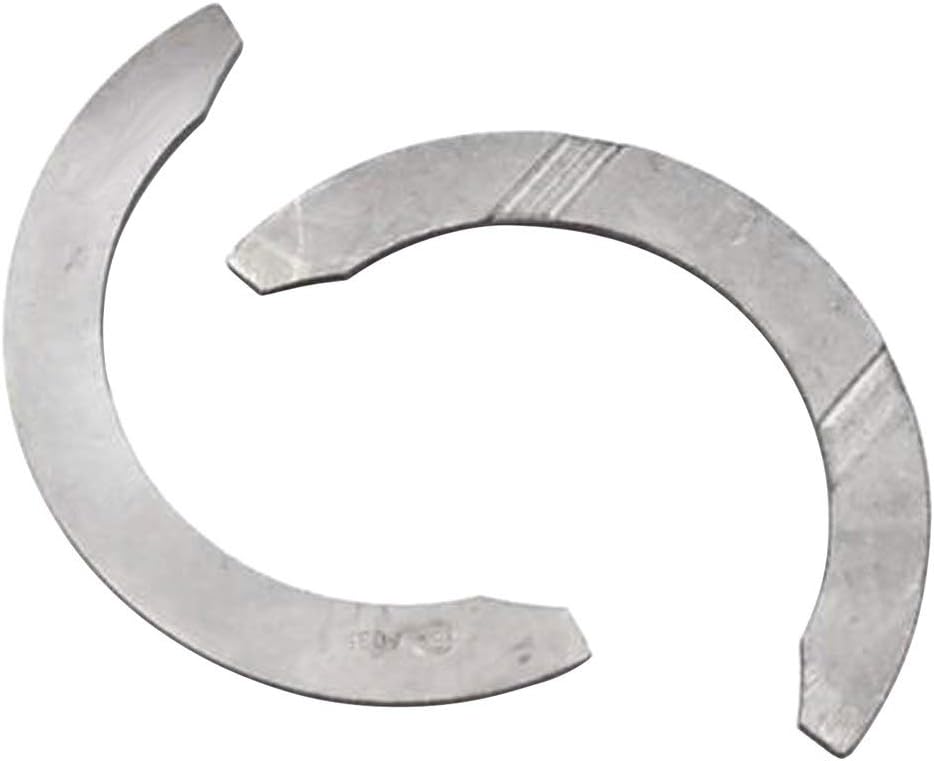

ACL 75-05 Volkswagen 1.0-1.9L Standard Size Thrust Washers - 2T1644-STD

• Series: ACL
• Bearing Type: Thrust washer
• Shell Halves: Upper & lower
• Bearing Material Code: F817
• Sizes Offered: STD
• Housing Bore (Tunnel) Diameter: 73–73.2 mm (2.874–2.8819 in)
• Journal Diameter: 59.5–59.7 mm (2.3425–2.3504 in)
• Bearing Width (max): 1.98 mm (0.078 in)

Engine Applications

• Audi 1Y 1896cc Inline4 SOHC 2v Diesel (bore 79.5 mm, stroke 95.5 mm)
• Audi 1Z 1896cc Inline4 SOHC 2v Turbo Diesel (bore 79.5 mm, stroke 95.5 mm)
• Audi 3A 1984cc Inline4 SOHC 2v (bore 82.5 mm, stroke 92.8 mm) — Audi 80 B3
• Audi 4B 1781cc Inline4 SOHC 2v (bore 81 mm, stroke 86.4 mm)
• Audi 6A 1984cc Inline4 DOHC 4v (bore 82.5 mm, stroke 92.8 mm)
• Audi AAD 1984cc Inline4 SOHC 2v (bore 82.5 mm, stroke 92.8 mm) — Audi 80 B3
• Audi AAE 1984cc Inline4 SOHC 2v (bore 82.5 mm, stroke 92.8 mm)
• Audi AAZ 1896cc Inline4 SOHC 2v Turbo Diesel (bore 79.5 mm, stroke 95.5 mm)
• Audi ABB 1595cc Inline4 SOHC 2v (bore 81 mm, stroke 77.4 mm)
• Audi ABK 1984cc Inline4 SOHC 2v (bore 82.5 mm, stroke 92.8 mm) — Audi 80 B4
• Audi ABM 1595cc Inline4 SOHC 2v (bore 81 mm, stroke 77.4 mm)
• Audi ABT 1984cc Inline4 SOHC 2v (bore 82.5 mm, stroke 92.8 mm)
• Audi ACE 1984cc Inline4 DOHC 4v (bore 82.5 mm, stroke 92.8 mm)
• Audi ADA 1595cc Inline4 SOHC 2v (bore 81 mm, stroke 77.4 mm)
• Audi ADP 1595cc Inline4 SOHC 2v (bore 81 mm, stroke 77.4 mm)
• Audi ADR 1781cc Inline4 DOHC 5v (bore 81 mm, stroke 86.4 mm) — Audi A4 B5
• Audi ADW 1984cc Inline4 SOHC 2v (bore 82.5 mm, stroke 92.8 mm)
• Audi AEB 1781cc Inline4 DOHC 5v Turbo (bore 81 mm, stroke 86.4 mm) — Audi A4 B5
• Audi AEH 1595cc Inline4 SOHC 2v (bore 81 mm, stroke 77.4 mm) — Audi A3 Series I
• Audi AFF 1896cc Inline4 SOHC 2v Turbo Diesel (bore 79.5 mm, stroke 95.5 mm)
• Audi AFN 1896cc Inline4 SOHC 2v Turbo Diesel (bore 79.5 mm, stroke 95.5 mm)
• Audi AFY 1781cc Inline4 SOHC 2v (bore 81 mm, stroke 86.4 mm)
• Audi AGN 1781cc Inline4 DOHC 5v (bore 81 mm, stroke 86.4 mm) — Audi A3 Series II
• Audi AGR 1896cc Inline4 SOHC 2v Turbo Diesel (bore 79.5 mm, stroke 95.5 mm)
• Audi AGU 1781cc Inline4 DOHC 5v Turbo (bore 81 mm, stroke 86.4 mm) — Audi A3 Series I, Audi A3 Series II
• Audi AHF 1896cc Inline4 SOHC 2v Turbo Diesel (bore 79.5 mm, stroke 95.5 mm)
• Audi AHH 1896cc Inline4 SOHC 2v Turbo Diesel (bore 79.5 mm, stroke 95.5 mm)
• Audi AHU 1896cc Inline4 SOHC 2v Turbo Diesel (bore 79.5 mm, stroke 95.5 mm)
• Audi AJL 1781cc Inline4 DOHC 5v Turbo (bore 81 mm, stroke 86.4 mm) — Audi A4 B5
• Audi AJM 1896cc Inline4 SOHC 2v Turbo Diesel (bore 79.5 mm, stroke 95.5 mm)
• Audi AJQ 1781cc Inline4 DOHC 5v Turbo (bore 81 mm, stroke 86.4 mm) — Audi TT Series I
• Audi AKL 1595cc Inline4 SOHC 2v (bore 81 mm, stroke 77.4 mm)
• Audi ALH 1896cc Inline4 SOHC 2v Turbo Diesel (bore 79.5 mm, stroke 95.5 mm)
• Audi AMB 1781cc Inline4 DOHC 5v Turbo (bore 81 mm, stroke 86.4 mm)
• Audi AMK 1781cc Inline4 DOHC 5v Turbo (bore 81 mm, stroke 86.4 mm) — Audi S3
• Audi ANB 1781cc Inline4 DOHC 5v Turbo (bore 81 mm, stroke 86.4 mm)
• Audi APF 1595cc Inline4 SOHC 2v (bore 81 mm, stroke 77.4 mm)
• Audi APG 1781cc Inline4 DOHC 5v (bore 81 mm, stroke 86.4 mm)
• Audi APP 1781cc Inline4 DOHC 5v Turbo (bore 81 mm, stroke 86.4 mm)
• Audi APT 1781cc Inline4 DOHC 5v (bore 81 mm, stroke 86.4 mm) — Audi A4 B5
