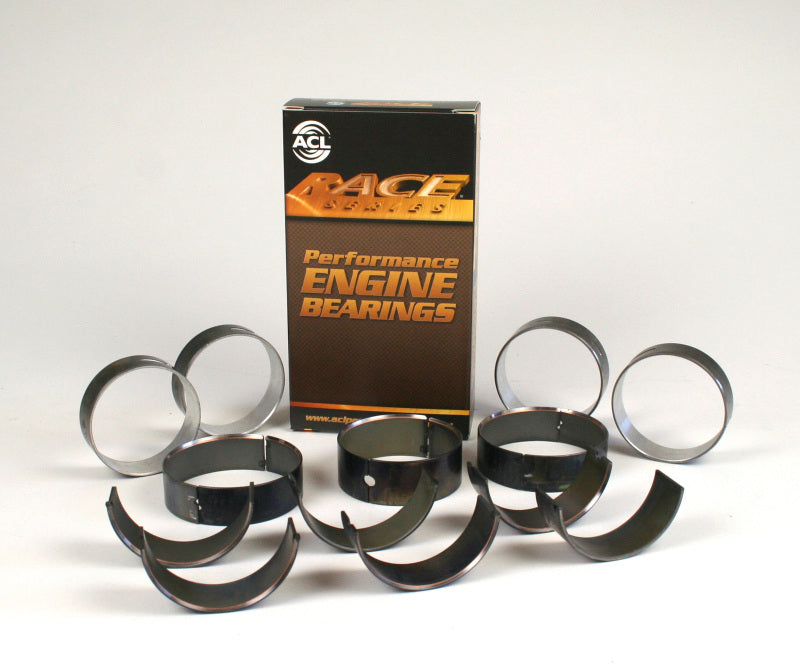

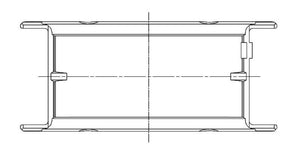

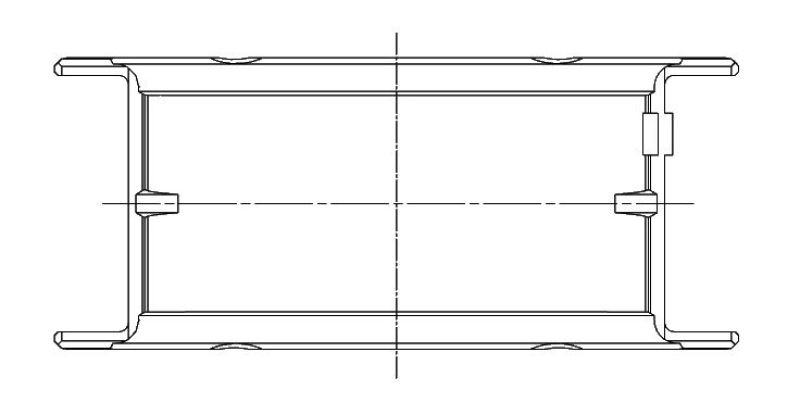

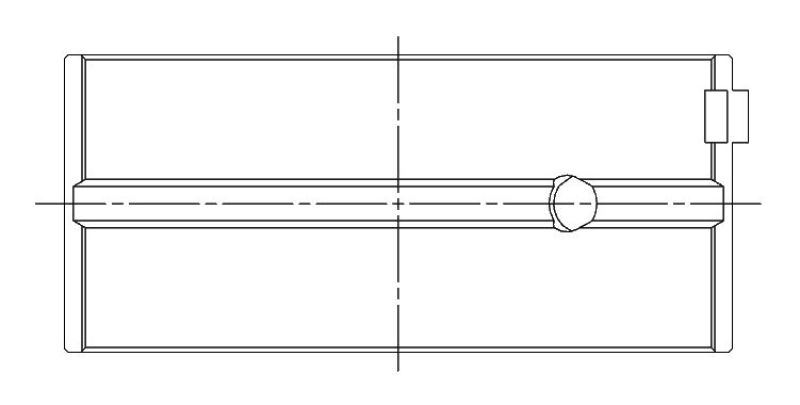

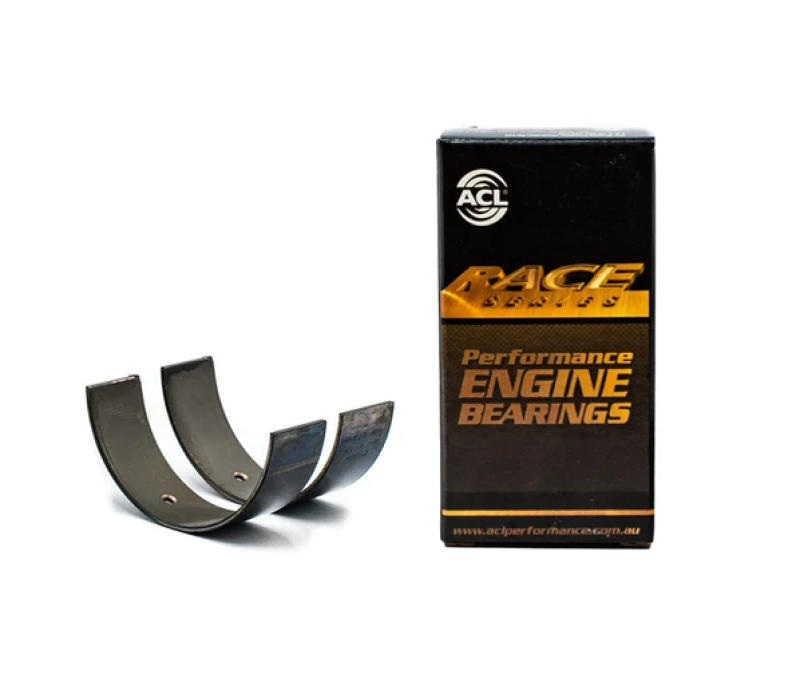

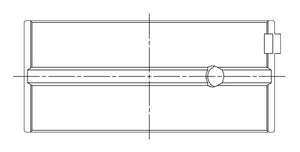

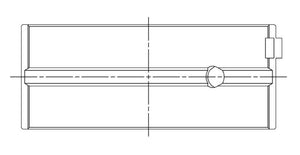

ACL 68-74 Nissan L16E/L18E 1595cc/1770cc STD Size High Perf Main Bearing Set w/.001 Oil Clearance - 5M1172HX-STD

• Series: ACL Race Series
• Bearing Type: Main bearing
• Shell Halves: Upper & lower
• Bearing Material Code: F780
• Sizes Offered: STD
• Housing Bore (Tunnel) Diameter: 58.645–58.658 mm (2.3089–2.3094 in)
• Journal Diameter: 54.942–54.955 mm (2.1631–2.1636 in)
• Maximum Wall Thickness at Crown: 1.819 mm (0.0716 in)
• Bearing Width (max): 26.1 mm (1.028 in)

Engine Applications

• Nissan L13 1296cc Inline4 SOHC 2v (bore 83 mm, stroke 59.9 mm)
• Nissan L14 1428cc Inline4 SOHC 2v (bore 83 mm, stroke 66 mm)
• Nissan L16 1595cc Inline4 SOHC 2v (bore 83 mm, stroke 73.3 mm) — Datsun Stanza
• Nissan L18 1770cc Inline4 SOHC 2v (bore 85 mm, stroke 78 mm) — Datsun 180B P610
• Nissan Z16 1595cc Inline4 SOHC 2v (bore 83 mm, stroke 73.7 mm)
• Nissan Z18 1770cc Inline4 SOHC 2v (bore 85 mm, stroke 78 mm)
• Nissan Z18E 1770cc Inline4 SOHC 2v (bore 85 mm, stroke 78 mm)
