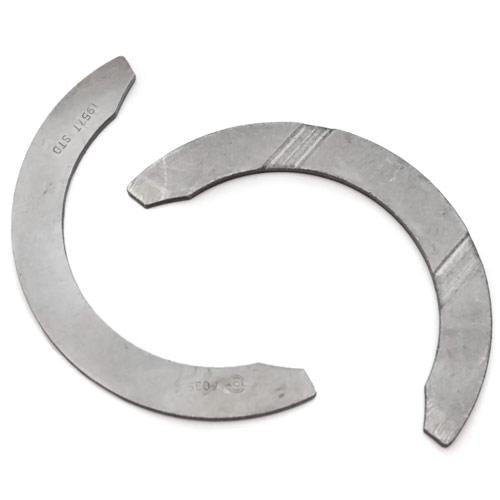

ACL 67-68 Toyota 4 1994CC 5R Standard Size Thrust Washers - 2T7962-STD

• Series: ACL
• Bearing Type: Thrust washer
• Shell Halves: Upper & lower
• Bearing Material Code: F817
• Sizes Offered: STD
• Housing Bore (Tunnel) Diameter: 79.75–80 mm (3.1398–3.1496 in)
• Journal Diameter: 65.5–66.25 mm (2.5787–2.6083 in)
• Bearing Width (max): 2.98 mm (0.117 in)

Engine Applications

• Toyota 2M 2253cc Inline6 SOHC 2v (bore 75 mm, stroke 85 mm) — Toyota Crown MS50
• Toyota 3M 1988cc Inline6 DOHC 2v (bore 75 mm, stroke 75 mm)
• Toyota 3R 1897cc Inline4 OHV 2v (bore 88 mm, stroke 78.9 mm) — Toyota Crown MS40
• Toyota 3R-B 1897cc Inline4 OHV 2v (bore 88 mm, stroke 78 mm)
• Toyota 3R-C 1897cc Inline4 OHV 2v (bore 88 mm, stroke 79 mm)
• Toyota 4M 2563cc Inline6 SOHC 2v (bore 80 mm, stroke 85 mm) — Toyota Cressida MX32, Toyota Cressida MX36
• Toyota 4M-E 2563cc Inline6 SOHC 2v (bore 80 mm, stroke 85 mm)
• Toyota 5M 2759cc Inline6 SOHC 2v (bore 83 mm, stroke 85 mm)
• Toyota 5M-E 2759cc Inline6 SOHC 2v (bore 83 mm, stroke 85 mm) — Toyota Cressida MX62
• Toyota 5M-GE 2759cc Inline6 DOHC 2v (bore 83 mm, stroke 85 mm) — Toyota Cressida MX62
• Toyota 5R 1994cc Inline4 OHV 2v (bore 88 mm, stroke 82 mm)
• Toyota 6M-GE 2954cc Inline6 DOHC 2v (bore 83 mm, stroke 91 mm)
• Toyota 7M-GE 2954cc Inline6 DOHC 4v (bore 83 mm, stroke 91 mm) — Toyota Soarer Z20
• Toyota 7M-GTE 2954cc Inline6 DOHC 4v Turbo (bore 83 mm, stroke 91 mm) — Toyota Soarer Z20
• Toyota M 1988cc Inline6 SOHC 2v (bore 75 mm, stroke 75 mm) — Toyota Crown MS50
