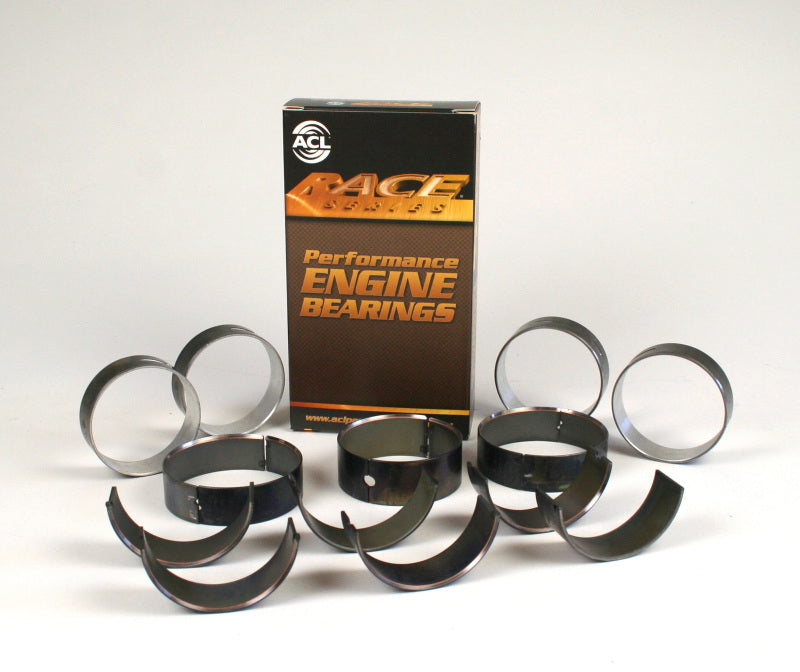

ACL 08+ Mitsubishi 4B11T Evo X Std Size High Perf w/ Extra Oil Clearance Main Bearing Se - 5M1237HX-STD

• Series: ACL Race Series
• Bearing Type: Main bearing
• Shell Halves: Upper & lower
• Bearing Material Code: F780
• Sizes Offered: STD
• Housing Bore (Tunnel) Diameter: 56–56.018 mm (2.2047–2.2054 in)
• Journal Diameter: 51.973–51.985 mm (2.0462–2.0466 in)
• Vertical Oil Clearance: 0.049–0.095 mm (0.0019–0.0037 in)
• Maximum Wall Thickness at Crown: 1.983 mm (0.0781 in)
• Bearing Width (max): 18 mm (0.709 in)

Engine Applications

• Mitsubishi 4B11T 1998cc Inline4 DOHC 4v Turbo (bore 86 mm, stroke 86 mm) — Mitsubishi Lancer Evolution X
