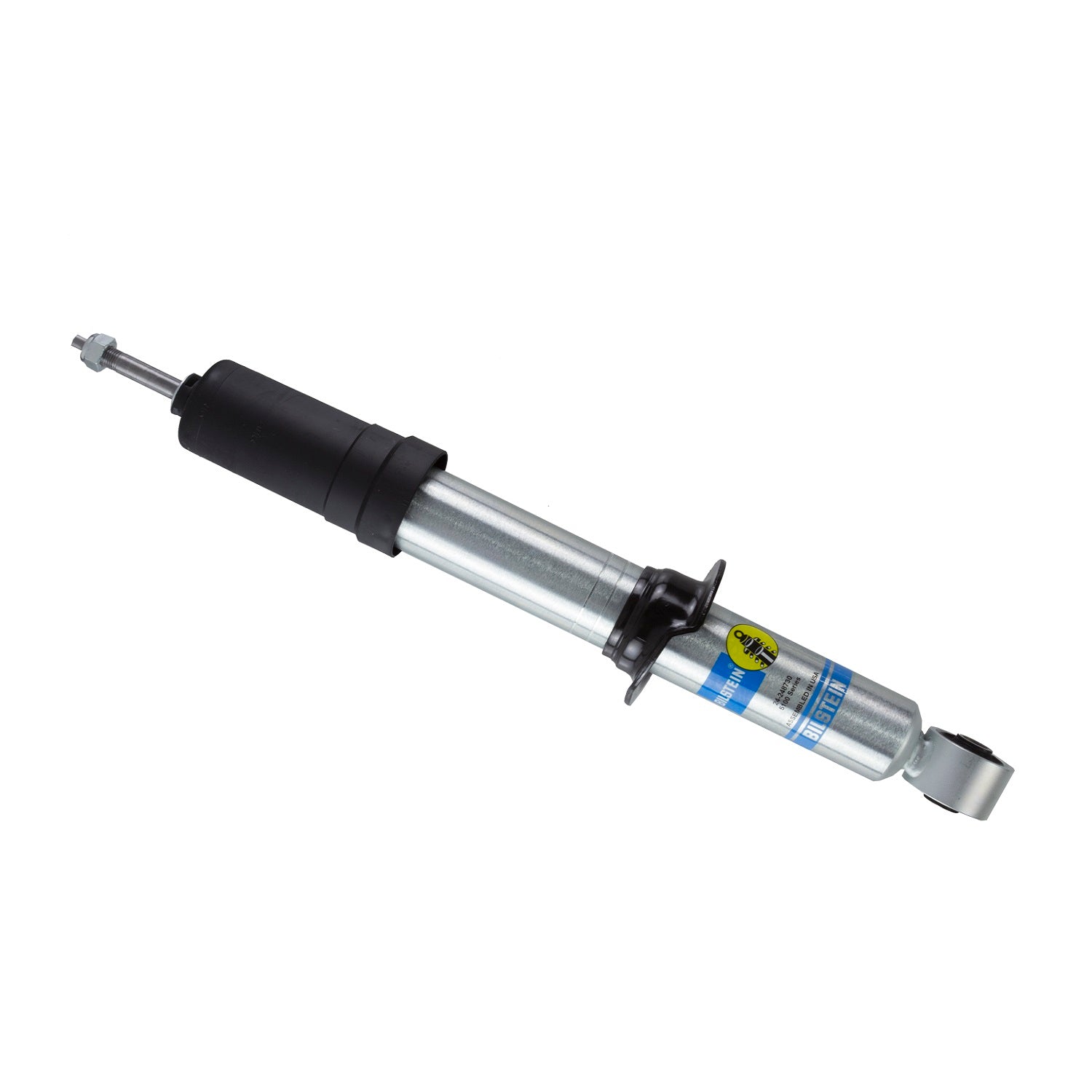

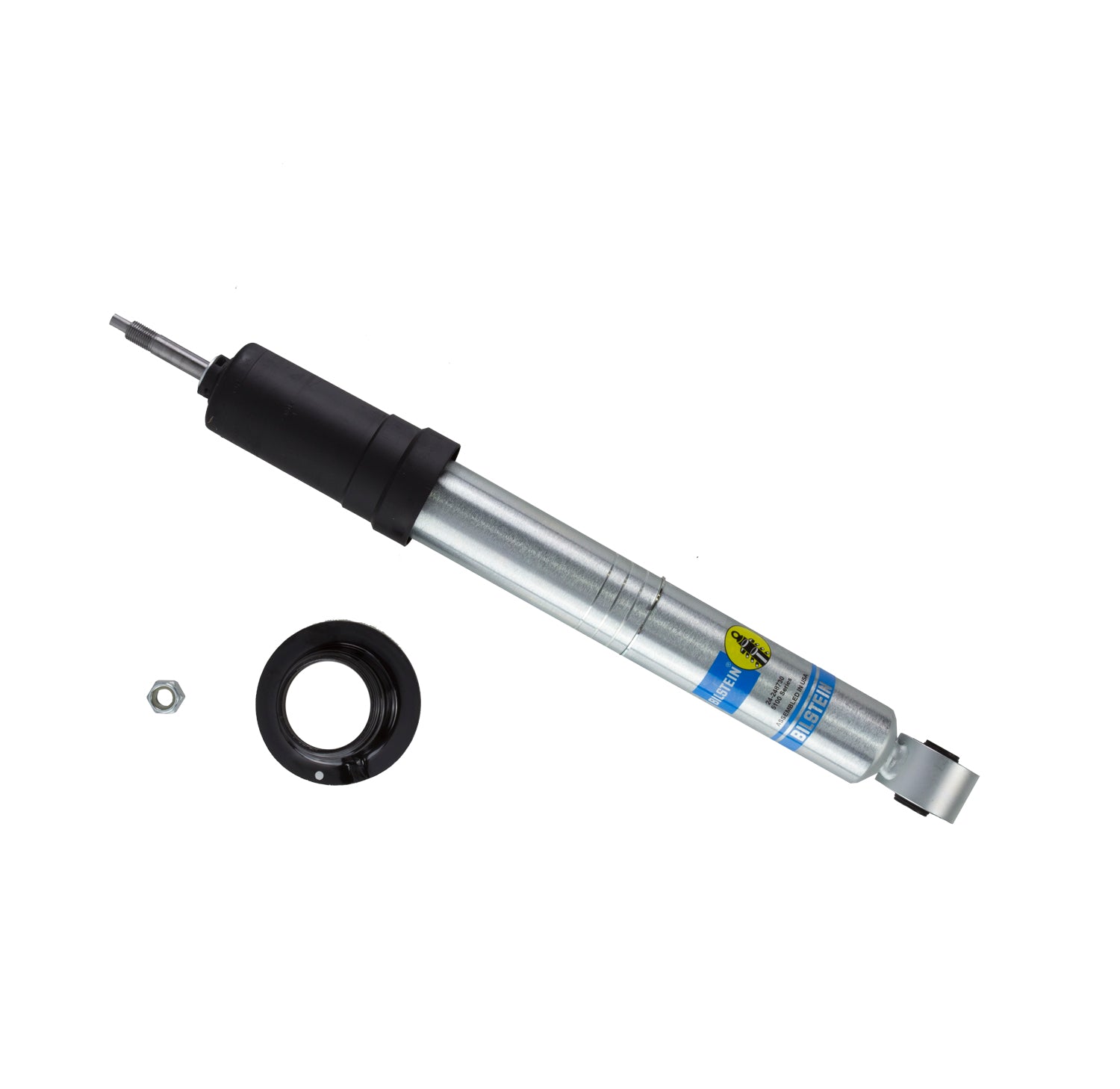

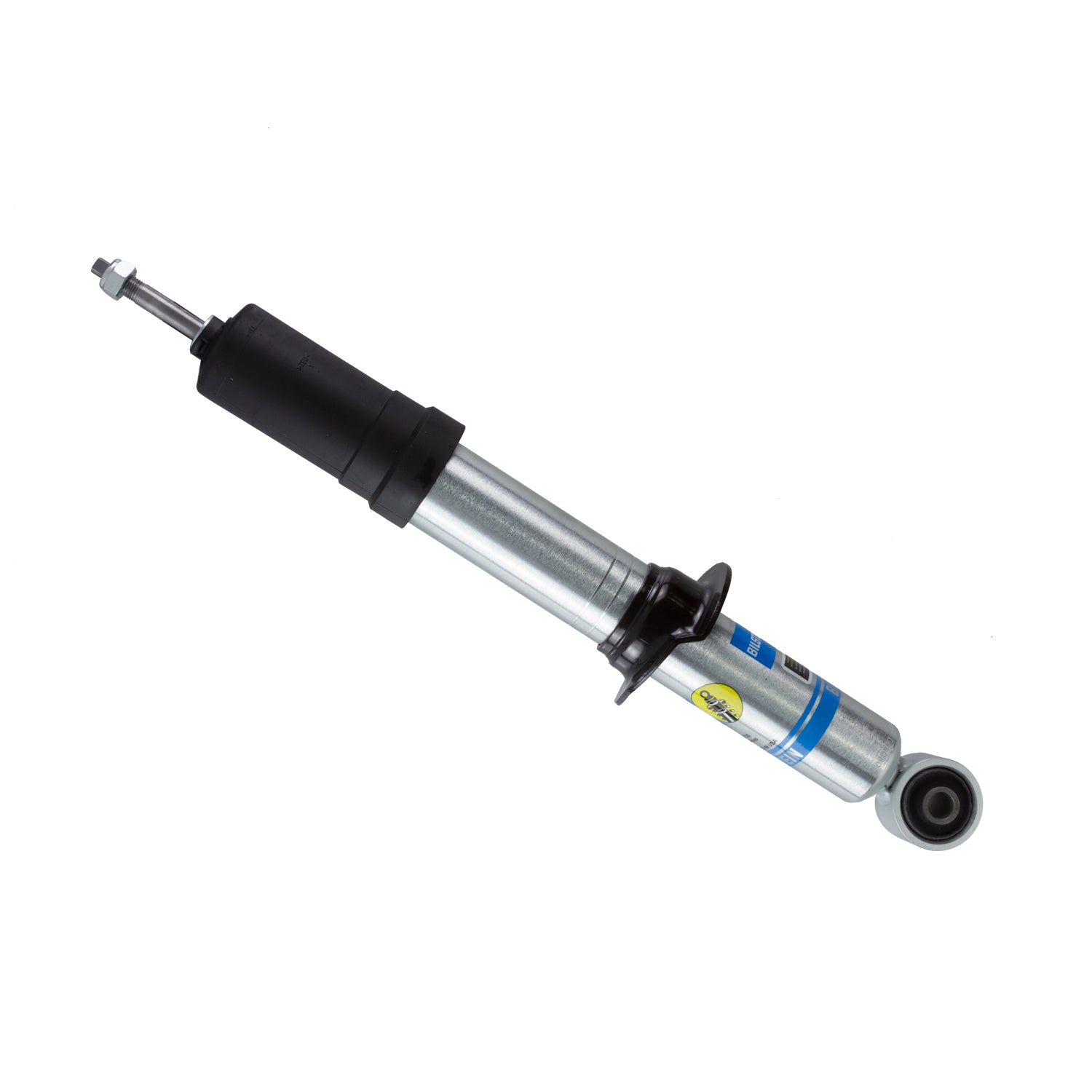

Bilstein 5100 Series 96-02 Toyota 4Runner Front 46mm Monotube Shock Absorber - 24-248730
Bilstein 5100 Series 96-02 Toyota 4Runner Front 46mm Monotube Shock Absorber - 24-248730
Bilstein 5100 Series 96-02 Toyota 4Runner Front 46mm Monotube Shock Absorber - 24-248730
Bilstein 5100 Series 96-02 Toyota 4Runner Front 46mm Monotube Shock Absorber - 24-248730

Bilstein Part # BIL24-248730

Bilstein 5100 Series 96-02 Toyota 4Runner Front 46mm Monotube Shock Absorber - 24-248730

$176.00 USD

Before you order

Customers also viewed

4.8 on Google953 store reviews
Ships from Buffalo, NYOur U.S. warehouse
Trusted since 2005Enthusiasts behind the counter
Questions?Send us a message

Bilstein B8 5100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUVs with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing 0-3 inches of front lift with OE springs (depending on application). The monotube shock absorbers feature a 46mm digressive piston a with self-adjusting deflective disc valve setting. Bilstein B8 5100 (Ride Height Adjustable) shock absorbers provide increased wheel travel and improved handling. Utilizing a B8 5100 (Ride Height Adjustable) shock absorber is the easiest way to level out your vehicle.

  • 46mm monotube design ensures consistent, fade-free performance in all conditions
  • Practical alternative to coil spring spacers, with the benefit of Bilstein monotube technology
  • Adjustable spring seat offers 0-2.75in of lift, depending on the application

  • Lower Mount Type: Eye 14.2mm
  • Body Design: Snap Ring Grooved Body (Coilover)
  • Reservoir: No
  • Adjustable Damping: Non-Adjustable

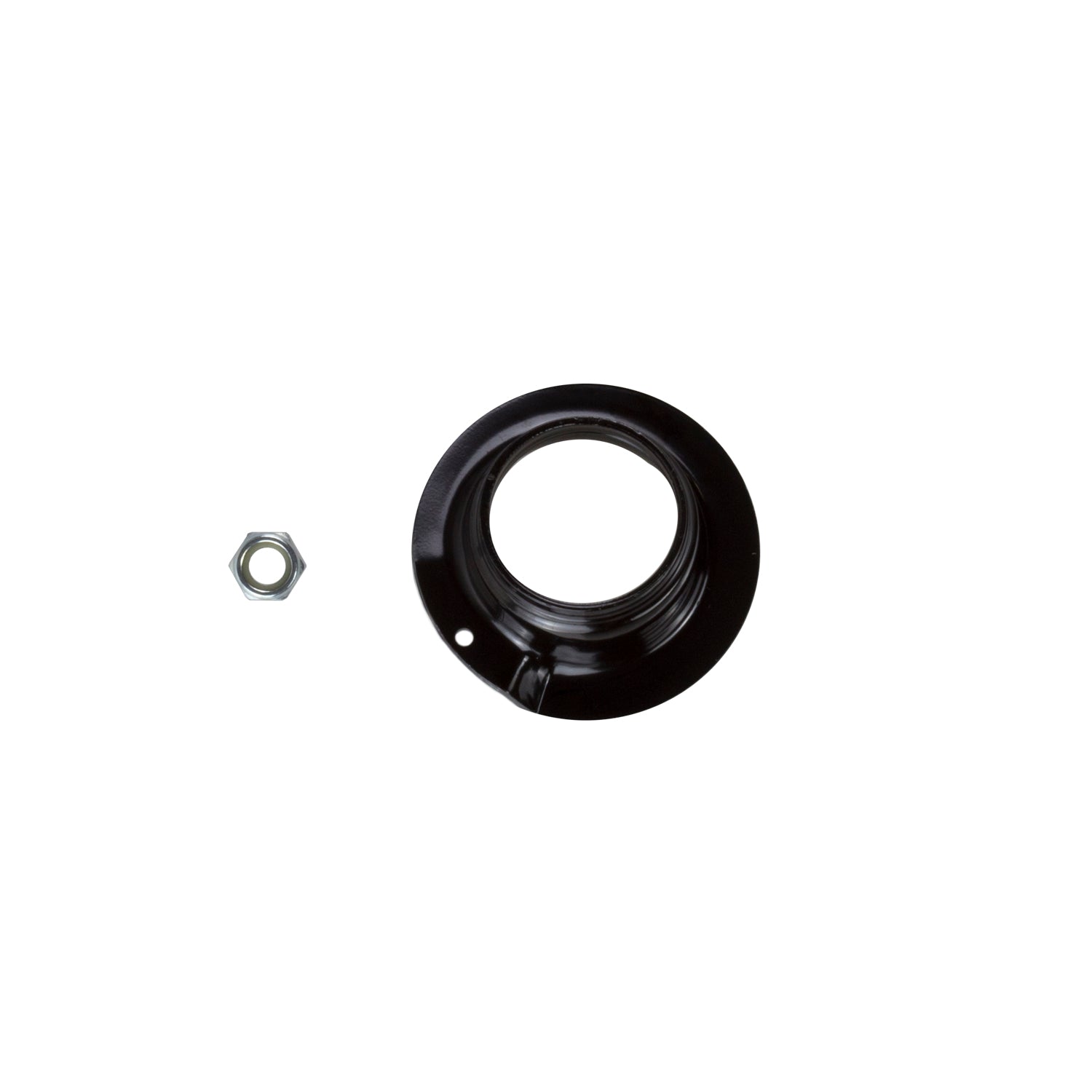

  • Spring Seat Included: Yes
  • Extended Length (in): 18.30
  • Extended Length (mm): 464.7
  • Piston Diameter: 46mm
  • Collapsed Length (mm): 347.0
  • Stroke/Travel Length (mm): 117.1
  • Shaft Diameter: 14mm
  • Stroke/Travel Length (in): 4.61
  • Internal Design: Monotube
  • Upper Mount Type: Stem
  • Series: B8 5100 (Ride Height Adjustable)
  • Boot Included: Black Straight
  • Collapsed Length (in): 13.66
  • Finish: Zinc Plated

Application

  • Toyota 4Runner 1996-2002
