The ultimate LED replacement headlight option for vehicles with 7" sealed beam lamps. Built for Jeep Wranglers, off-road vehicles, buggies, and classic cars or trucks with rugged construction, plug-and-play connectors, optional halo customization, and premium LED performance.
Product Overview
The ORACLE 7" High Performance LED Headlights are designed as a premium replacement for any vehicle with 7" sealed beam lamps. The rugged design is ideal for Jeep Wranglers, off-road vehicles, buggies, and classic cars or trucks looking for modern lighting performance and updated styling.
Installation is easy with the included H4 and H13 plug-and-play connectors. Each set comes in full-color retail-ready packaging and includes a 2-year free replacement warranty.
Optional colored halos are also available for added customization.
JL / JT Fitment Note: To fit these lights to a JL Wrangler or JT Gladiator, you will need ORACLE Part #5843-504 and ORACLE Part #5844-504.
Key Features
-
Low Beam Wattage: 30W Normal / 36W Max
-
Low Beam Lumens: 2200 Lumens / 3600 Raw Lumens
-
High Beam Wattage: 40W Normal / 48W Max
-
High Beam Lumens: 3600 Lumens / 4800 Raw Lumens
-
Color Temperature: 6000K (Cool White)
-
Input Voltage of Light: 12-24V DC
-
Input Voltage of Halo (if included): 12V DC
-
Current Draw: 2.50A @ 12V DC / 1.30A @ 24V DC
-

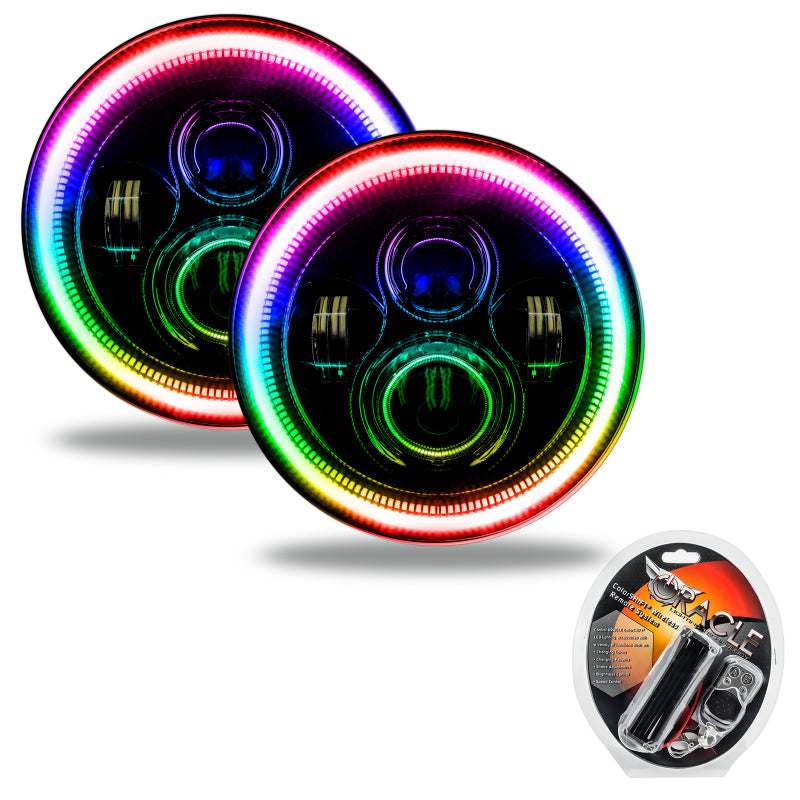

Optional: ORACLE Halo Rings Pre-Installed
-
LEDs: Premium Performance Phillips Luxeon ZES LEDs
-
Housing: Die-Cast Housing with Corrosion Resistant Coating
-
Electronics: Heavy Duty Solid State Electronics
-
Lens: Hard-Coated Polycarbonate Lens
-
Beam Pattern: Wide Beam Pattern with Sharp Cut-Off Line
-
Installation: Easy Plug & Play Installation
-
Certifications: DOT and SAE Certified
Product Improvements
- Improved brightness and reliability by adding a constant current LED driver to the main circuit board inside the lamp to control the halos
-
NEW: No need for Anti-Flicker Wiring Adapters - the SMART Integrated Can-Bus system automatically adjusts to help prevent flicker issues
- Increased reliability by conditioning power going into the LEDs to help prevent degradation that can shorten product lifespan
- Wider input voltage range - new SMD halos can operate from 12V-24V so voltage spikes do not damage the LEDs
- Brighter LED halos - moving the heat load of the resistors off the PCB allows more LEDs on the circuit board without thermal issues
- LED chips upgraded from Cree to Phillips Luxeon ZES for a high efficacy 130LM/W ratio with lower thermal output
What's Included
- (2) ORACLE Lighting 7" High Powered LED Headlights with Black Bezel
- H4 / H13 Connectors
