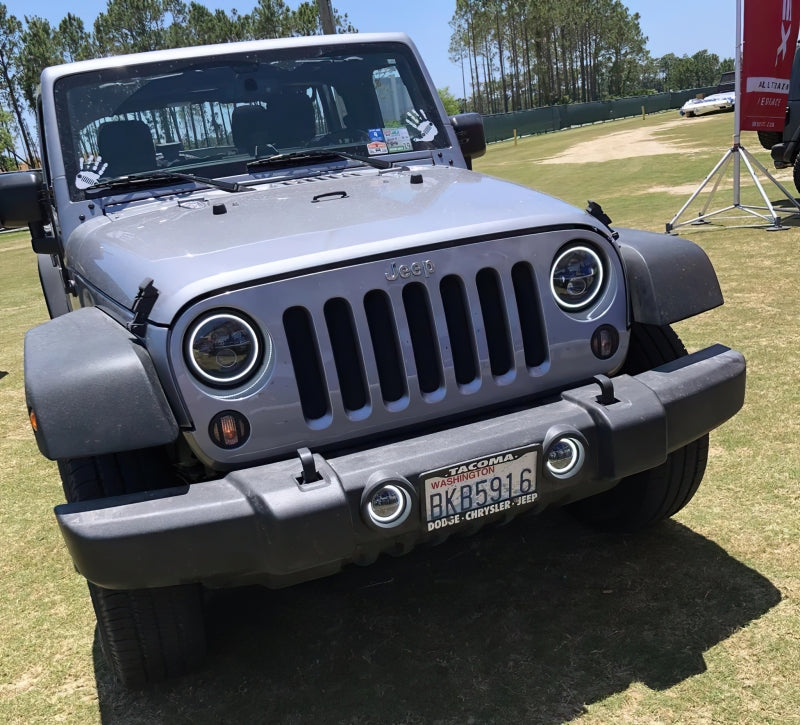

The ultimate LED headlight upgrade for the 2007-2018 Jeep Wrangler JK - now with an integrated white/amber switchback halo that serves as both a DRL and a turn signal. Powered by Philips Luxeon ZES LEDs with precision optics, wide beam pattern, and a sharp cut-off line. DOT compliant, plug-and-play, and backed by a 2-year replacement warranty. Sold as a pair.
Product Overview
ORACLE's 7" JK LED Halo Headlights are the definitive headlight upgrade for the Wrangler JK platform. High-quality LED illumination is focused through advanced precision optics for a wide beam pattern with a sharp cut-off line - maximizing road coverage while keeping oncoming drivers safe.

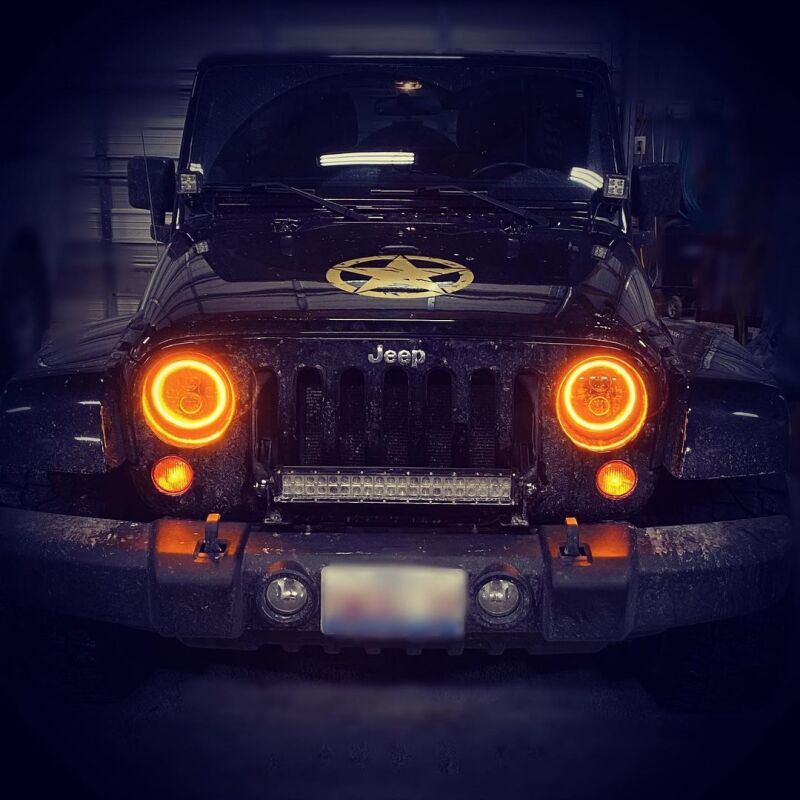

The integrated white/amber switchback halo ring is pre-installed and serves dual duty: white as a DRL during normal driving, automatically switching to amber when the turn signal is activated. This gives the JK a modern, premium look while adding genuine functional safety.
The latest revision features Philips Luxeon ZES LED chips - upgraded from Cree - delivering 130 lm/W efficacy with lower thermal output. A constant current LED driver on the main circuit board controls the halos for improved brightness, reliability, and a wider 12V-24V input range that protects against voltage spikes.
Key Features
-
Philips Luxeon ZES LED chips - 130 lm/W efficacy, lower thermal output vs. Cree
-

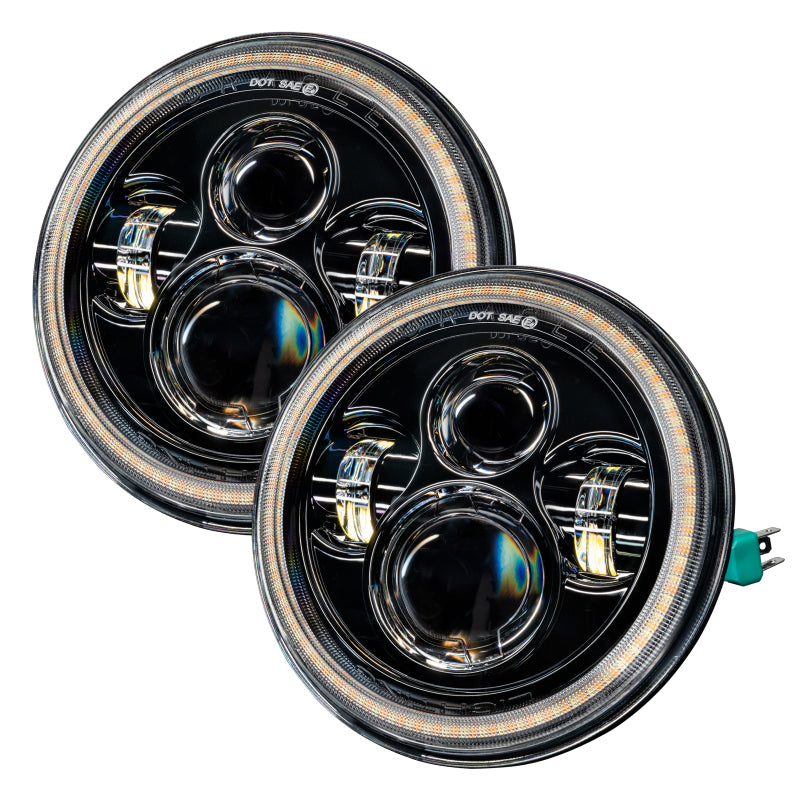

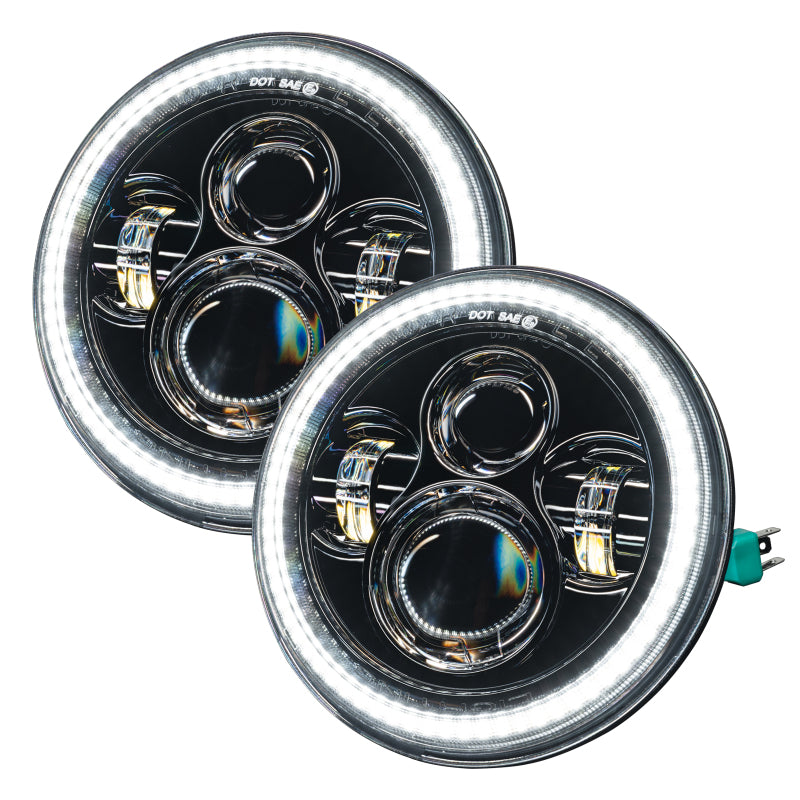

White/Amber switchback halo pre-installed - white DRL, amber turn signal
-
Wide beam pattern with sharp cut-off line - precision optics for maximum road coverage
-
Constant current LED driver - protects halos from voltage spikes, extends lifespan
-
Die-cast housing with corrosion-resistant coating
-
Hard-coated polycarbonate lens - scratch and UV resistant
- Heavy-duty solid-state electronics
-
Easy plug-and-play installation - direct JK fitment
-
DOT compliant - FMVSS 108 tested
-
12V-24V DC input - wide voltage range
- 2-Year Replacement Warranty
-
Sold as a pair - (2) headlights per order
Performance & Technical Specifications
-
Part Number: 5769-123
-
Fitment: 2007-2018 Jeep Wrangler JK
-

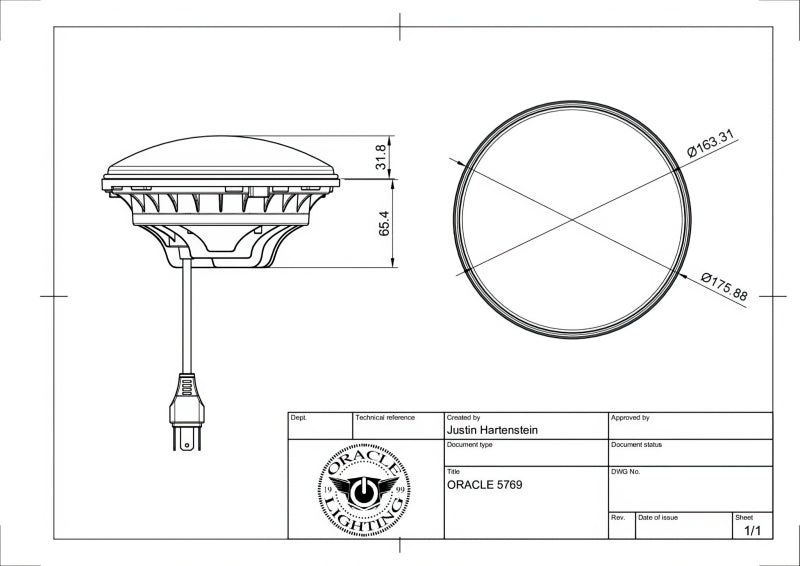

Size: 7" Round
-
LED Chip: Philips Luxeon ZES (130 lm/W)
-
Low Beam Wattage: 30W Normal / 36W Max
-
Low Beam Lumens: 2,200 lm / 3,600 Raw lm
-
High Beam Wattage: 40W Normal / 48W Max
-
High Beam Lumens: 3,600 lm / 4,800 Raw lm
-
Color Temperature: 6000K (Cool White)
-
Input Voltage: 12V-24V DC
-
Current Draw: 2.50A @ 12V / 1.30A @ 24V
-
Halo: White/Amber Switchback (Pre-Installed)
-
Lens: Hard-Coated Polycarbonate
-
Housing: Die-Cast, Corrosion-Resistant Coating
-
Compliance: DOT / FMVSS 108
-
Warranty: 2-Year Replacement
-
Quantity: Pair (2 headlights)
Vehicle Fitment
Vehicle Year Range: 2007-2018
- 2007 Jeep Wrangler JK
- 2008 Jeep Wrangler JK
- 2009 Jeep Wrangler JK
- 2010 Jeep Wrangler JK
- 2011 Jeep Wrangler JK
- 2012 Jeep Wrangler JK
- 2013 Jeep Wrangler JK
- 2014 Jeep Wrangler JK
- 2015 Jeep Wrangler JK
- 2016 Jeep Wrangler JK
- 2017 Jeep Wrangler JK
- 2018 Jeep Wrangler JK
Fits both 2-door and 4-door (Unlimited) JK models.
What's Included

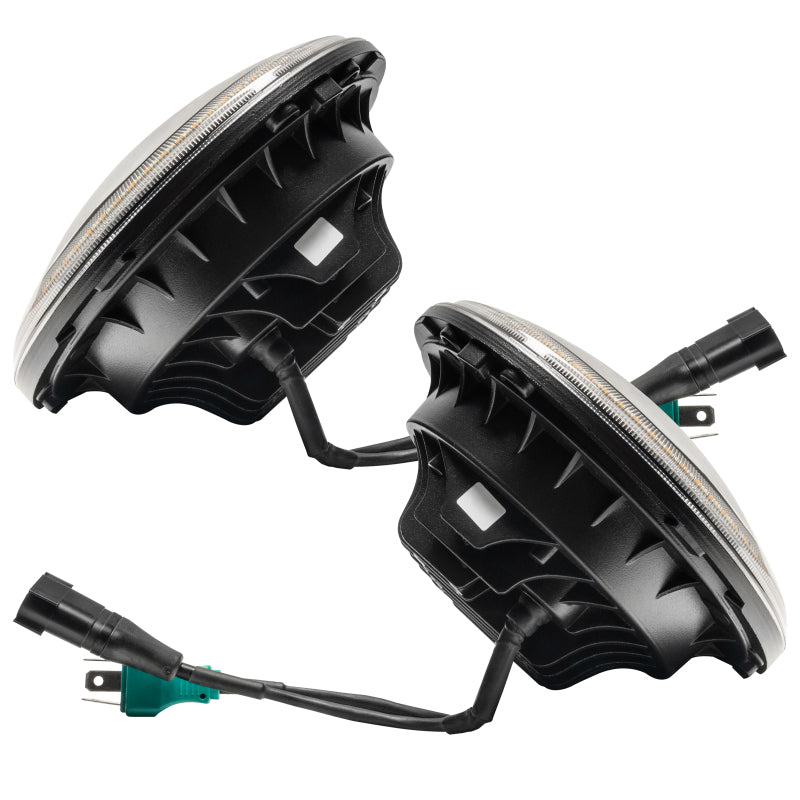

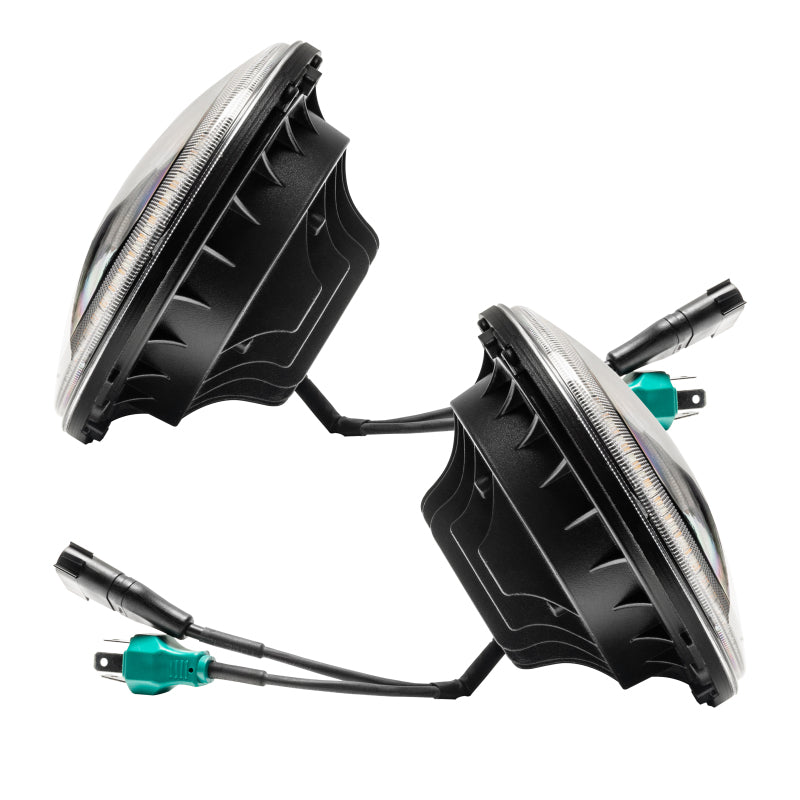

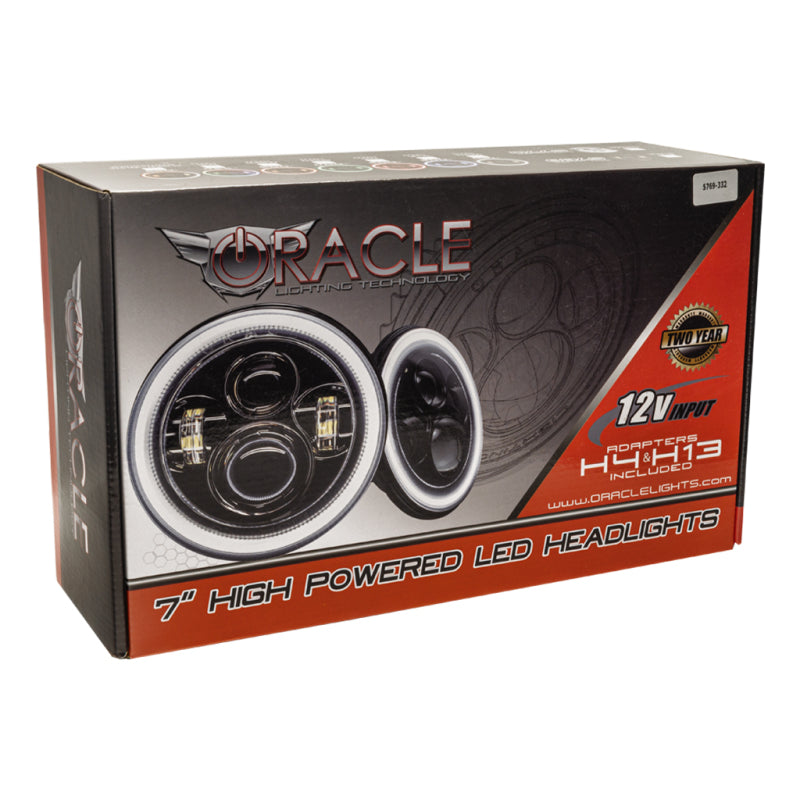

- (2) ORACLE 7" High-Powered LED Headlights - Black Bezel, with pre-installed White/Amber Switchback Halo

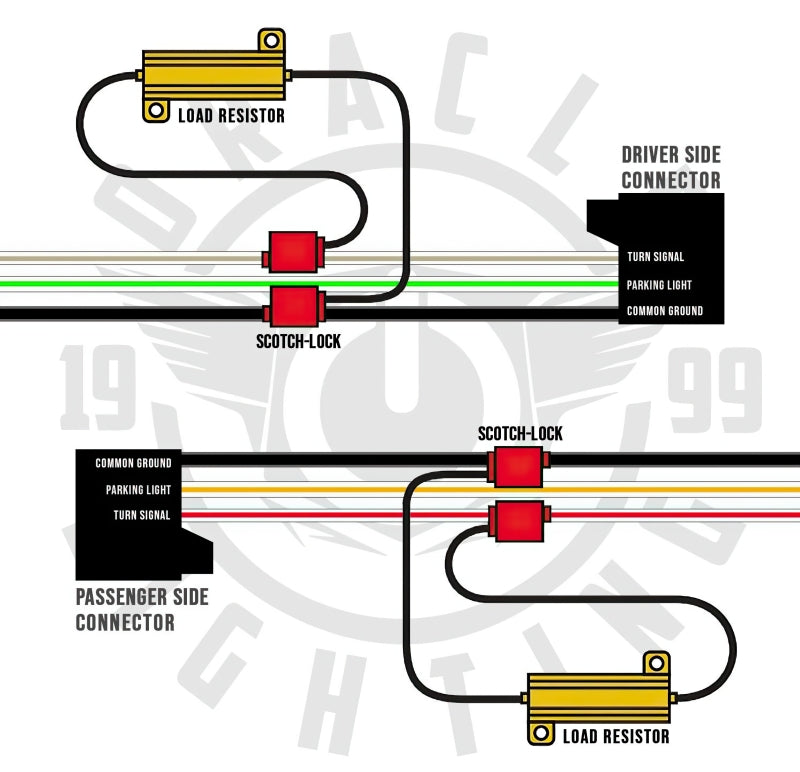

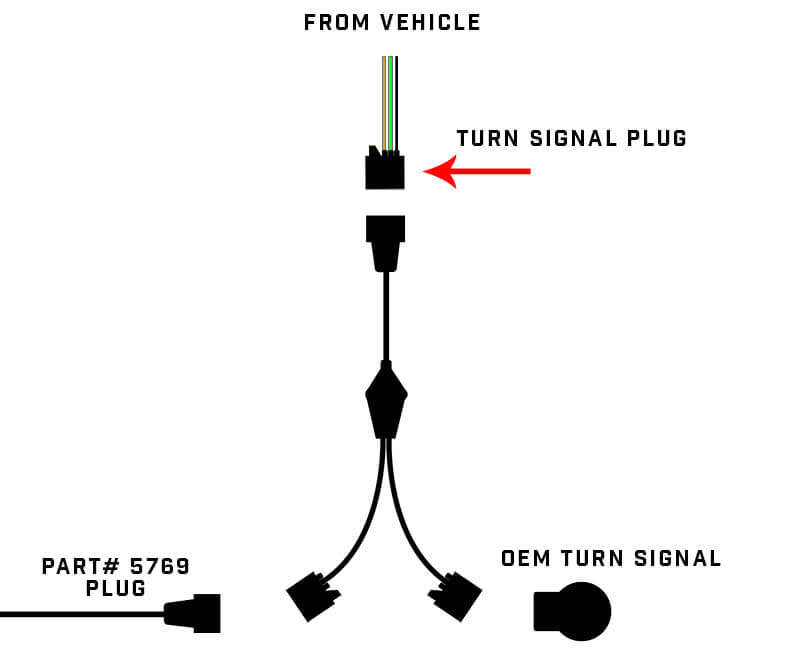

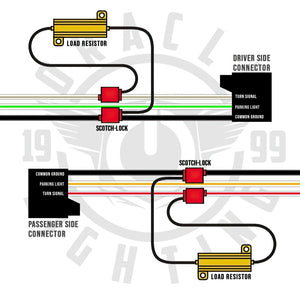

Y-Splitter Adapter and Load Equalizer are sold separately. See the Switchback Turn Signal - Wiring Options accordion above for details.
Installation Instructions
