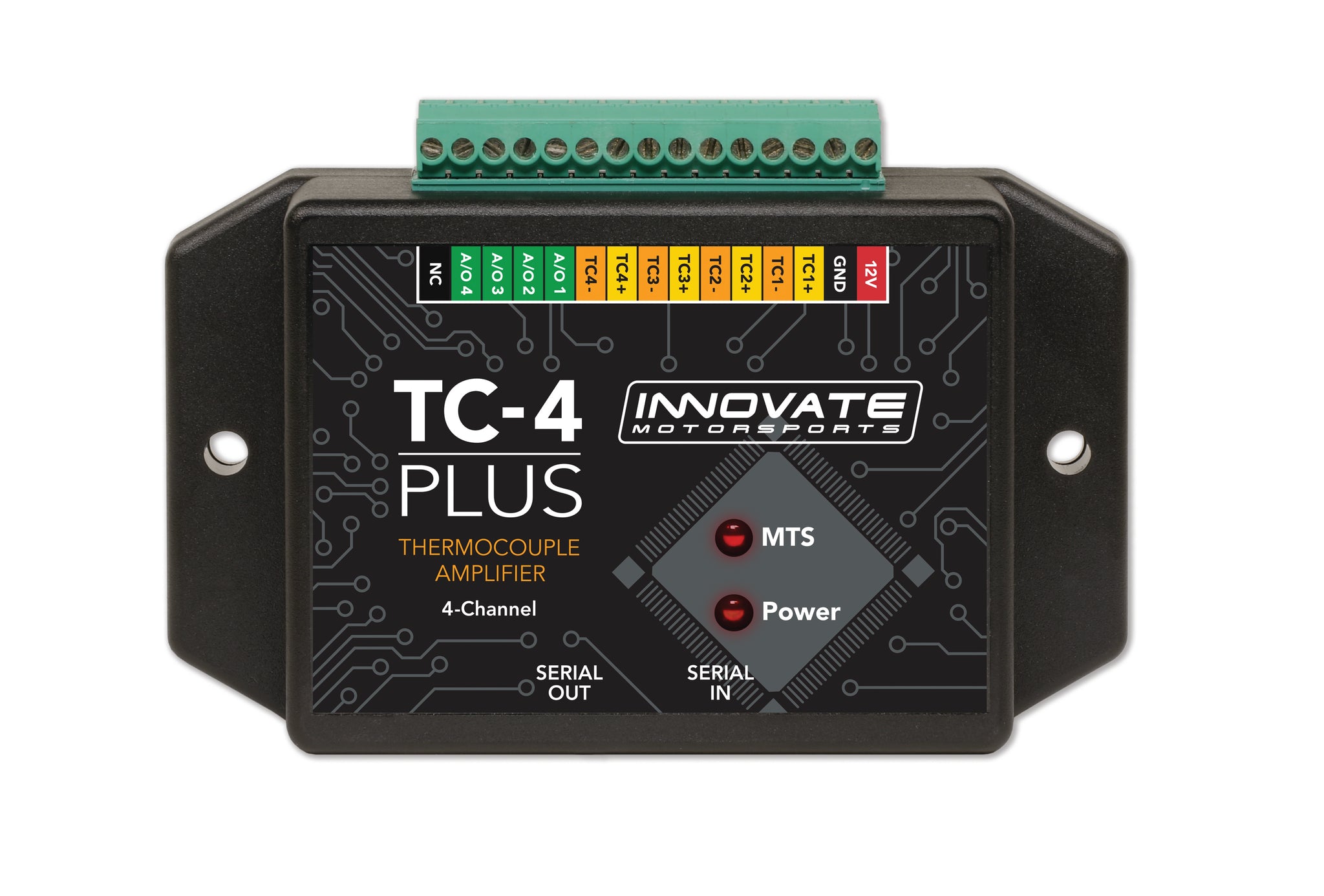

Innovate TC-4 PLUS (4 Channel Thermocouple for MTS) - 3915

The Tc-4 Plus Is 4 Channel Type-K Thermocouple Amplifier Device That Can Be Used A Stand-Alone System Or As Part Of A Mts (Modular Tuning System). The Tc-4 Plus Includes A Digital Input/Output, 4 Full-Programmable Analog Outputs, And Is Ideal For Applications Such As Dynamometers, Data Acquisition Systems, Or Standalone Ecus. The Tc-4 Is Also A Key Component Of Innovate Motorsports Modular Tuning System (Mts). Using The Tc-4 Pluss Serial Ports You Can Daisy-Chain Other Innovate Devices Such As The Mtx-L, Lm-2, Lc-2, And Ssi-4 Plus.

Features

• K-Type thermocouple amplifier that adds 4 temperature inputs to an MTS Log Chain
• Temperature range 32-1999 deg F, 0- 1093 deg C
• 4-Configurable linear 0-5V analog outputs (one per input)
• The TC-4 PLUS can be used to measure other temperature metrics such as intercooler inlet, outlet temperature and catalytic converter
• The TC-4 PLUS includes the TC-4 PLUS, Serial Program Cable, Molex to Molex Patch Cable (to daisy chain with other MTS compatible devices), and manual.

Installation Instructions:

• TC4%20PLUS - Installation Guide (PDF)
