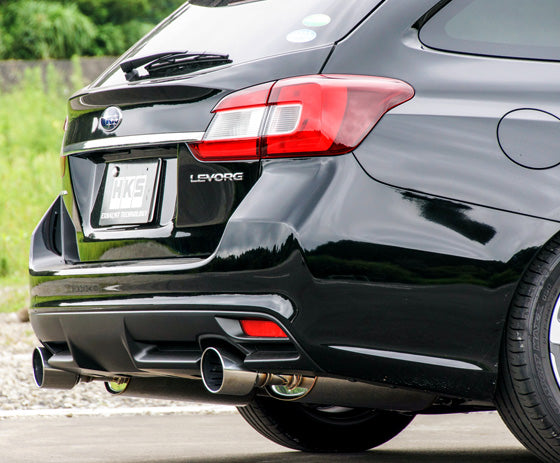

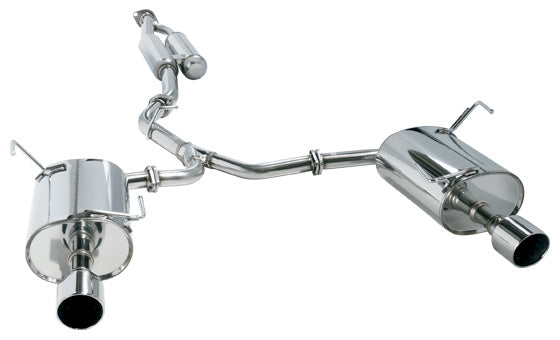

HKS SUPER TURBO MUFFLER LEVORG VM4 FB16 - 31029-AF010

Super Turbo Muffler

Vehicle: LEVORG

Application

• Model/Chassis: VM4
• Engine: FB16(TURBO)
• Model Year: 14/06 - 20/10
• Code No.: 31029-AF010

Specifications

LEVORG DBA-VM4 Cert. No. JQR40144187 Vehicle LEVORG Model VM4 Engine FB16(TURBO) Model Year 14/06 - 20/10 Shape of muffler SSR (Super Turbo Muffler) Main material S304 Diameter of tip 110 L&R Diameter of center pipe 60-50 x 2 (*1) Close noise level Stock 72 HKS 72 About road clearance(*2) Clearance 140mm Portion of the kit Center pipe Remarks Product Weight Remarks Includes Center Pipe. * Silver color exhaust tip. (not burnt blue) About HKS muffler *1: About center pipe Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension. *2: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle. The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit. Caution: Hook, bracket, stay may be changed without prior notice. ★ Exhaust noise level at idle. [ CLOSE ]

Source: HKS Japan · Detail page
