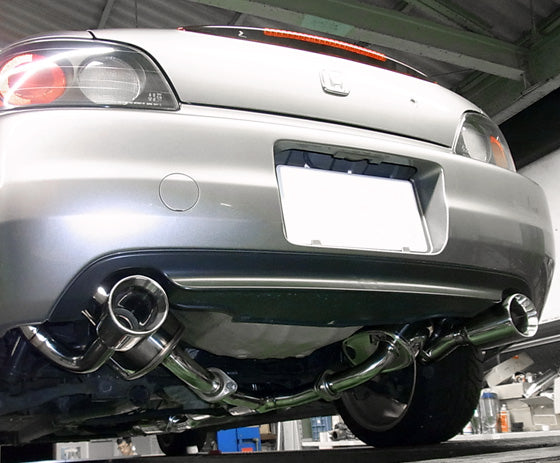

HKS SUPER SOUND MASTER AP1 F20C - 32023-AH001

Super Sound Master

Vehicle: S2000

Application

• Model/Chassis: AP2
• Engine: F22C
• Model Year: 05/11 - 09/09
• Code No.: 32023-AH001

Specifications

S2000 ABA-AP2 Cert. No. 03S15773 Vehicle S2000 Model AP2 Engine F22C Model Year 05/11 - 09/09 Shape of muffler RS (Super Sound Master) Main material S304 Diameter of tip 102 L&R Diameter of center pipe 60-50 x 2 (*1) Close noise level Stock 95 HKS L91 R92 About road clearance(*2) Clearance 123mm Portion of the kit Front Pipe Remarks Product Weight Remarks About HKS muffler *1: About center pipe Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension. *2: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle. The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit. Caution: Hook, bracket, stay may be changed without prior notice. ★ Exhaust noise level at idle. [ CLOSE ]

Source: HKS Japan · Detail page
