HKS LEGAMAX Premium GP7 FB20 - 32018-AF012

LEGAMAX Premium

Vehicle: IMPREZA SPORT

Application

• Model/Chassis: GPE
• Engine: FB20-MA1
• Model Year: 15/06 - 16/09
• Code No.: 32018-AF012

Specifications

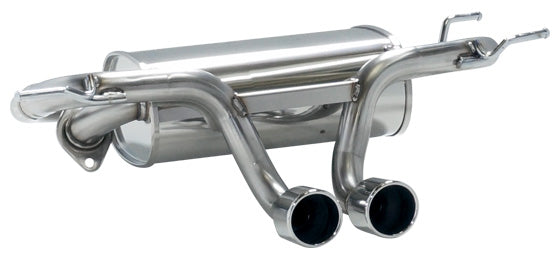

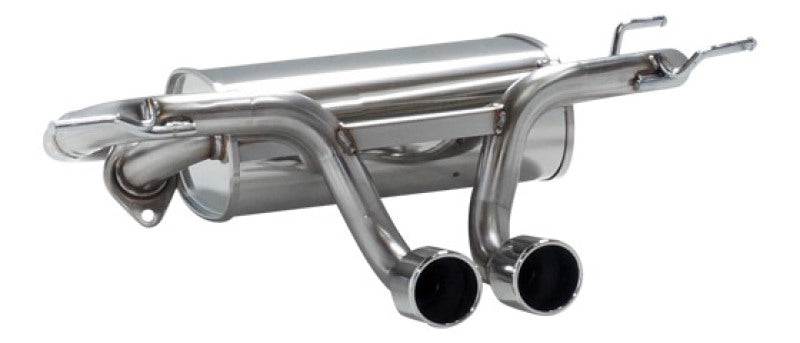

IMPREZA SPORT DAA-GPE Cert. No. JQR10141071 Vehicle IMPREZA SPORT Model GPE Engine FB20-MA1 Model Year 15/06 - 16/09 Shape of muffler C-1 (LEGAMAX Premium) Main material S304 Diameter of tip 76.3 x 2 Diameter of center pipe 50.8 - 45 x 2 (*1) Close noise level Stock 76 HKS 87 About road clearance(*2) Clearance 260mm Portion of the kit Tail tip Remarks Product Weight Remarks Make to order item Does not compatible with vehicle with stock normal bumper due to excessive clearance of tail and bumper. About HKS muffler *1: About center pipe Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension. *2: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle. The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit. Caution: Hook, bracket, stay may be changed without prior notice. ★ Exhaust noise level at idle. [ CLOSE ]

Source: HKS Japan · Detail page
