SKU: SKU: HKS80330-AT005
Application
Specifications

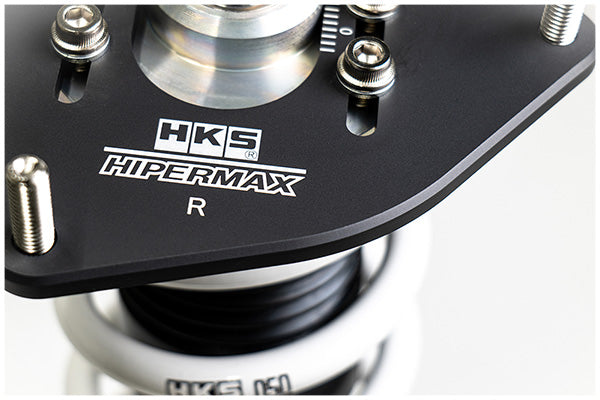

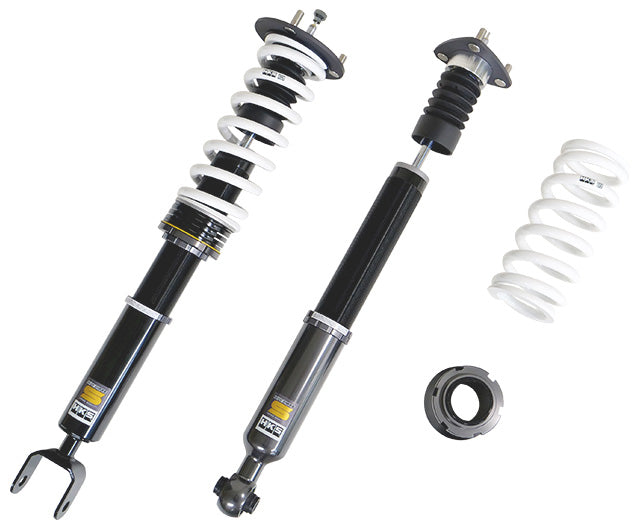

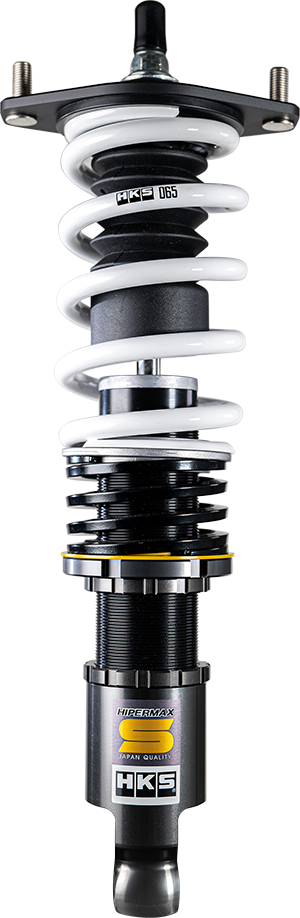

GS350 GRL10 A New Dimension of Driving Comfort The model in the photo is GRL10. Application Engine 2GR-FSE Model Year 12/01 - 20/07 Remarks Specification FRONT REAR Damping force adjustment 30 steps 30 steps Base valve - - Height adjustable lower bracket 〇 〇 Upper mount Rubber Rubber Inverted/Normal type Normal Normal Damper/Spring layout Coilover Separated Spring rate change at factory Impossible Possible Damping force adjustment with wire - 〇 Helper spring (Spring rate N/mm) 〇 (19.8) - Ride Height mm Factory *2 Test data Adjustable range High - Low *3 Drivable range High - Low *4 FRONT Ride height *1 692 665 703 ～ 633 703 ～ 633 Against stock -11 -38 0 ～ -70 0 ～ -70 REAR Ride height *1 678 668 681 ～ 632 681 ～ 632 Against stock -35 -45 -32 ～ -81 -32 ～ -81 *1. Height from road surface to fender arch. *2. Height at factory is the data tested at HKS with the setting of Full Kit. (HKS’ recommended setting.) *3. Adjustable range (However, the lowest value may not be road legal. Even within the adjustable range, car body, arm etc. may contact. In such case, it will be hard to drive. Damper oil leakage or any other problems caused by low ride height setting from the factory setting will void the warranty of the product.) *4. Drivable range that there is no contact of car body or arms etc. (However, change of tire/wheel size may cause a problem.) Caution). Actual data depends on each v
