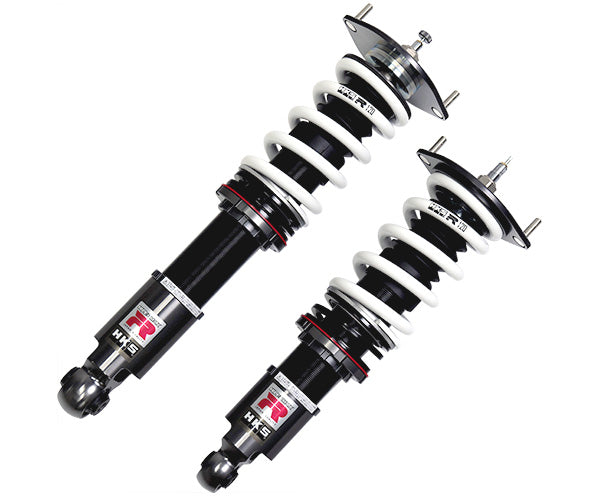

HKS HIPERMAX R NA/NB MIATA FULL KIT - 80310-AZ004

Application

• Engine: B6-ZE
• Code No.: 80310-AZ004

Specifications

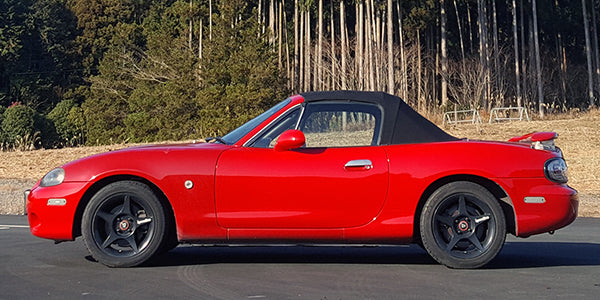

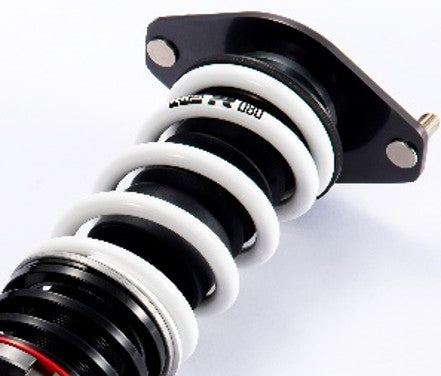

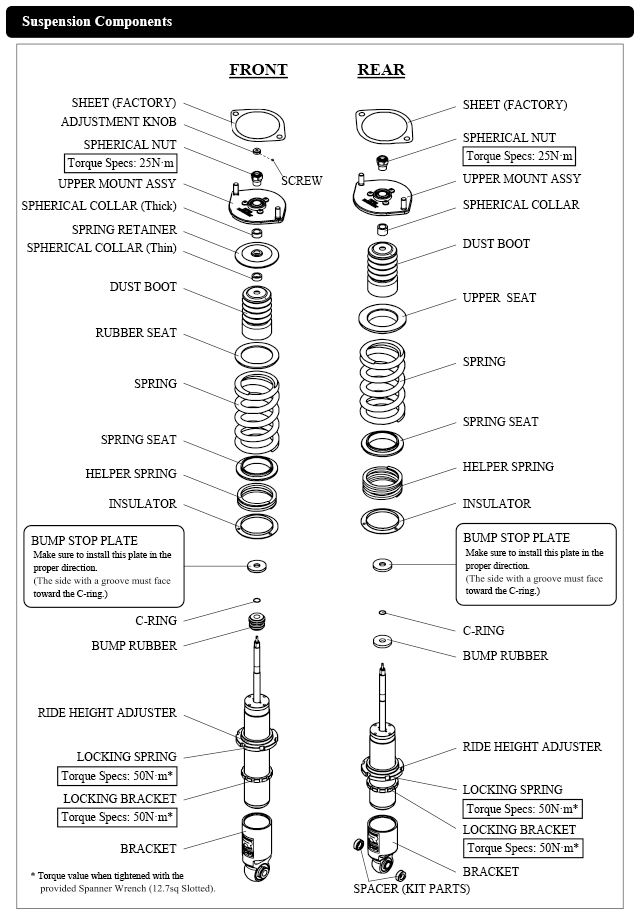

ROADSTER NB6C The fun of controlling it at will and the versatility to adapt to anything from circuits to winding roads The ultimate multi-performer with a refined ride feel HIPERMAX R for the Roadster, Evolved with the Latest Technology The Roadster’s suspension has been refined with cutting-edge technology to deliver both everyday comfort and sharp, responsive cornering. Spring rates and damping force have been pushed to the limit for a sporty, lightweight feel on winding roads and circuits. The specially designed “LVS” springs offer more flexibility than their set rate, providing a smooth ride in the city and firm, stable handling during spirited driving—even at the limit. A front spring retainer reduces side forces, allowing smoother suspension movement and better road tracking. In the rear, a helper spring ensures enough extension stroke to maximize inner rear tire grip during circuit runs. Tested at Fuji Speedway with A052 tires, the recommended damper settings are 10 clicks front, 12 clicks rear. This height-adjustable kit unleashes the full potential of the Roadster, whether on the street or the track. The model in the photo is NB6C. Application Engine B6-ZE Model Year 98/01 - 05/08 Remarks Specification FRONT REAR Damping force adjustment 30 steps 30 steps Base valve - - Height adjustable lower bracket 〇 〇 Upper mount Spherical bearing Spherical bea

Source: HKS Japan · Detail page
