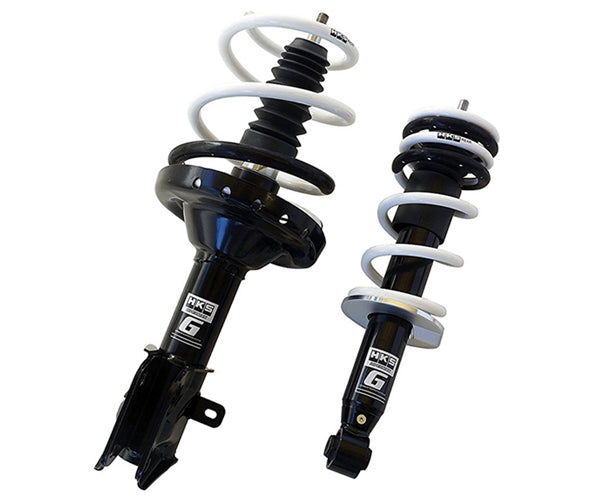

HKS HIPERMAX-G 2015+ Subaru WRX Coilover Kit - 80260-AF002

Vehicle: better with a

Application

• Engine: Model
• Code No.: 80260-AF002

Specifications

WRX S4 VAG ~ For Obsession with High Quality ~ Integration of quality over cost principles of turning parts and benefits and compatibility gained from OEM design. for WRX S4 (VAG) ＜Product Basic Structure＞

Single

Tube Damper Assembly

Special

Low-down Style Spring *The stock upper mounts are used.

Features

Utilizing the stock suspension structure for Hipermax G series provides a better durability and ride quality than its original even after lowering vehicle’s height. The vehicle height is set casually so as not to obstruct a driver and to make the ride comfort of the vehicle better with a model equipped with an optional aero parts. With the stock damper, discomfort and instability maybe felt when riding over a high step on a road surface during high speed driving and/or driving on a rutted road. After replacing with this product, a driver can enjoy driving without discomfort and instability; the stable feeling of steering on acceleration is improved.

Kit

Parts Vehicle Model Engine Model Year Series Full Kit Spring Rate F/R Free Height Damping Force Piston Speed 0.1m/sec Damping Force N Vehicle Height (Highest - Lowest) Code No. Manual Remarks F: Rebound/Compression R: Rebound/Compression WRX S4 VAG FA20(TURBO) 14/08 -21/03 G F=49(5)/R=48(4.9) Special/Special 657/255 333/226 -11 -9 80260-AF002 Make to order item [ CLOSE ]

Source: HKS Japan · Detail page
