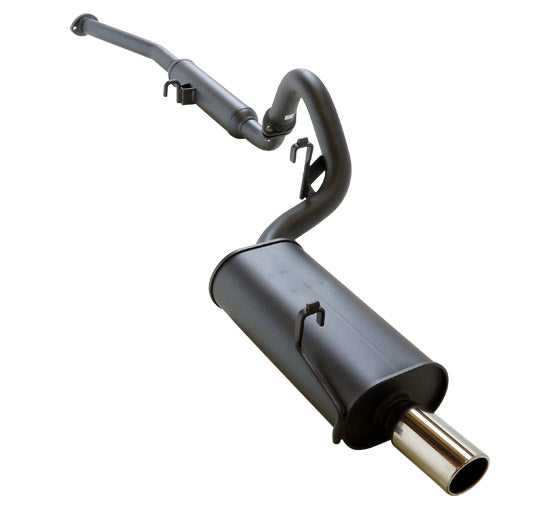

HKS 85-87 Corolla GTS Exhaust System
| Vehicle |
LEVIN |
| Model |
AE86 |
| Engine |
4A-GE |
| Model Year |
83/05 - 87/04 |
|
| Shape of muffler |
E-1 (LEGAL) |
| Main material |
S409(*2) |
| Diameter of tip |
83 |
| Diameter of center pipe |
60(*3) |
| Close noise level |
Stock |
85 |
| HKS |
92 |
| About road clearance(*4) |
Clearance |
150mm |

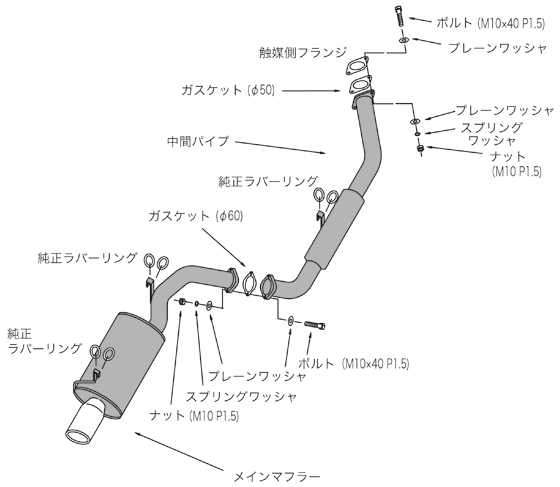

| Portion of the kit |
|
| Remarks |
|
| Product Weight |
|
|
Remarks
Over differential layout.
About HKS muffler
*1: About silencer shell type of Silent Hi-Power
TYPE-S/Oval silencer for noise reduction.
TYPE-H/Round silencer for performance.
*2: Main material in the component figure.
： SUS304/High quality stainless steel.
： SUH409/Stainless steel commonly used for stock exhaust.
*3: About center pipe
Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension.
*4: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle.
The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit.
Caution: Hook, bracket, stay may be changed without prior notice.
★ Exhaust noise level at idle.
LEGAL
Vehicle: COROLLA LEVIN
Application
-
Model/Chassis: AE86
-
Engine: 4A-GE
-
Model Year: 83/05 - 87/04
-
Code No.: 3302-ST029
Specifications
COROLLA LEVIN E-AE86 Cert. No. 94-000017 Vehicle COROLLA LEVIN Model AE86 Engine 4A-GE Model Year 83/05 - 87/04 Shape of muffler E-1 (LEGAL) Main material S409 Diameter of tip 83 Diameter of center pipe 60 (*1) Close noise level Stock 85 HKS 92 About road clearance(*2) Clearance 150mm Portion of the kit Remarks Product Weight Remarks Over differential layout. About HKS muffler *1: Center pipe Diameter of center pipe is the portion that has the largest diameter. (Excluding silencer and tip.) It is the condition with stock suspension. *2: Minimum road clearance between HKS muffler (Any parts included in the kit) and road surface. Therefore, it may be different from actual road clearance of the vehicle. The data is basically the condition with stock suspension. However, please understand that some items have data with low down spring or ride height adjustable suspension kit. Caution: Hook, bracket, stay may be changed without prior notice. ★ Exhaust noise level at idle. [ CLOSE ]
