Request this part Text us (833) 691-5717Bilstein · Part # BILF4-B46-0202-H0
Email me when it's back
Leave your email and we'll let you know as soon as it can be ordered again.

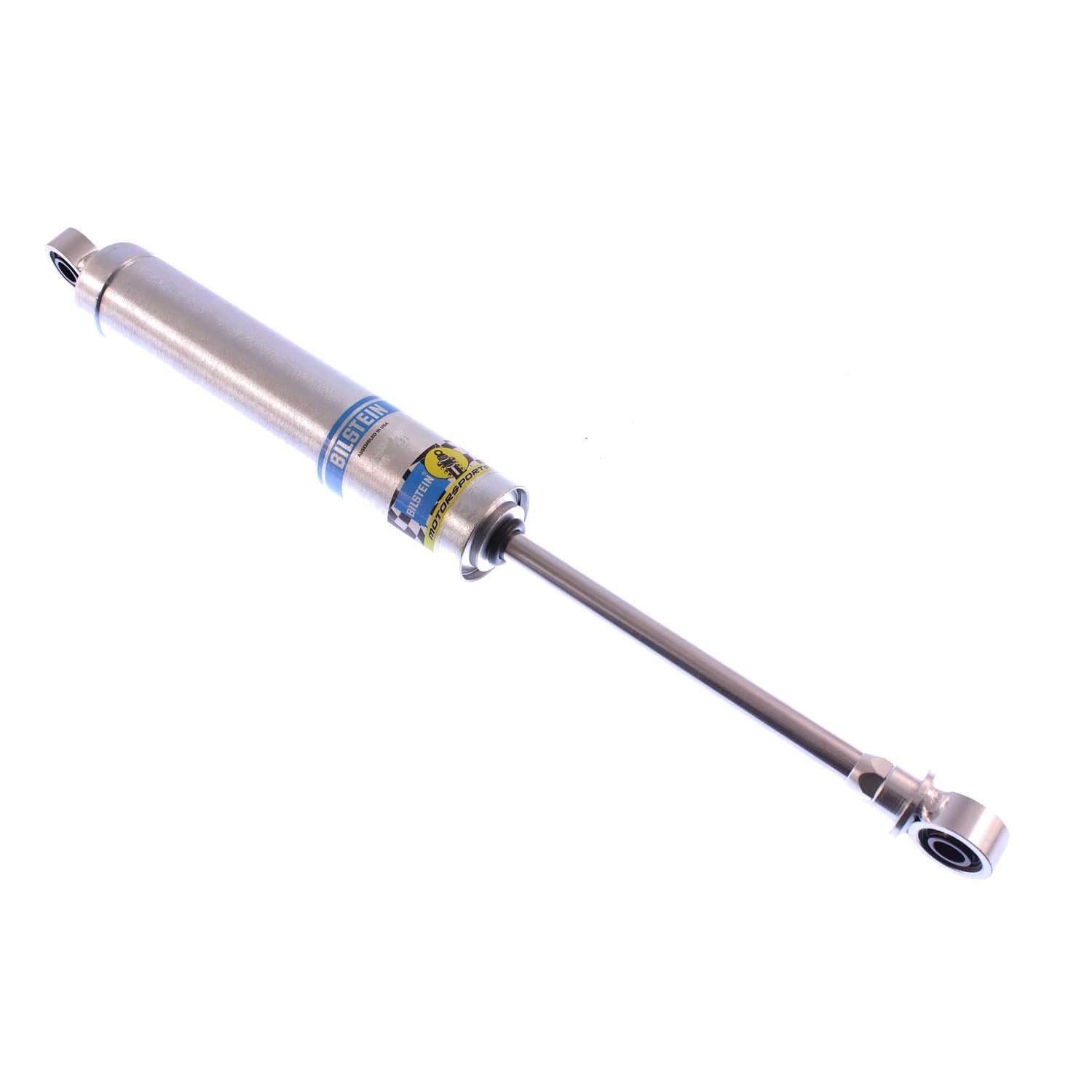

Bilstein SL Series shock absorbers feature a 46mm piston, steel construction, and a smooth body designed for motorsports applications. These shock absorbers are available in a variety of lengths, valve settings and can be converted to a coilover design (kit sold separately). Also available as dry kits (partially assembled with no valving or gas) that are geared towards giving tuners the versatility to build to their unique needs. SL Series shock absorbers are ideal for racers whose sanctioning rules do not allow or require rebuild capability.
Plated steel body for durability and superior heat dissipation.
46mm piston design for maximum damping control.
Standard 1/2” graphite heims.
| Extended length (in) | 18.11 |
|---|---|
| Finish | Zinc Plated |
| Lower mount type | 1/2in Heim |
| Series | SL Series |
| Internal design | Monotube |
| Collapsed length (in) | 12.05 |
| Piston type | Custom |
| Piston diameter | 46mm |
| Collapsed length (mm) | 306.0 |
| Boot included | No |
| Upper mount type | 1/2in Heim |
| Adjustable damping | Non-Adjustable |
| Body material | Steel |
| Extended length (mm) | 460.0 |
| Body design | Smooth Body (Non-coilover) |
| Spring seat included | No |
| Shaft diameter | 14mm |
| Stroke/travel length (mm) | 153.9 |
| Stroke/travel length (in) | 6.06 |
| Part number | F4-B46-0202-H0 |
