Request this part Text us (833) 691-5717Bilstein · Part # BIL24-325578
Email me when it's back
Leave your email and we'll let you know as soon as it can be ordered again.

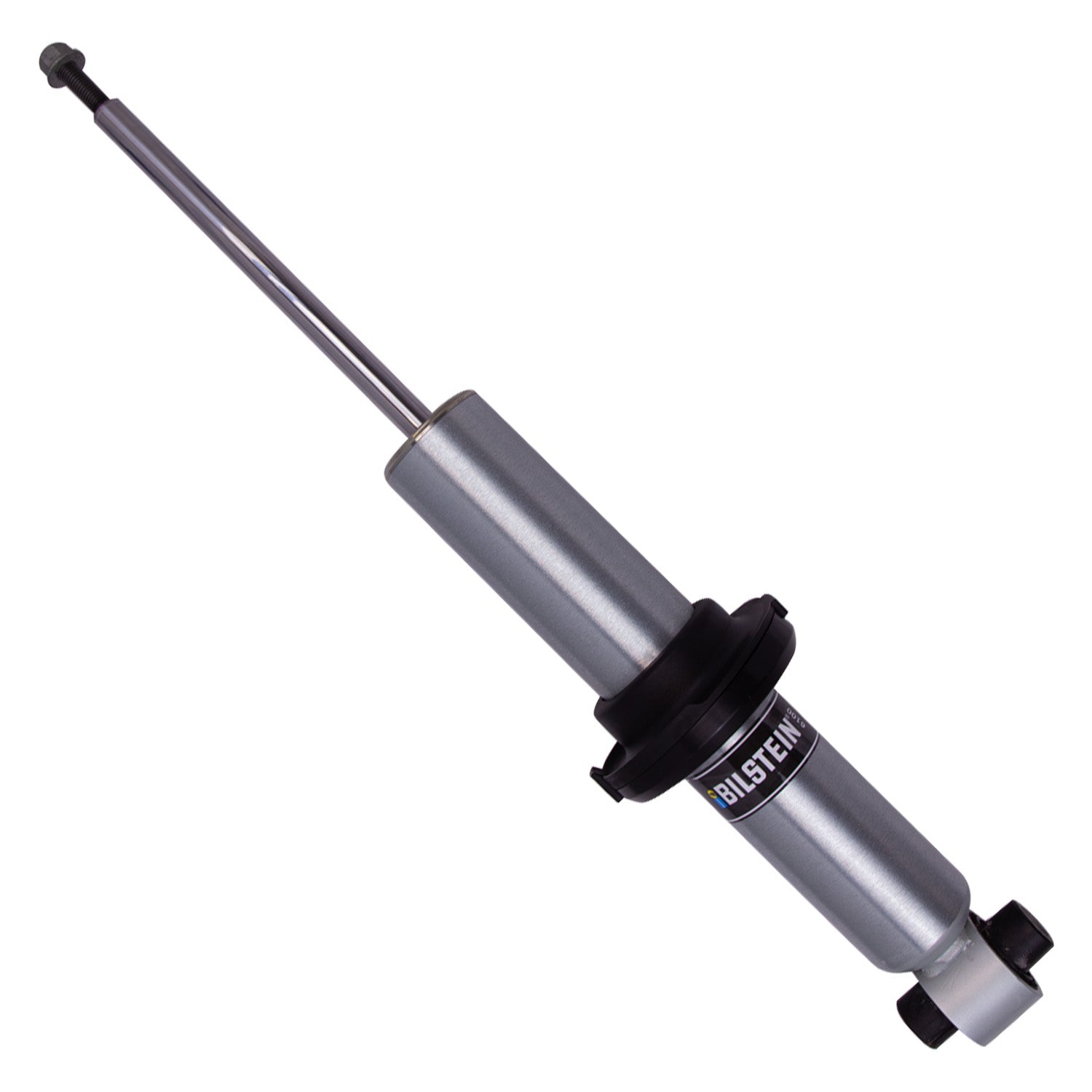

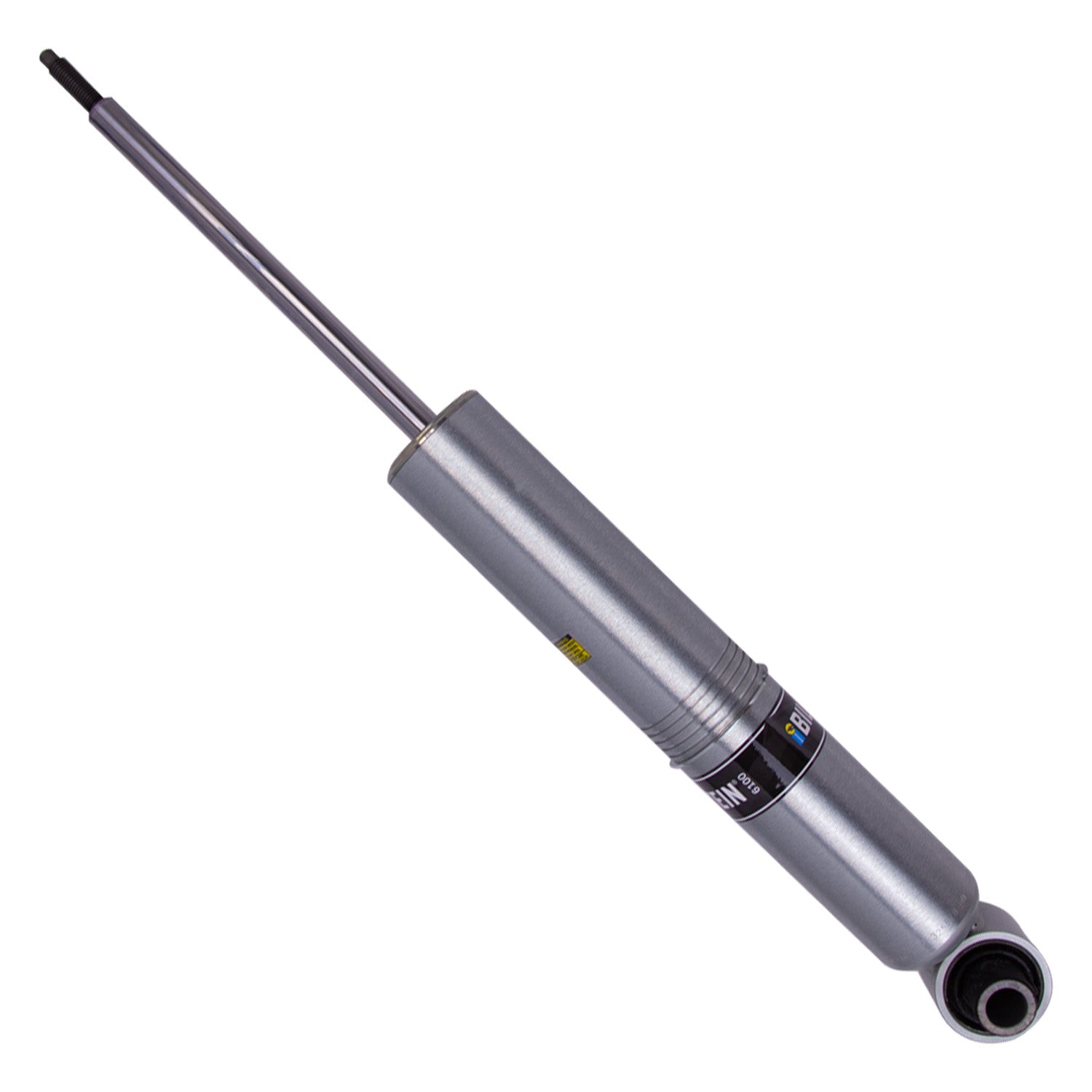

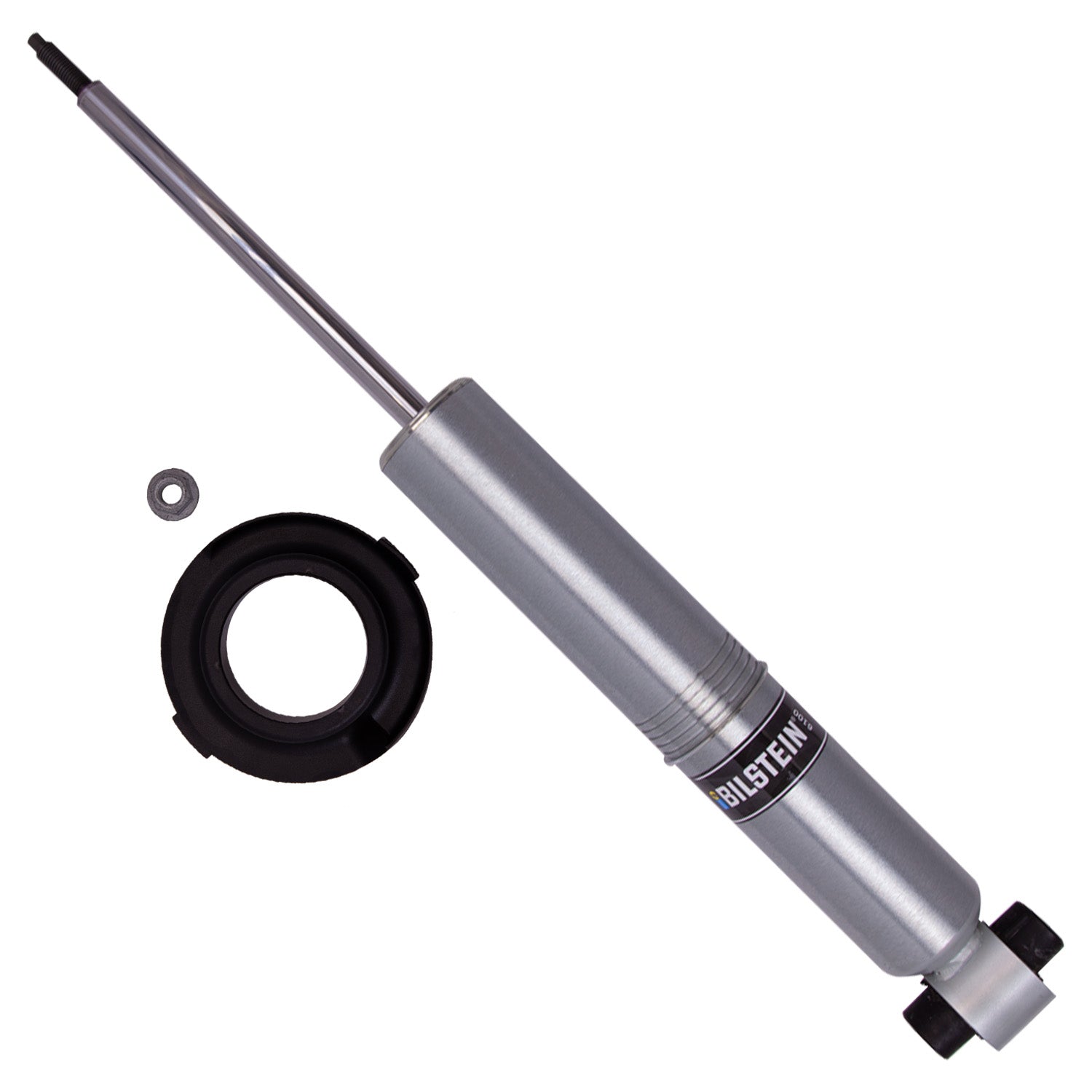

Bilstein B8 6100 (Ride Height Adjustable) shock absorbers are designed for trucks and SUV's with a front OE coilover style suspension. Multiple snap-ring grooves in the body allow for different spring seat positions, providing an adjustable ride height range of 0-3 inches (depending on application). The B8 6100 (Ride Height Adjustable) utilizes a large 2.65 OD body and 60mm digressive piston.
This will provide a smoother ride while offering more control over rough terrain. The B8 6100 (Ride Height Adjustable) will provide increased durability and heat dissipation, making them perfect for vehicles subjected to rugged roads and harsh conditions.
Large 60mm body for increased oil capacity, cooling, and long-term durability.
60mm digressive piston improves ride comfort and control over rough terrain.
Vehicle specific tuning.
| Internal design | Monotube |
|---|---|
| Collapsed length (mm) | 434.6 |
| Collapsed length (in) | 17.11 |
| Series | B8 6100 (Ride Height Adjustable) |
| Reservoir | No |
| Extended length (in) | 25.56 |
| Body design | Snap Ring Grooved Body (Coilover) |
| Boot included | No |
| Extended length (mm) | 649.3 |
| Lower mount type | Eye 20.2mm |
| Adjustable damping | Non-Adjustable |
| Finish | Zinc Plated |
| Upper mount type | Stem |

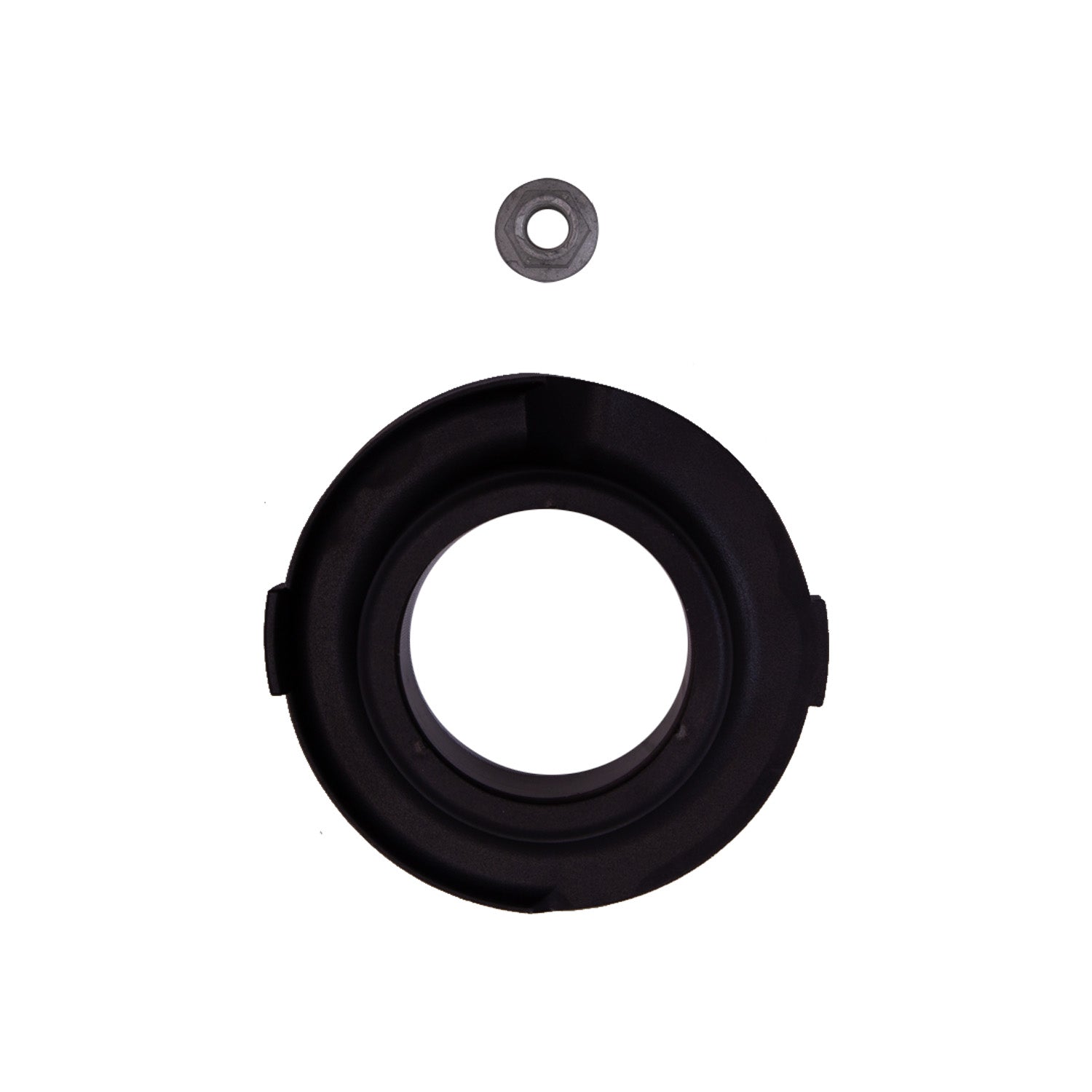

| Spring seat included | Yes |
| Piston diameter | 60mm |
| Shaft diameter | 18mm |
| Stroke/travel length (mm) | 214.6 |
| Stroke/travel length (in) | 8.45 |
| Part number | 24-325578 |
