SKU: SKU: BAJ507096

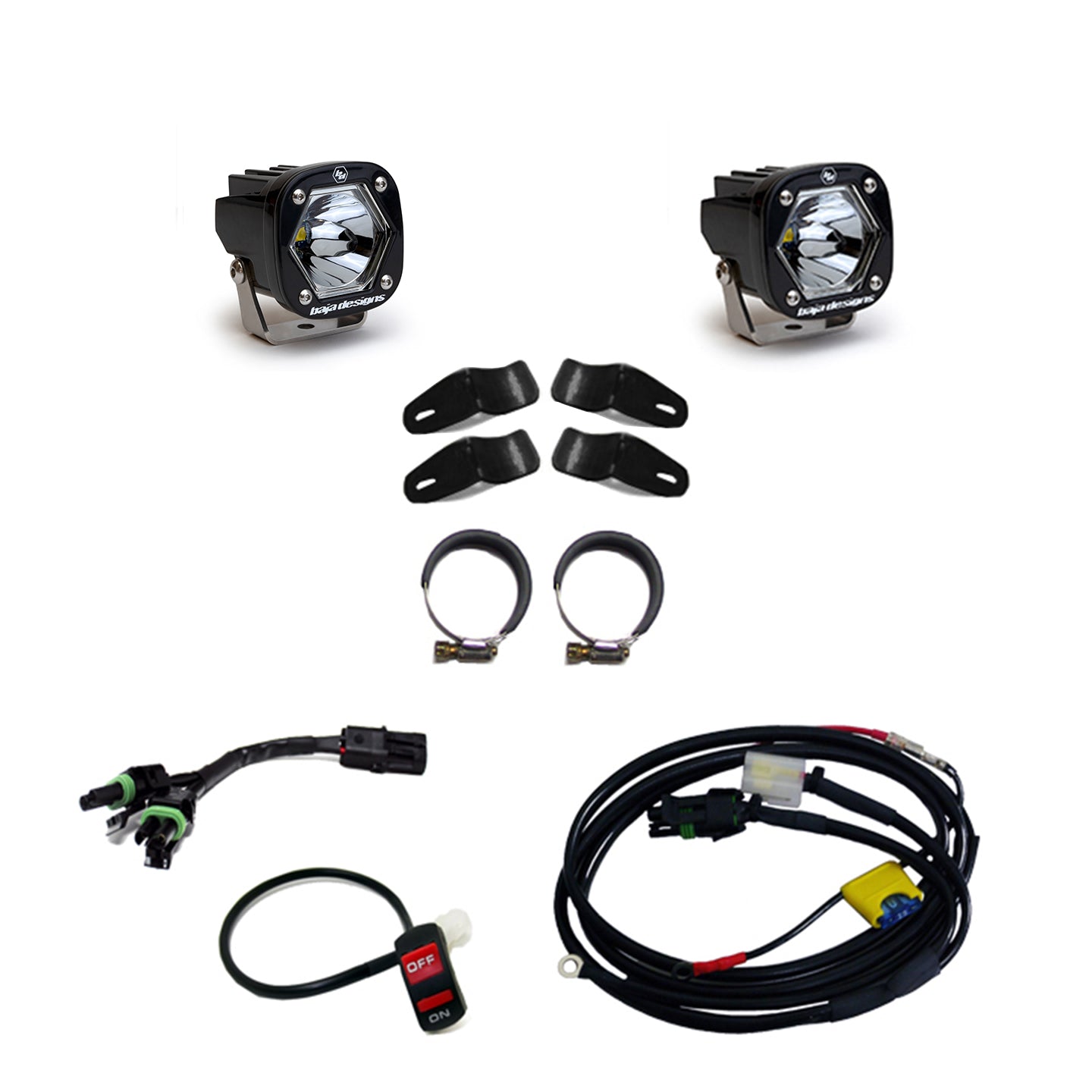

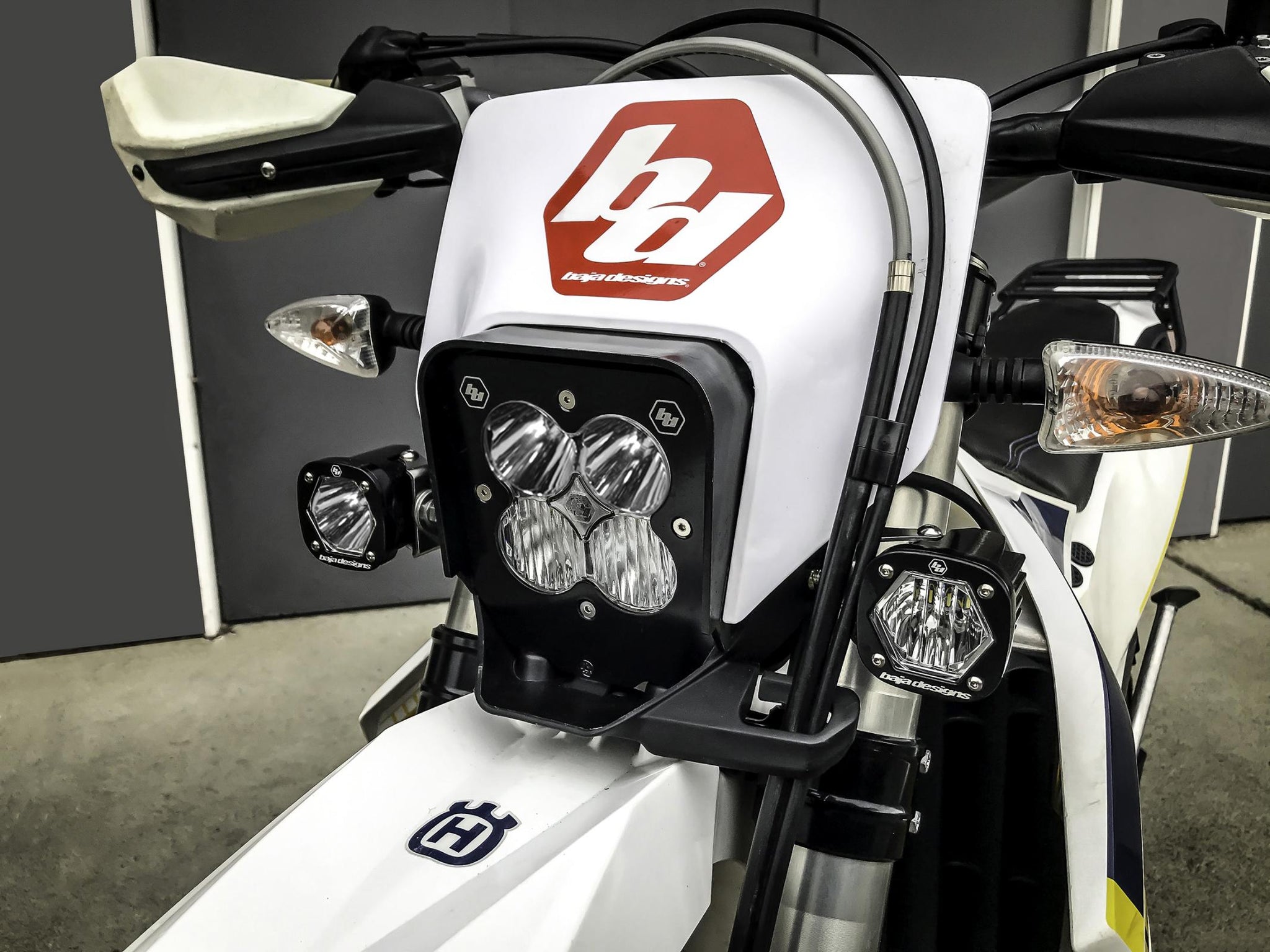

The Baja Designs S1 Moto kit was designed with the enthusiast in mind! This kit requires very little power to run and can be ridden off of as sole headlight or as an addition to our other headlight kits. The bracketry is sturdy and allows for you to mount off of the forks of most dirt bikes. Installation is a breeze and everything you need to take on the night is included! US Patent Number 11273751.
| Product Type | Moto S1 Universal Battery Auxiliary Light Kit |
| Voltage | 9-28 |
| Wattage (W) | 19.596 |
| Wiring Harness Description | Applicable Wiring for a bike with battery |
| Wiring Harness Included | Yes |
| Standards/Compliance (Durability) | Exceeds MIL-STD810G (Mil-Spec Testing) |
| Standards/Compliance (Impact Resistance) | IK10 Compliant (Mechanical Impact Testing) |
| Standards/Compliance (Water Resistance) | IP69K (Waterproof up to 9ft & Pressure Washable) |
| Depth (in.) | 2.100 |
| Height (in.) | 2.100 |
| Length (in.) | 2.100 |
| Weight (lbs.) | 0.400 |
| Amperage Rating (A) | 1.420 |
| Average Rated Life (hr.) | 49,930 |
| Beam Pattern | Spot |
| Bezel Material | Billet Machined Aluminum |
| Brightness (Lumens) | 2320 |
| Housing Color | Black |
| Housing Material | Hard Anodized and Powder Coated Cast Aluminum |
| Lens Color | Clear |
| Lens Material | Hardcoated Polycarbonate |
| Light Quantity | 2 |
| Lighting Modes | Beam |
| Lighting Quantity | 1 |
| Lighting Technology | LED |
| Lighting Type | Forward Projecting |
| Mounting Hardware Description | Mounting Brackets |
| Mounting Hardware Included | Yes |
| Mounting Hardware Material | Stainless Steel |
| Overvoltage Protection | Built-In |
Installation Instructions
Brochure / Owner's Manual
