SKU: SKU: MLR139310
Master Cylinder: Aluminum: Black: .750 In. Bore: 8 hole flange

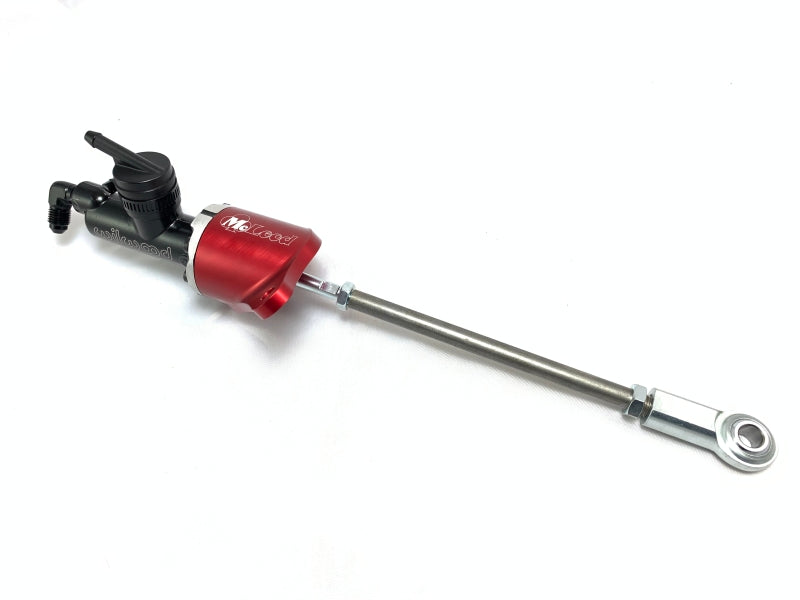

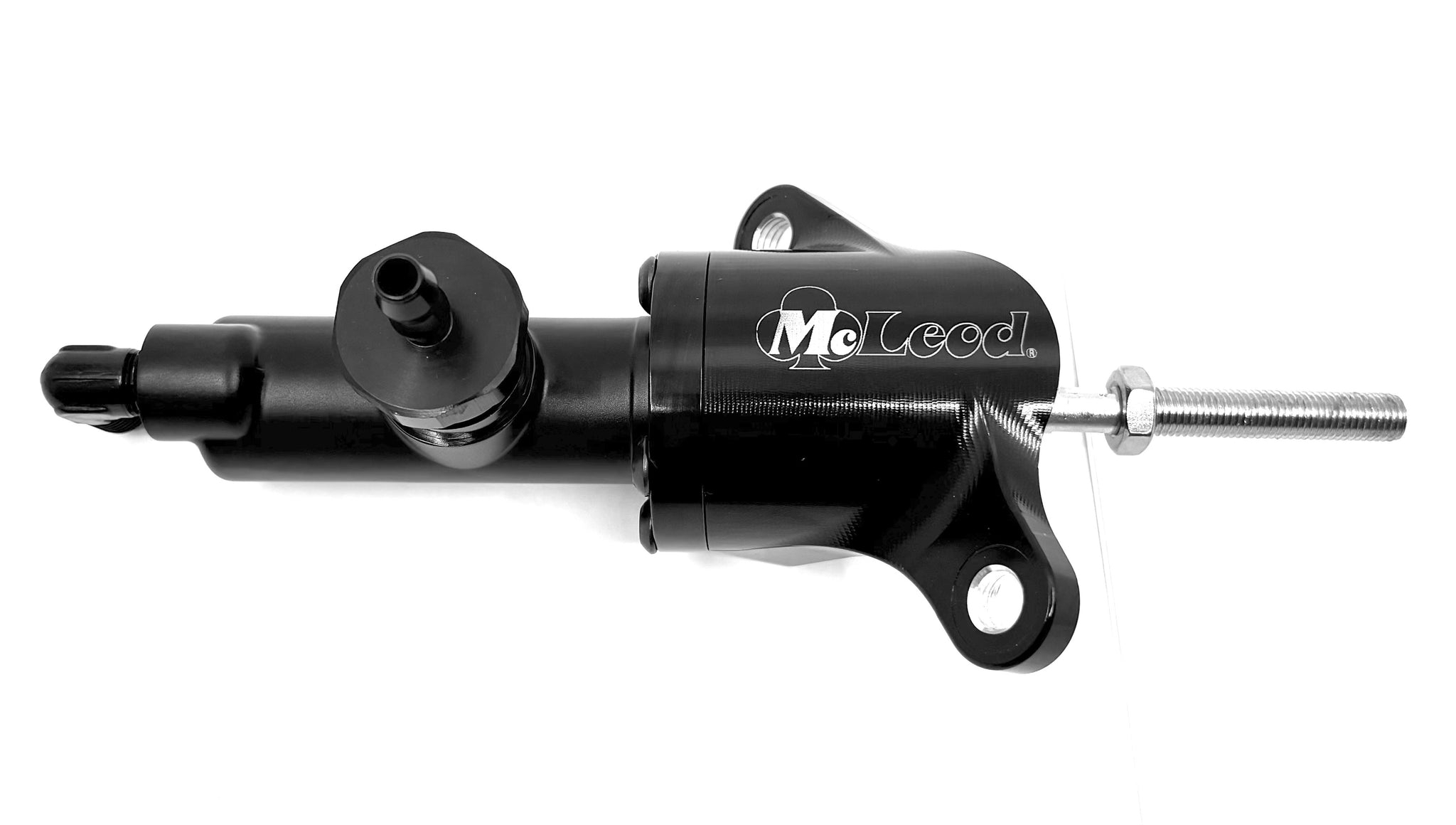

McLeod Racing 3/4" bore master cylinders are made exclusively by Wilwood Engineering. The compact remote mount clutch master cylinders are precision-machined from high-strength aluminum. They have been designed for limited space applications requiring the output capacity of a full size master cylinder. They can be mounted directly onto the master cylinder, or remotely mounted for more convenient service access. A 8 hole flange bolts to a proprietary McLeod Billet aluminum mounting flange to provide easy installation in any vehicle.
| Application | Universal |
| Master Cylinder Bore Size (in.) | 0.750 |
| Area (in) | 0.440 |
| Master Cylinder Stroke (in.) | 1.120 |
| Volume (cu in) | 0.49 |
| Type | Single Outlet |
| Outlets | 1 |
| Clutch Master Cylinder Material | Aluminum |
| Clutch Master Cylinder Finish | Black |
| Rod Thread | 5-16In.-24 |
| Quantity | Sold individually. |
