SKU: SKU: MLR651331-00-03
Mag Force: 1 Disc: Pin Drive: Ford 1958-76 BBF Fe 332-428: 1-1/16 x 10 Spline: 184T

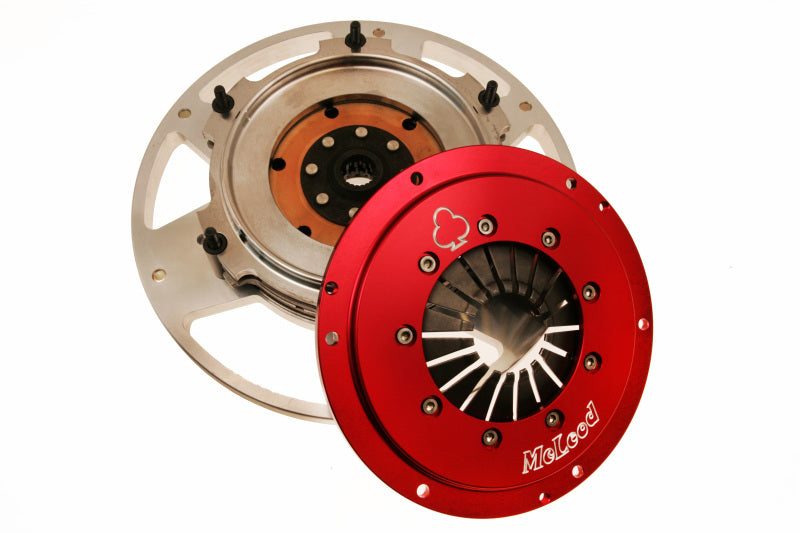

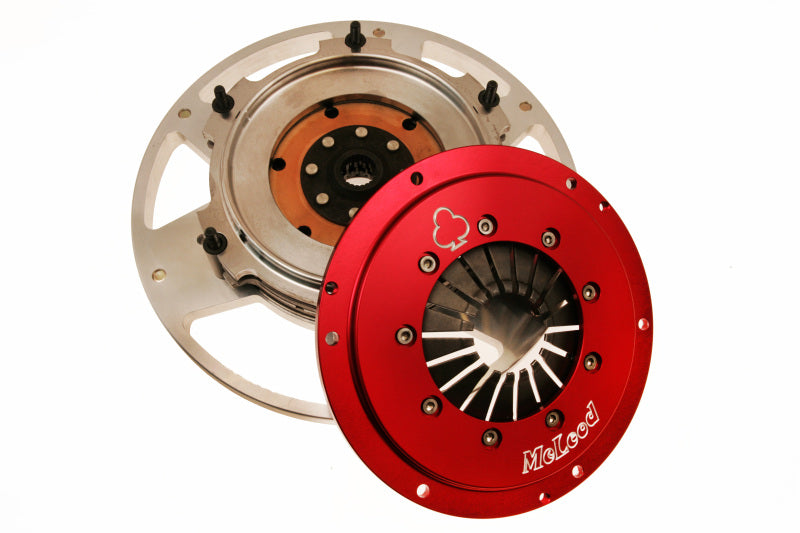

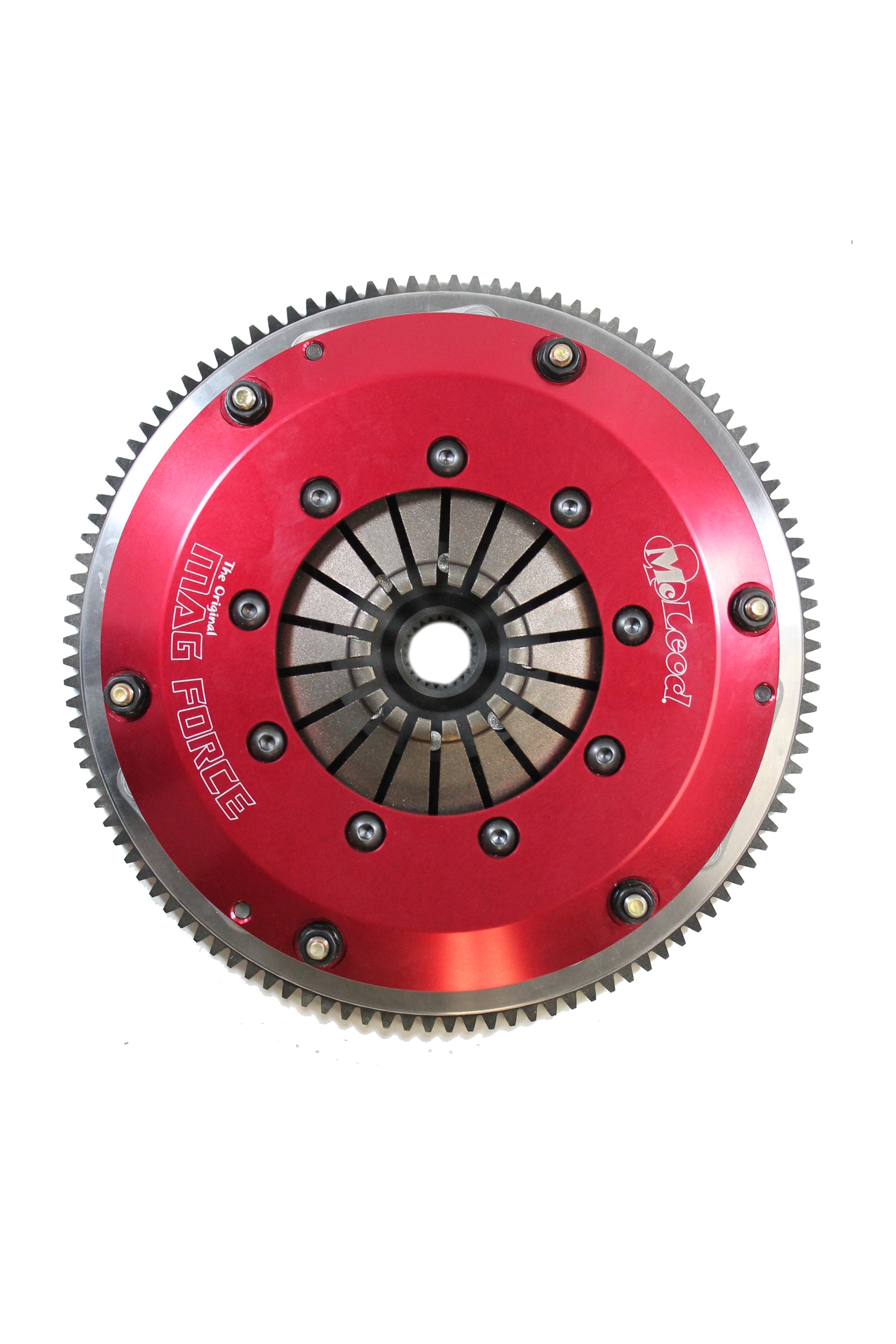

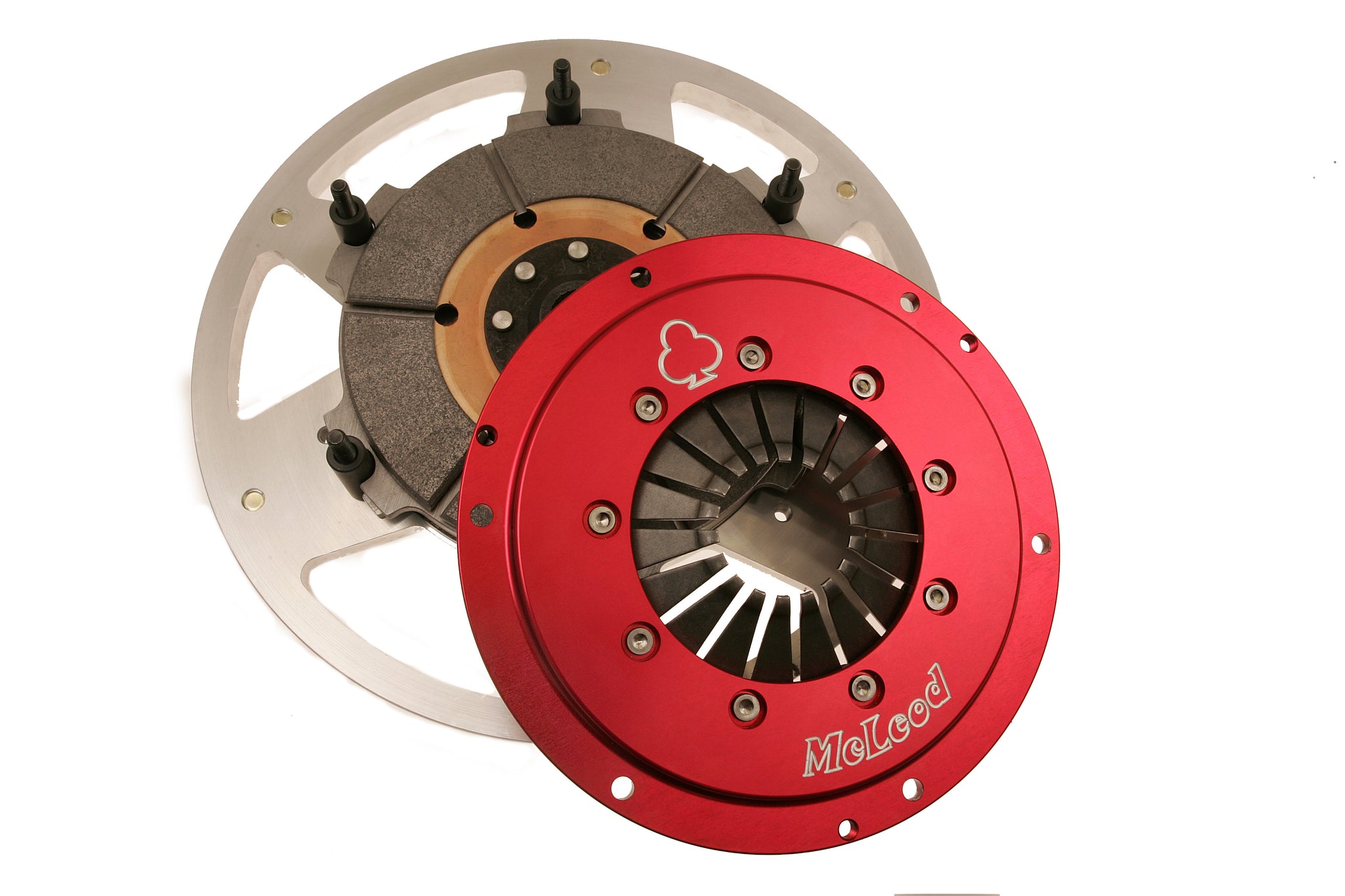

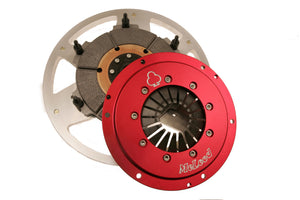

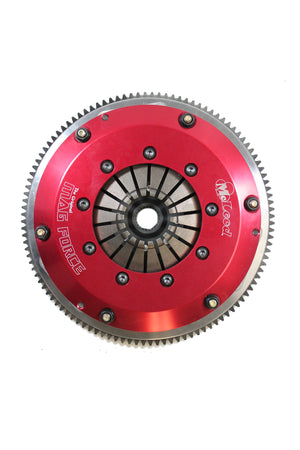

Mag Force - These Clutches Are the Perfect Choice for Racers Looking for A Lightweight, High Torque Capacity Unit. They Are Designed to Be Used for Oval Track, Road Racing and Dry Lakes Applications. These Units Are Offered in Single Disc (500Ft Tq) Double Disc (900 Ft Tq) And Triple Disc (1500 Ft Tq) Configurations to Meet the Harshest Needs in The Industry. These Units Rely on A Pin Drive Actuation System Where the Floater Plate Slides On 6 Evenly Spaced Pins for Quick Release in A Racing Application. Our Mag Force Units Also Offer Bolt on External Balance Weights for Most Applications.
| Disc Diameter (in.) | 8.000 |
| Input Shaft Diameter (in.) | 1.063 |
| Input Spline Quantity | 10 |
| Disc Material | Sintered Iron |
| Disc Style | Full face |
| Hub Style | Solid |
| Pressure Plate Style | Diaphragm |
| Counterweight Assist | No |
| Clutch Disc Quantity | 1 |
| Clutch Usage | Performance |
| Alignment Tool Included | Yes |
| Hardware Included | Yes |
| Pilot Bushing Included | No |
| Throwout Bearing Included | No |
| Flywheel Included | Yes |
| Flywheel Material | Billet aluminum |
| Crankshaft to Flywheel Bolt Quantity | 6-bolt |
| Ring Gear Tooth Quantity | 184-tooth |
| Engine Balance | Internal |
| Quantity | Sold as a kit. |
| Counter Weight Kit if Required | 563333 (sold separately) |
