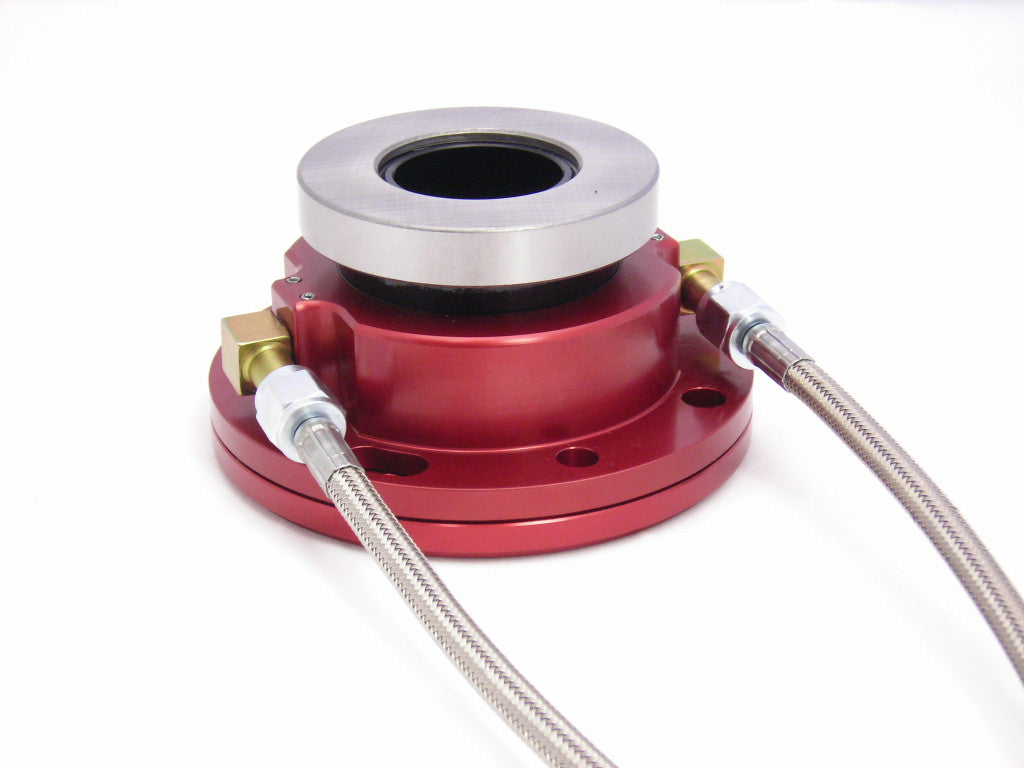

McLeod Hydraulic T.O. Bearing Blt On GM T5 Trans With 1 Piston - 1302-1

1300 Series Hydraulic Bearing: GM: Borg Warner: T-5: "A" Dimension: 2.31"-2.50": 4.680" Register

Mcleod 1300 Series Hydraulic Throw-Out Bearings Replace Your Oem Bearing Retainer With The Finest Hard Anodized Billet Aluminum. These High-Quality, Bolt-On Hydraulic Throw-Out Bearings Are Extremely Durable And Are Packaged With High-Pressure Stainless Steel Braided Lines And Premium Elbow Swivel Fittings, Making Their Install Much Easier. These Assemblies Are Available For Several Applications And May Be Used To Eliminate The Need To Fabricate Complex Clutch Linkage When Swapping Transmissions. Mcleod 1300 Series Hydraulic Throw-Out Bearings Offer Extreme Durability And Performance For Your Street Or Strip Machine.

• This unit is specific to a 2.31" to 2.50" "A" Dimension. If the customers "A" dimension does not fall into this range please use a 1300 series bearing with a adjustable height piston. For more info please call McLeod Tech at 714-630-2764
• • Hard Anodized Billet Aluminum. • Stainless Steel Lines. • Bleeder. • Slip on. • Self-adjusting.

Specifications

Note: This bearing will NOT work with a OEM self adjusting pressure plate. For more info please call McLeod Tech at 714-630-2764

Installation

• 1300 Series Hydraulic Throw-Out Bearing Instructions(9_2024).pdf
• How to Bleed Hydraulic Bearing(9_2024).pdf
