SKU: SKU: MLR560300

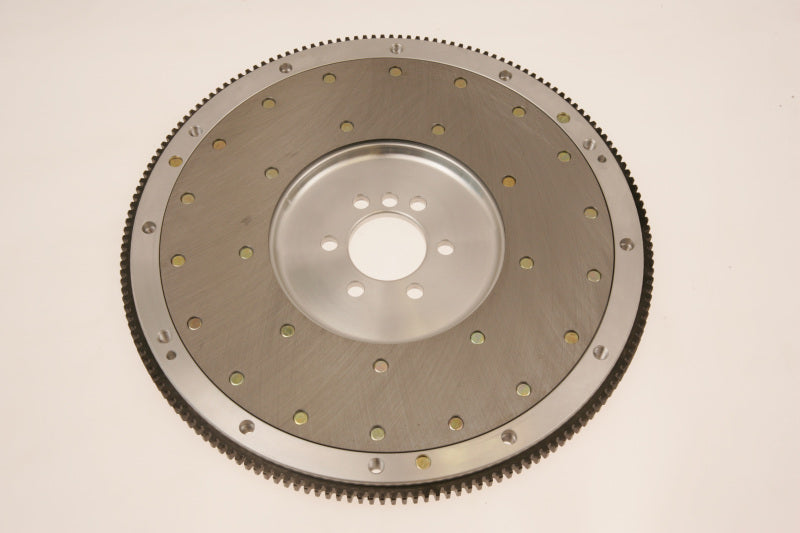

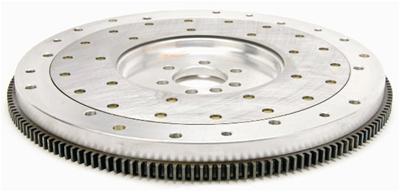

Flywheel: Aluminum: Chevrolet: 1955-85 SBC: 1970-90 BBC: 2pc Rear Main: Internal Balance: 153T: 15 lbs.
Mcleod Aluminum Flywheels Are Ideal For Numerous Applications Such As Supercharged Or Turbocharged Engines. These Flywheels Are Ideal For Higher Horsepower Engines And Combinations That Achieve Rapid Rpm Levels. Mcleod Aluminum Flywheels Are Cnc Machined From 6061 T6 Aluminum And Come With A Replaceable Steel Friction Plate And 1045 Steel Hardened Ring Gear.
| SFI 1.1 Approved | Yes |
| Pressure Plate Style | Borg & Beck/Diaphragm |
| Rear Main Seal Style | 2-piece |
| Counter Weight Kit if Required | 560222 (sold separately) |
| Crankshaft to Flywheel Bolt Quantity | 6-bolt |
| Engine 3 | 1991-Up BBC 1pc Seal 454, 502, 572 (Large Register) |
| Engine 2 | 1991-Up BBC 1pc Seal 454, 502, 572 (Large Register) |
| Engine 1 | 1955-85 SBC 2pc Seal (Large Register) |
| Disc Diameter (in.) | 10.500 |
| Weight | 15.000 lbs. |
| Flywheel Material | Billet aluminum |
| Marine Use | No |
| Replaceable Friction Surface | Yes |
| Engine Balance | Internal |
| Quantity | Sold individually. |
| Ring Gear Tooth Quantity | 153-tooth |
Note: Because of standard variances in OEM and Aftermarket manufacturing tolerances, the flywheel to crankshaft fit may have variations from slip-fit to slight interference. Tight fit at the crankshaft can be corrected by heating the flywheel to temporarily to expand the center bore for correct mounting. Caution, flywheel will be hot, handle with care.
