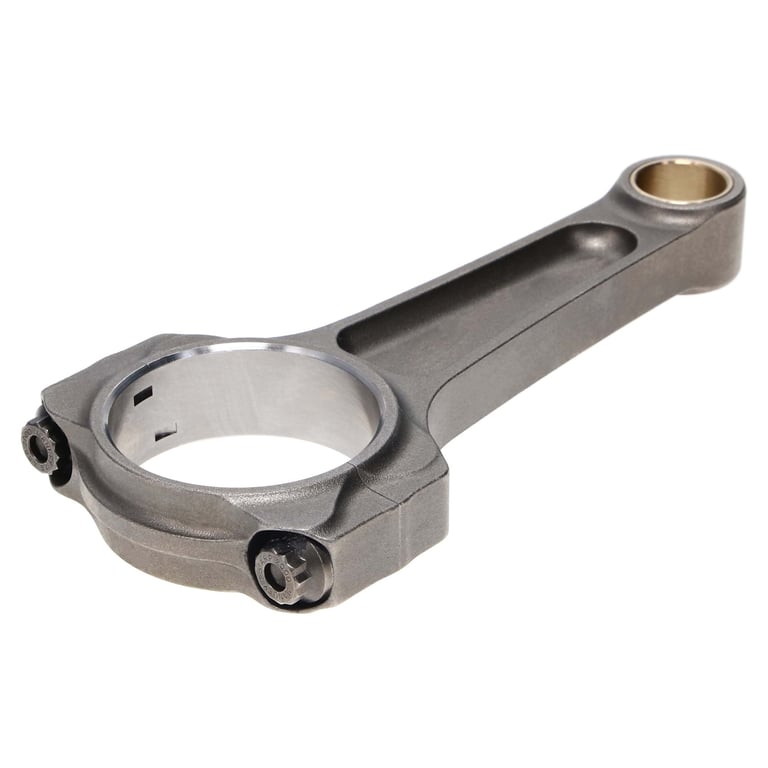

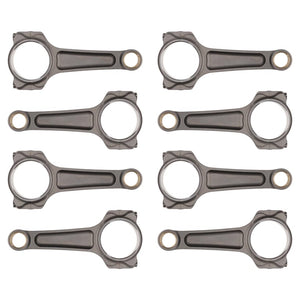

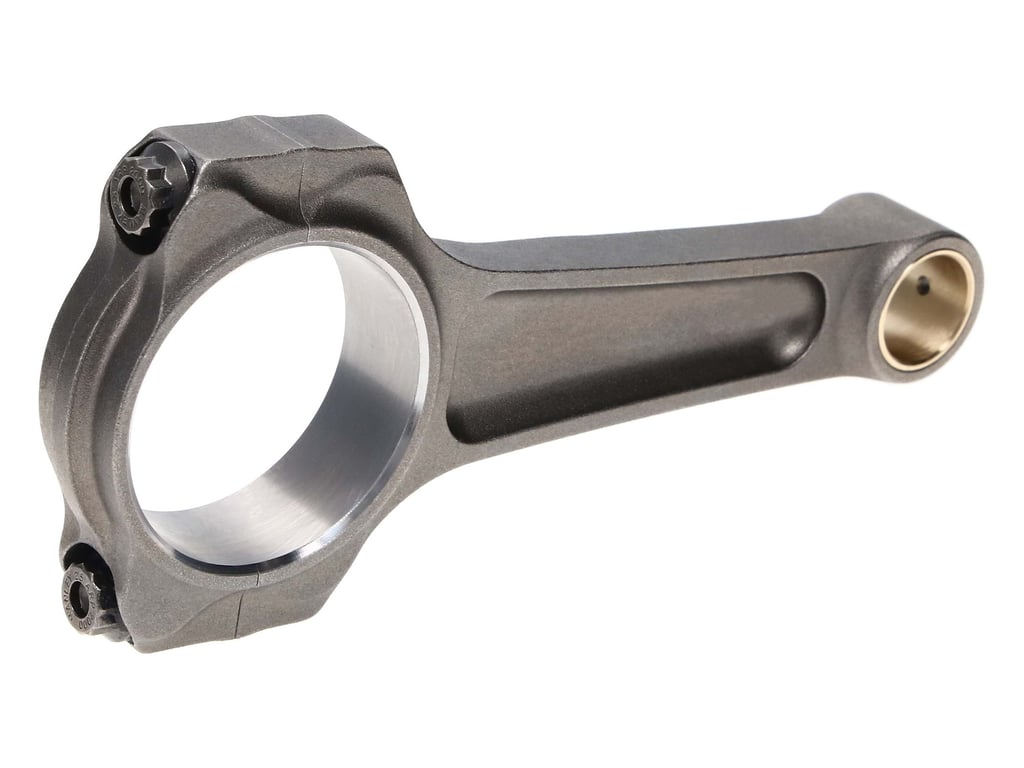

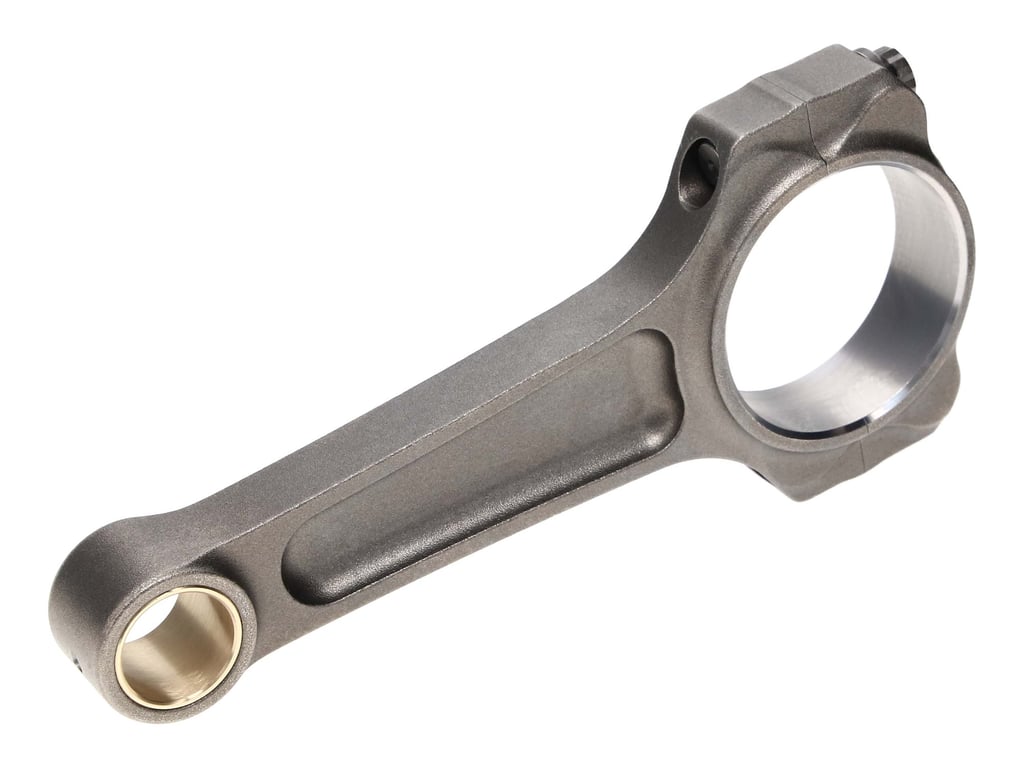

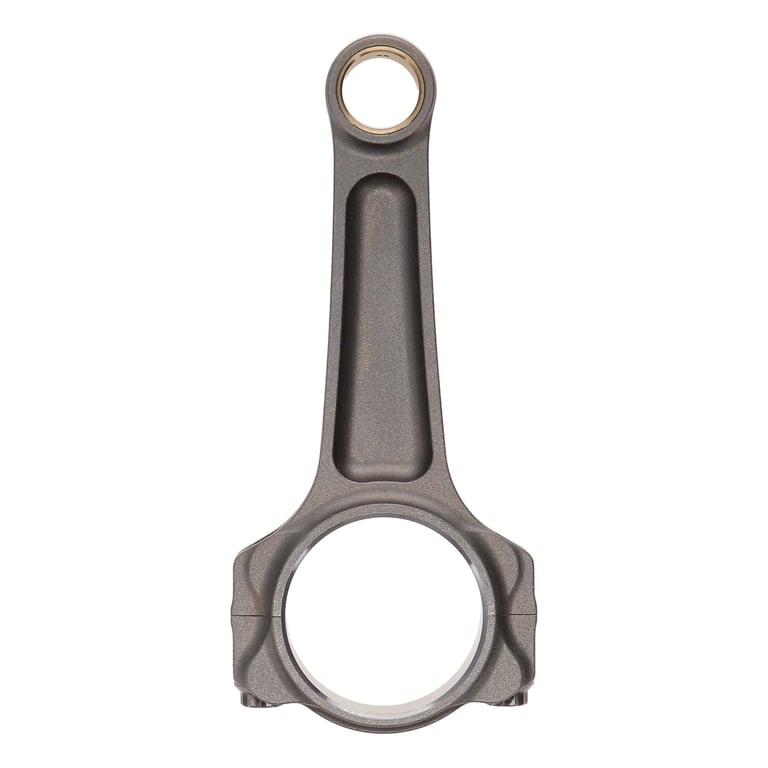

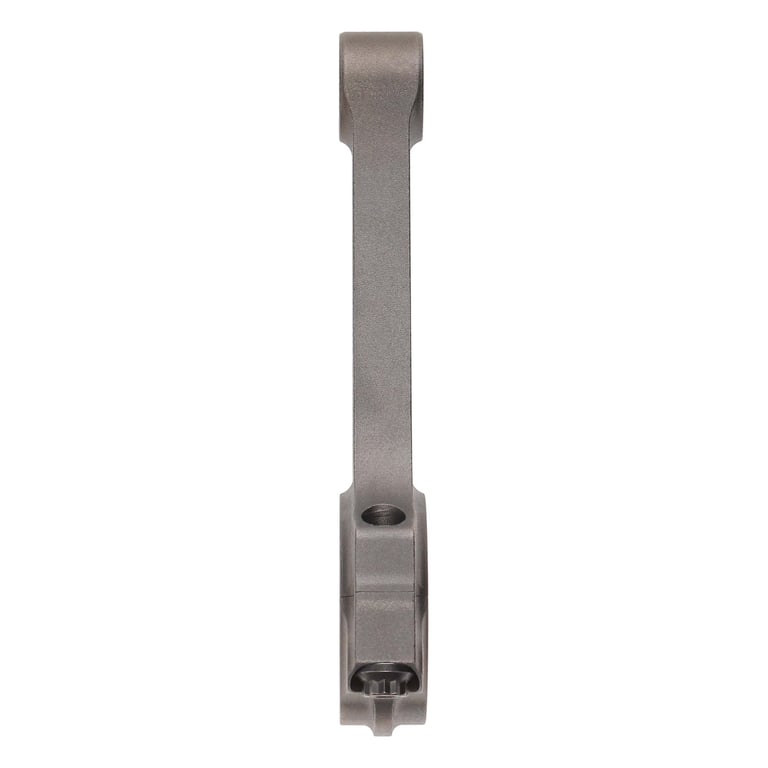

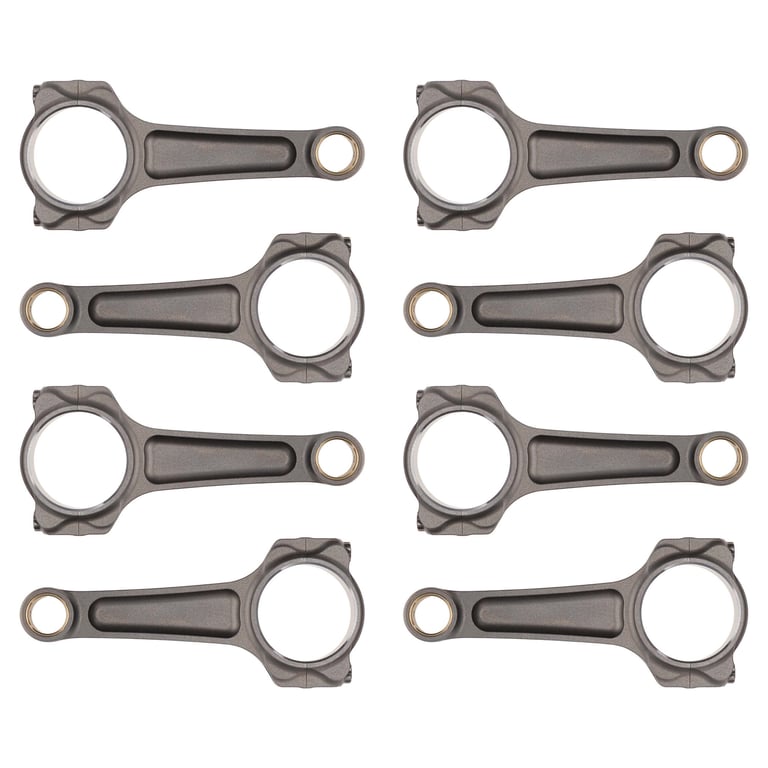

Manley Ford 4.6L Modular V8 Pro-Series I-Beam Connecting Rod Set - 5.850in Length - 14520R6-8

Manley's Pro Series I-Beam Connecting Rods represent the epitome of precision, performance, and quality. Engineered with meticulous attention to detail and a finely tuned manufacturing process, these rods are a testament to our commitment to excellence. Elevate your engine's capabilities and achieve outstanding results with these exceptional connecting rods.

Features

• Designed for ultimate performance with superior materials: forged 4340 or 300M vacuum degassed steel alloys
• NHRA Legal Certification for some SKUs - Stock and Super Stock
• Versatile Weight Options: Tour Lites, Light, Standard, Heavy

Specs

• Center To Center Length: 5.850 in
• Big End Bore: 2.125 in
• Pin Bore: 0.8671 in. (22mm Pin)

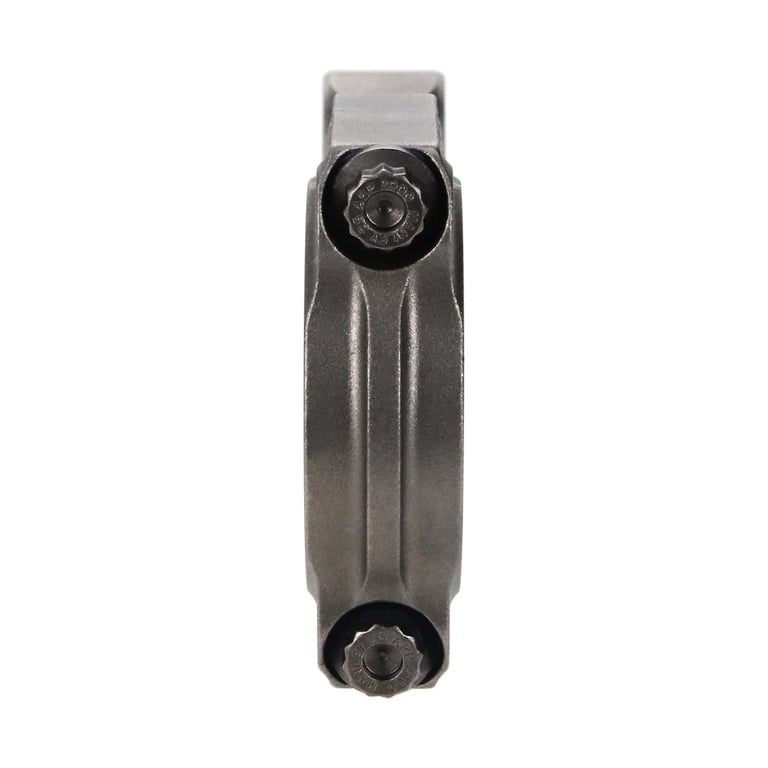

• 7/16" ARP 2000 Bolts
• Approx. HP Rating: 900+ (Oval) / 1200+ (Drag)
• Manley Connecting Rod, ROD-4.6L 5.850 I BEAM
• Connecting Rod Material: 4340
• Industry: Automotive
• Out of Stock Message: Call for Availability
• Prop 65 Yes/No: Yes
• Prop 65 (C, R or CR): CR
• Prop 65 - Short Label: Prop 65 Warning Label.JPG
• Engine Type: ICE
• Make: Ford
• Engine: 4.6L Modular
• Product Market: Domestic
• Average Gram Weight: 690
• Big End Bore: 2.125
• Center To Center Length: 5.850
• Journal Size: 2.000
• Connecting Rod Journal Diameter: 2.000
• Length: .083 shorter
• Pin End Bore: 0.8671
• Wrist Pin Diameter: 0.866
• Connecting Rod Series: Pro Series I-Beam
