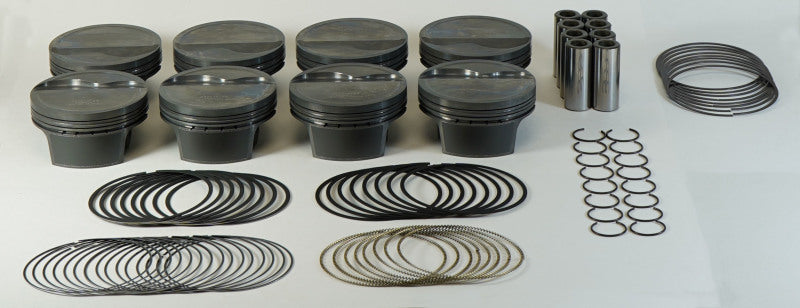

Mahle MS Piston Set GM LS 383ci 3.905in Bore 4in Stroke 6.125in Rod .927 Pin -6cc 10.8 CR Set of 8 - 930219205

SKU: SKU: MHL930219205

Piston (set) - LS 5.7L FLAT TOP & DISH — 383cid 3.905 x 1.105CH, 4.000stroke,6.125rod,0.927pin,-6.0cc,386g,11.0CR, 4032

Application

Chevrolet LS 383 cu in.

Features & Specs

  • Compatible with LS1/2/6 style cathedral port heads
  • Clip Style: Round Wire
  • Pin Wall Thickness: 0.168
  • UCR Material: 9254 Steel
  • UCR Coating: HV385
  • Rings Included: Y

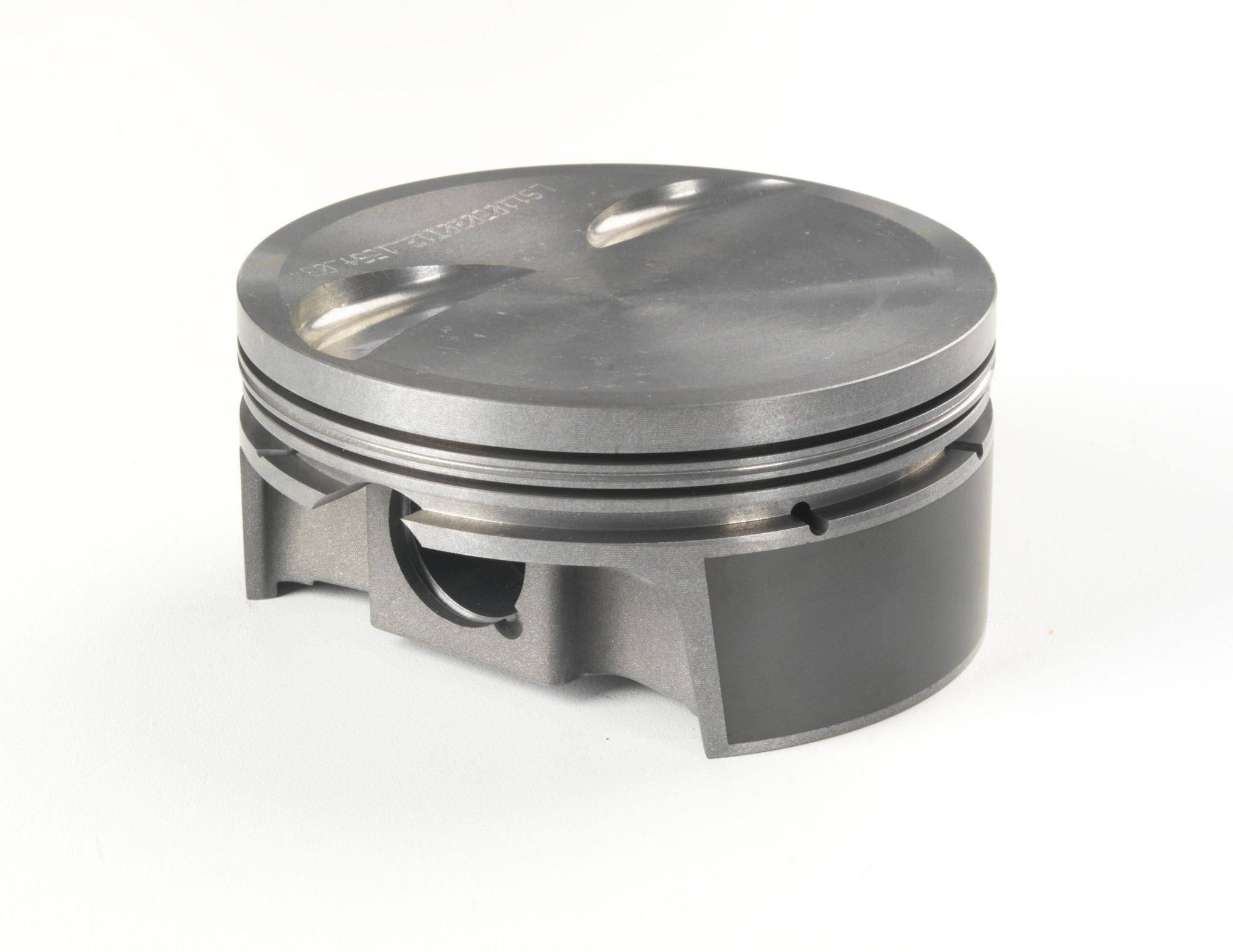

  • Piston Style: Flattop, w/ 2 valve reliefs
  • Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
  • Piston Material: Forged, 4032
  • Piston Mass: 386g
  • Pins Included: Y
  • Pin Style: Floating
  • Clips Included: Y
  • Pin Material: Steel
  • Pin Mass: 118g
  • Pin Length: 58.1mm
  • Pin Diameter: 23.55mm
  • Package Quantity: Sold as a set of 8
  • OCR Thickness: 2.0mm
  • OCR Tension: Standard
  • OCR Material: Chrome plated stainless steel
  • LCR Thickness: 1.0mm
  • LCR Material: 9254 Steel
  • LCR Coating: Phosphate
  • File Fit: Y
  • Crown Volume: -6.0cc
  • UCR Thickness: 1.0mm

Country of Origin: US  |  Package: Sold as a set of 8
