Mahle MS Piston Set Chevy SB 403ci 4.135in Bore 3.5/3.75 Stroke 6.125/6 Rod .927 HD Pin 9cc 13.9CR - 197754535

Piston (set) - SMALL BLOCK CHEVY 23 Deg DOME — 403cid 4.135 x 1.125CH, 3.500stroke,6.125rod,0.927pin,9.0cc,450g,13.1CR, 2618

Application

Chevrolet Small Block 403 cu in.

Features & Specs

• Lateral gas ports, Coatings: Phosphate + Grafal
• Clip Style: Round Wire
• Pin Wall Thickness: 0.168
• UCR Material: 9254 Steel
• UCR Coating: HV385
• Rings Included: Y

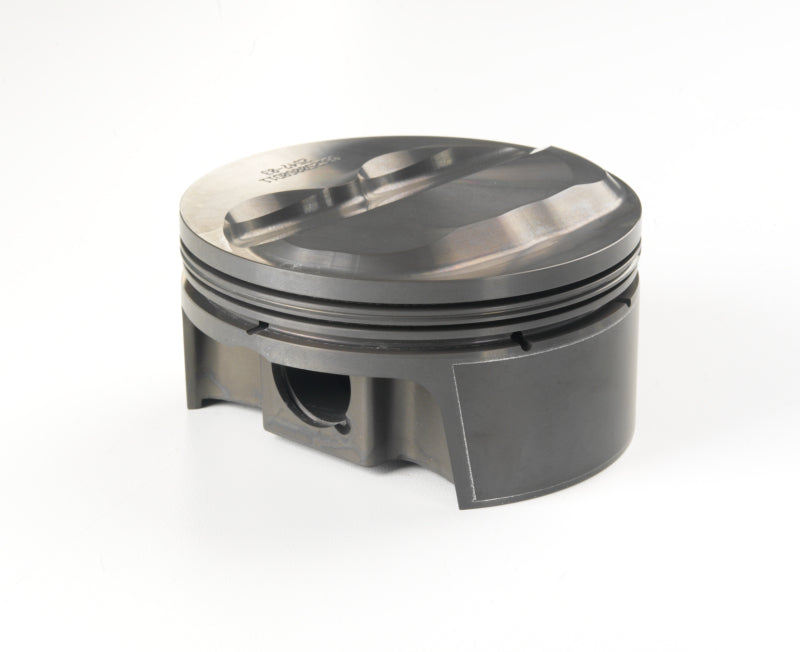

• Piston Style: Dome, w/ 2 valve reliefs
• Piston Ring Thickness: 1.0mm, 1.0mm, 2.0mm
• Piston Material: Forged, 2618
• Piston Mass: 450g
• Pins Included: Y
• Pin Style: Floating
• Clips Included: Y
• Pin Material: Steel
• Pin Mass: 118g
• Pin Length: 58.1mm
• Pin Diameter: 23.55mm

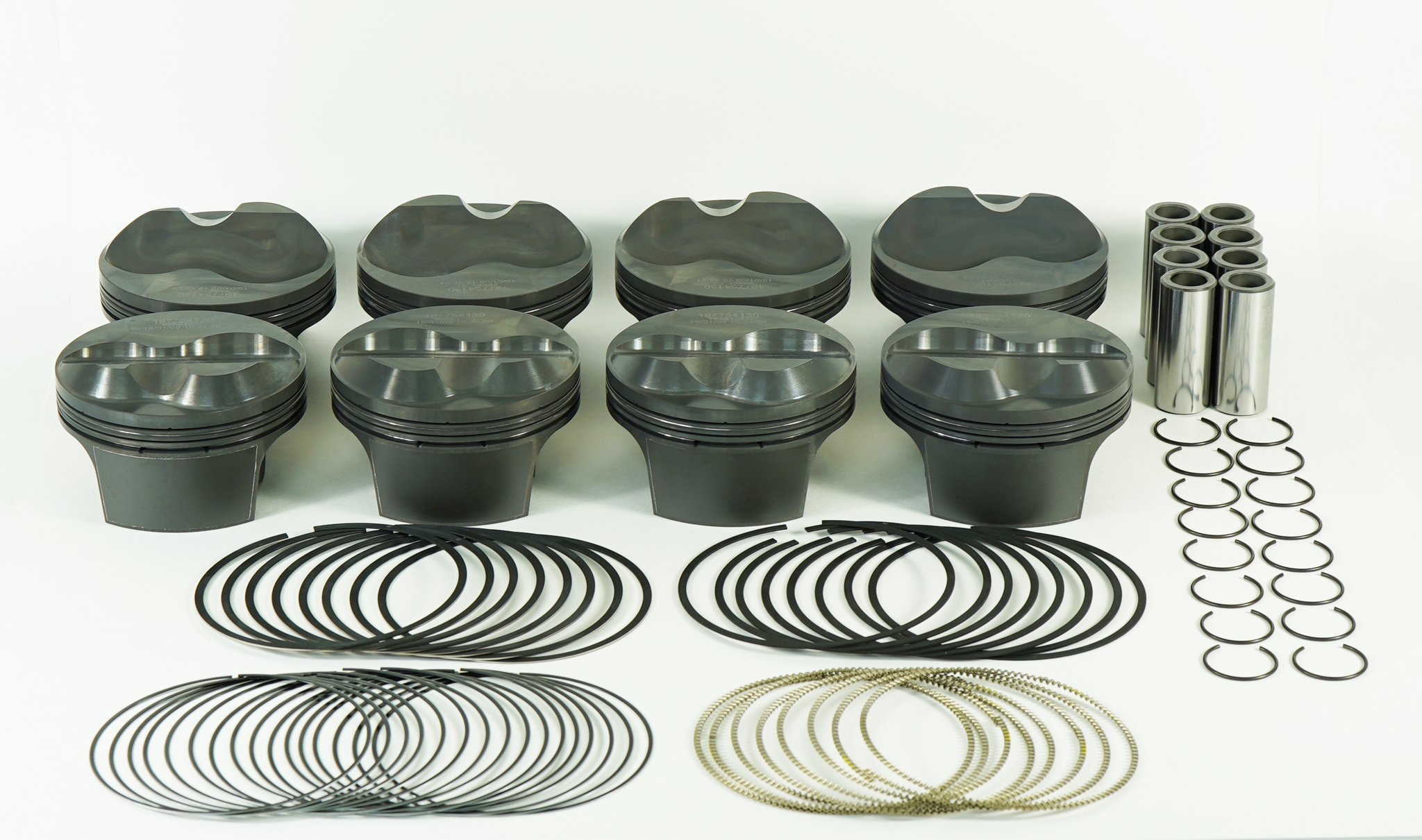

• Package Quantity: Sold as a set of 8
• OCR Thickness: 2.0mm
• OCR Tension: Standard
• OCR Material: Chrome plated stainless steel
• LCR Thickness: 1.0mm
• LCR Material: 9254 Steel
• LCR Coating: Phosphate
• File Fit: Y
• Crown Volume: 9.0cc
• UCR Thickness: 1.0mm

Country of Origin: US  |  Package: Sold as a set of 8
