ICON 11-16 Ford F-250/F-350 Front 7in Box Kit - 67030

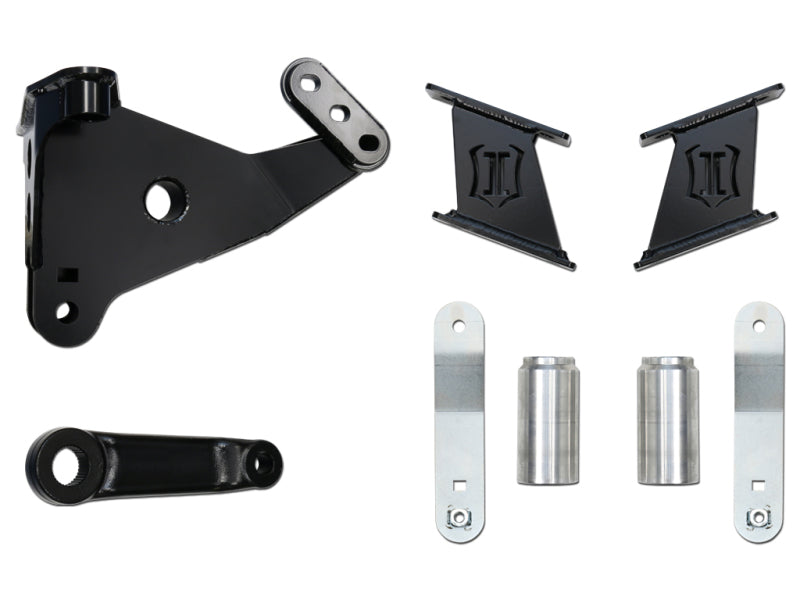

The ICON Vehicle Dynamics 2011-2016 Ford F-250 and F-350 Super Duty 7" Lift Box kit contains many of the miscellaneous parts required to lift the vehicle when using an ICON 7” lift suspension system. This kit includes a fabricated front track bar drop bracket made from CNC laser cut and brake formed .25" steel plate for strength and to ensure proper track bar angle and axle placement. A 4" drop pitman arm corrects steering geometry for the lift height range and eliminates bump steer common when the steering drag link and track bar are not parallel. A fabricated steering stabilizer drop bracket allows a stock replacement steering stabilizer shock to be attached to the drag link and be fully compatible with the drop pitman arm. Front sway bar drop brackets correct sway bar angle and prevents bind through the full range of suspension travel. All fabricated components are coated with a semi-gloss black powder coat finish for corrosion resistance and backed up with ICON's Limited Lifetime Warranty.

Features

• Essential components for install of ICON 7" lift suspension systems
• Track bar bracket fabricated from CNC laser cut and brake-formed .25" steel plate
• 4" drop pitman arm
• Fabricated steering stabilizer drop bracket allows stock replacemnt steering stabilizer fitment
• Front sway bar drop brackets prevent sway bar bind
• CNC machined aluminum bump stop spacers
• Brake line drop brackets simplify installation by reusing stock brake lines
• Semi-gloss black powder coat finish for all fabricated components
• Fully bolt on installation with all hardware included
• Protected by ICON's Limited Lifetime Warranty

Specifications

Documents

• I67030_REVC.pdf
