SKU: SKU: EDE15270

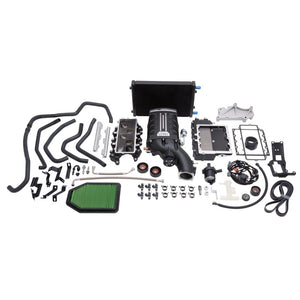

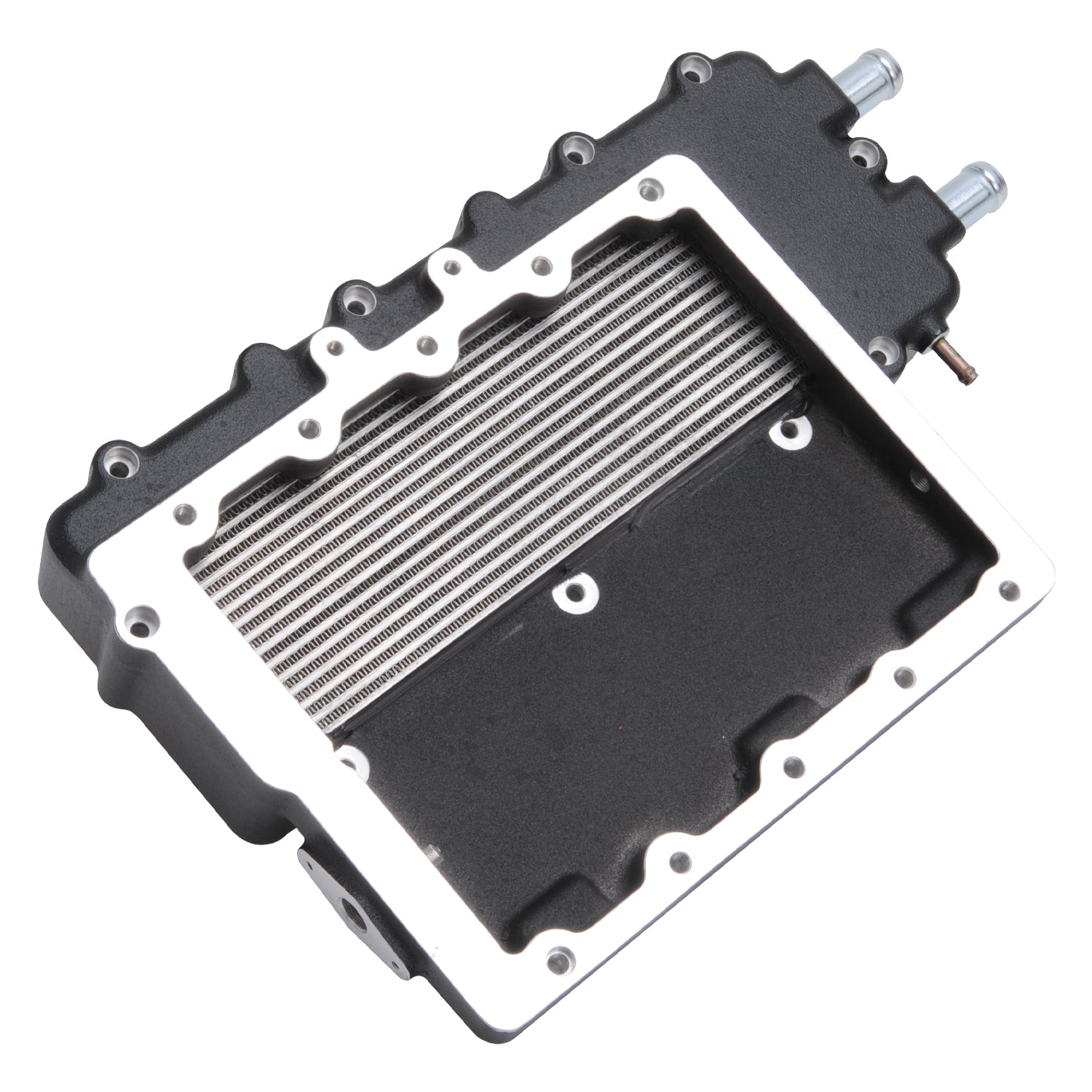

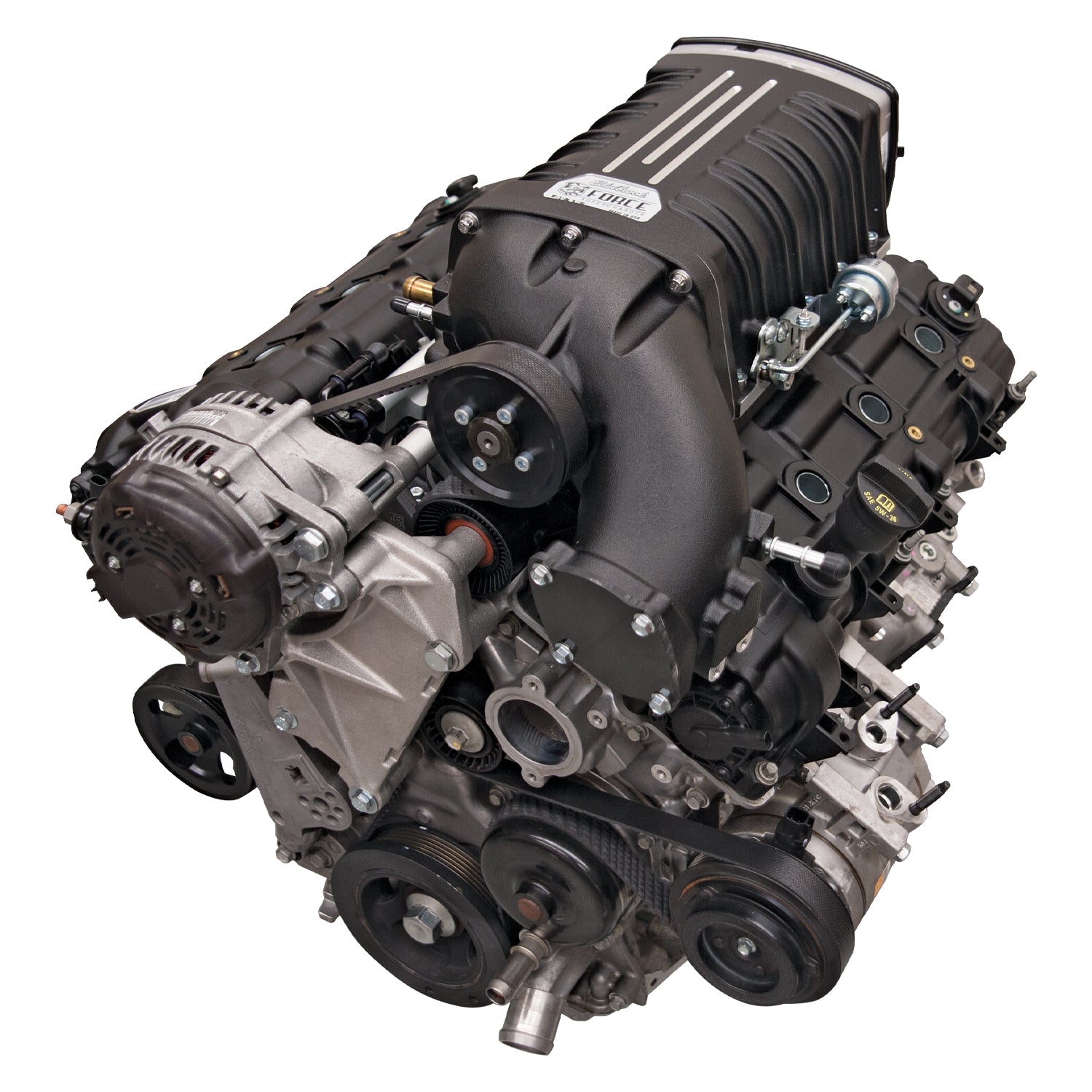

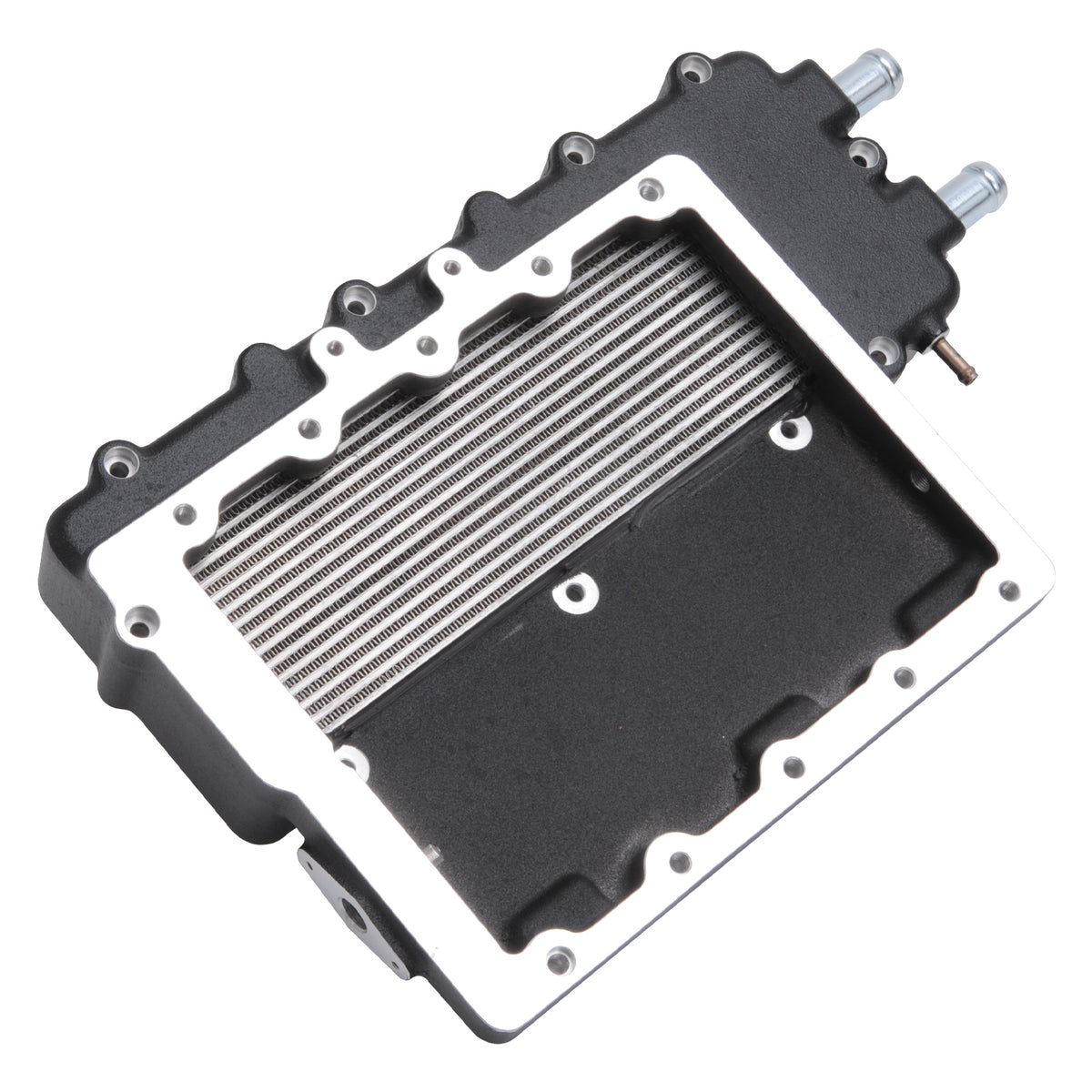

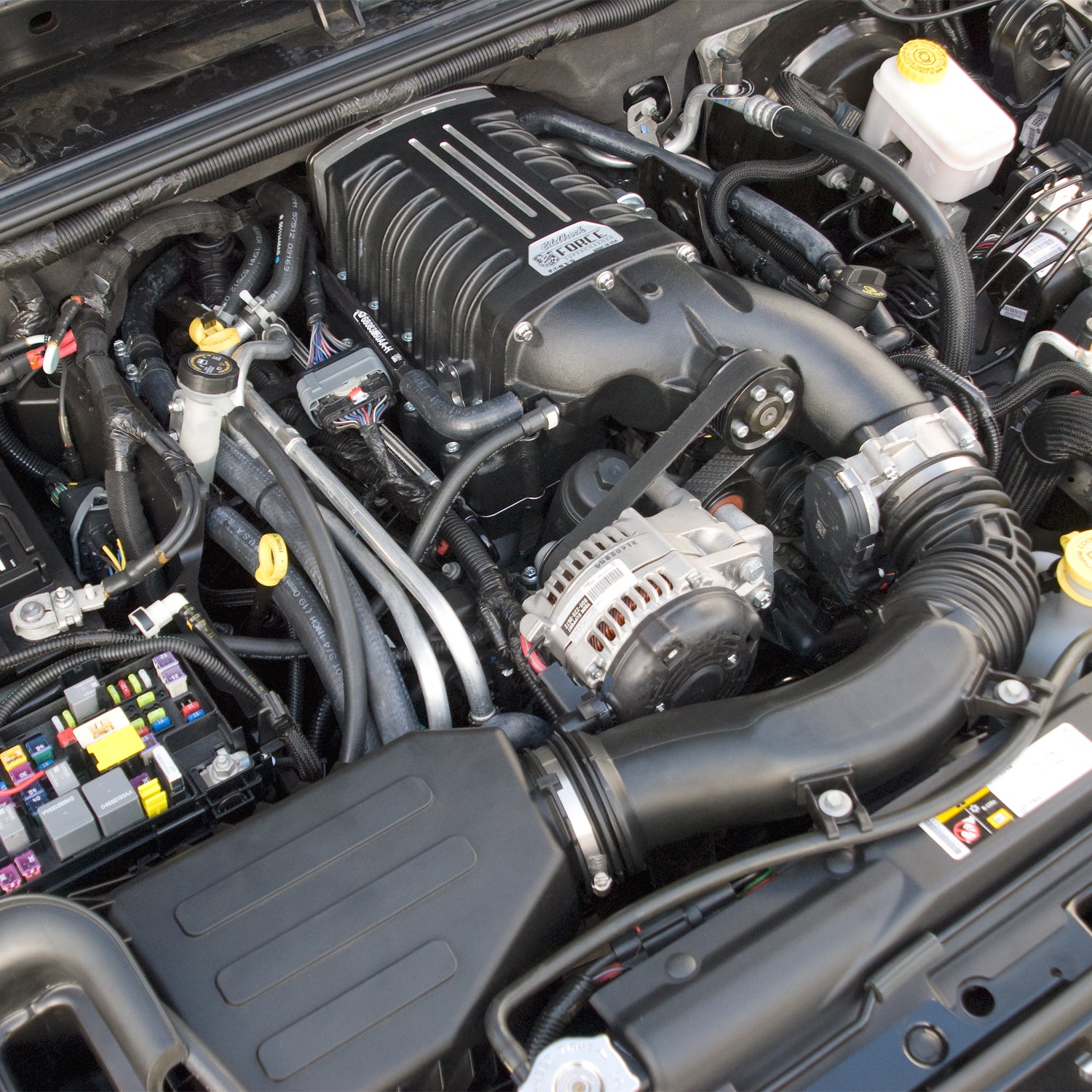

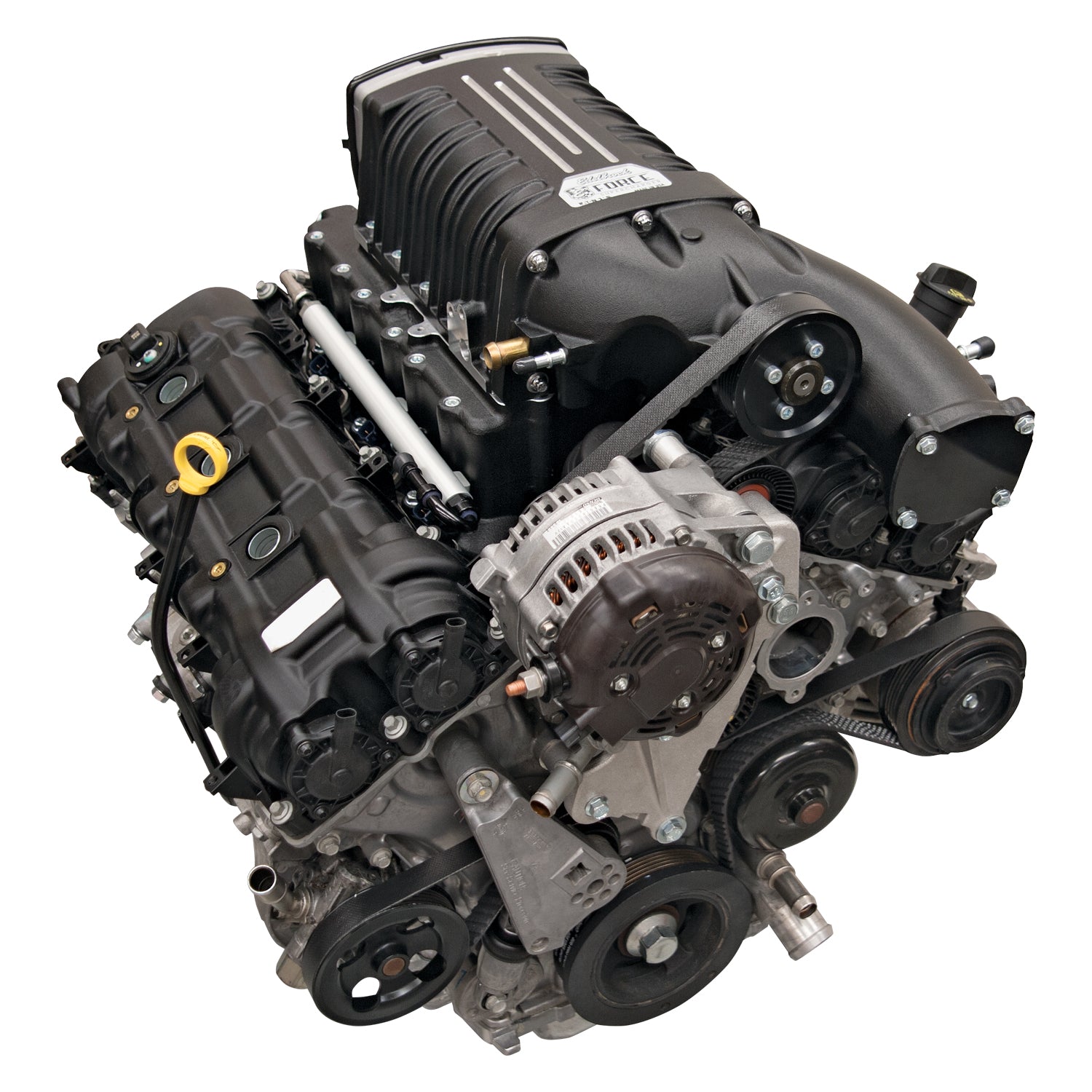

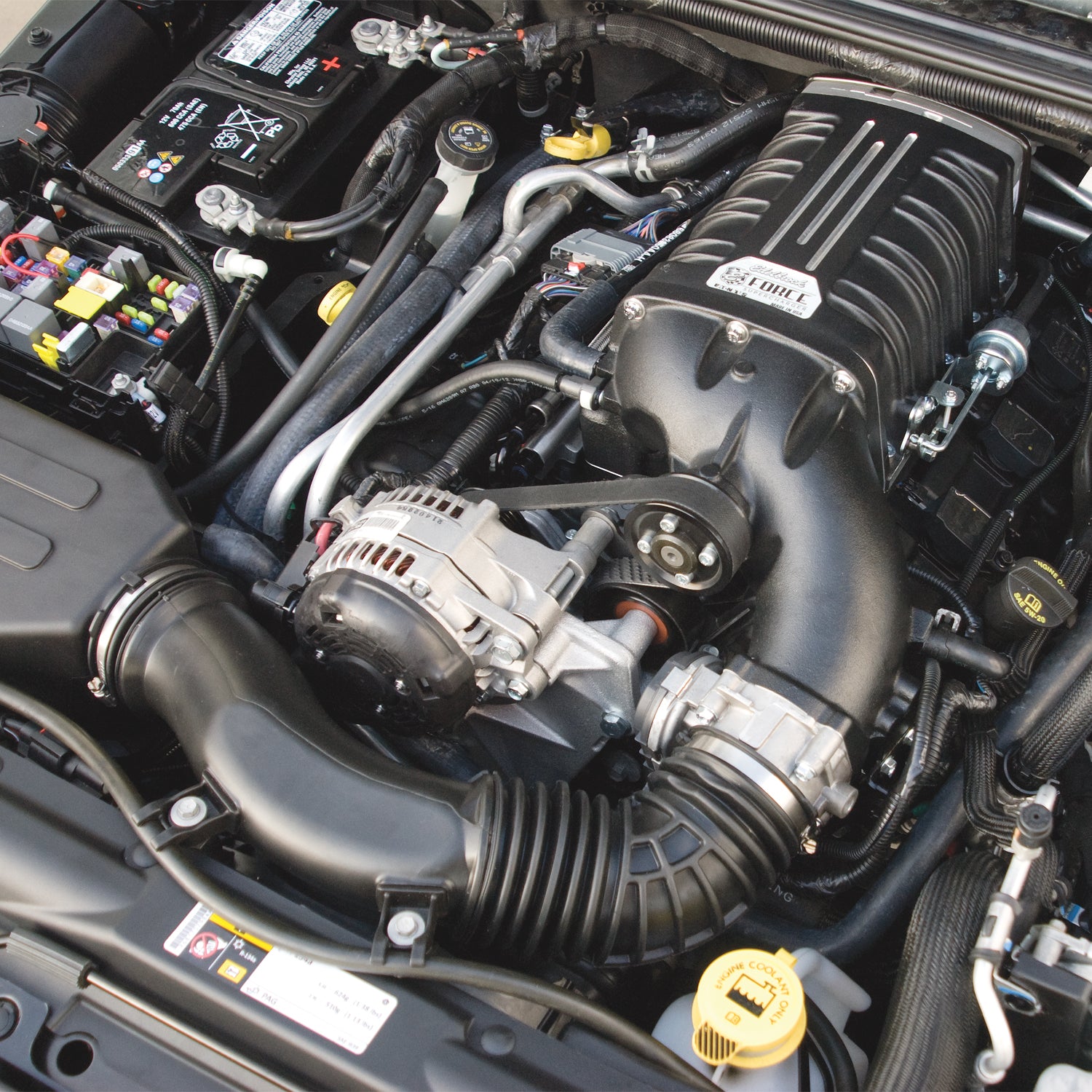

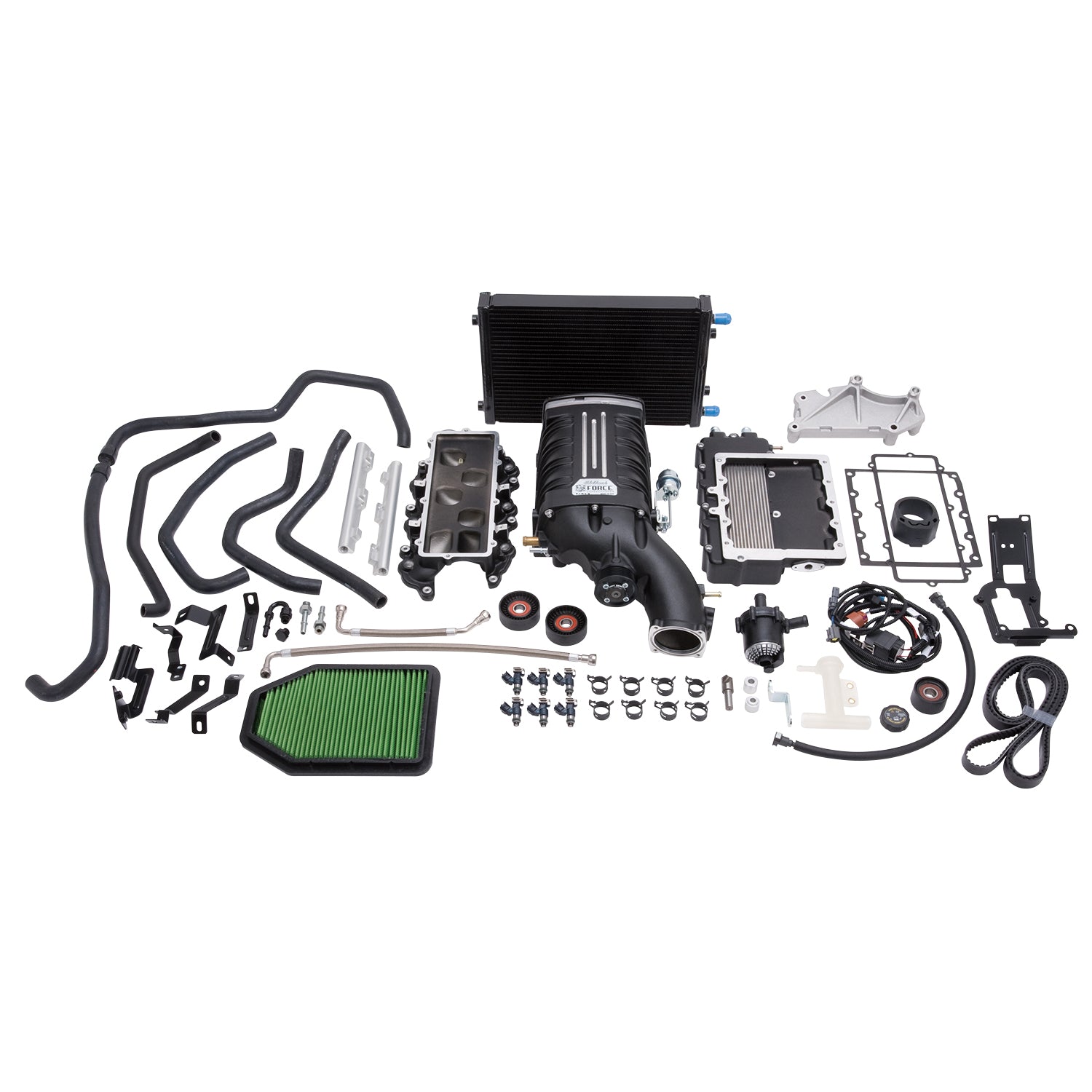

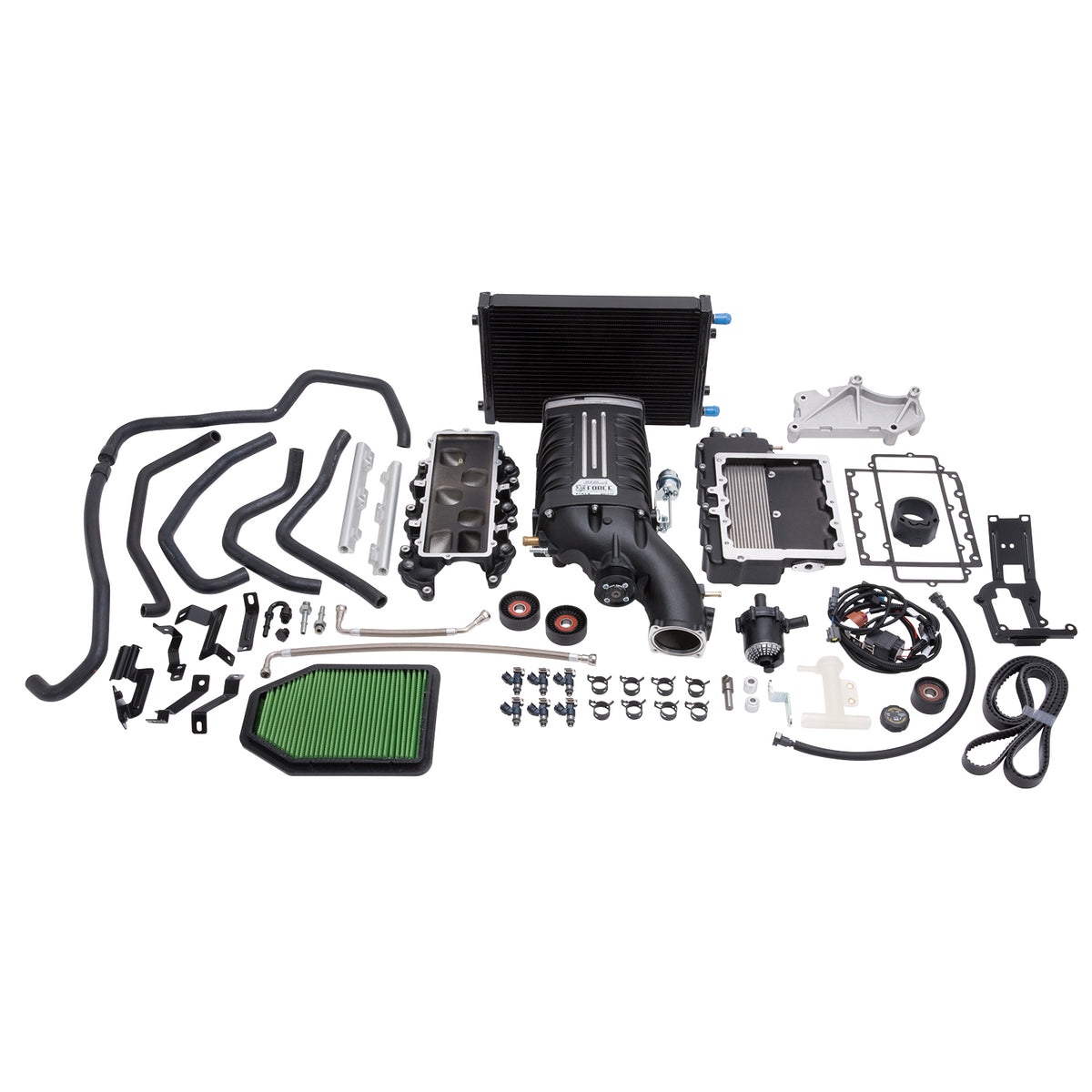

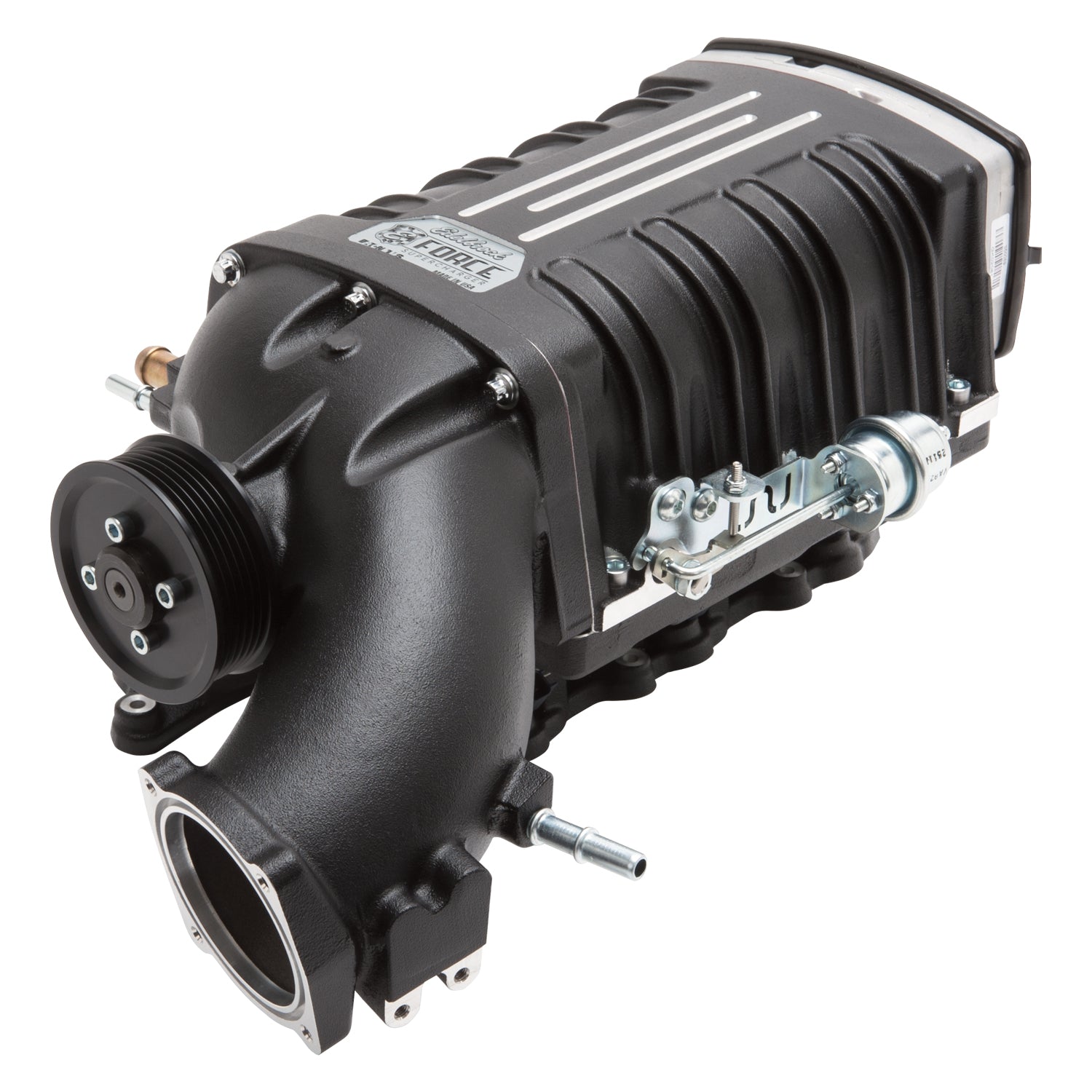

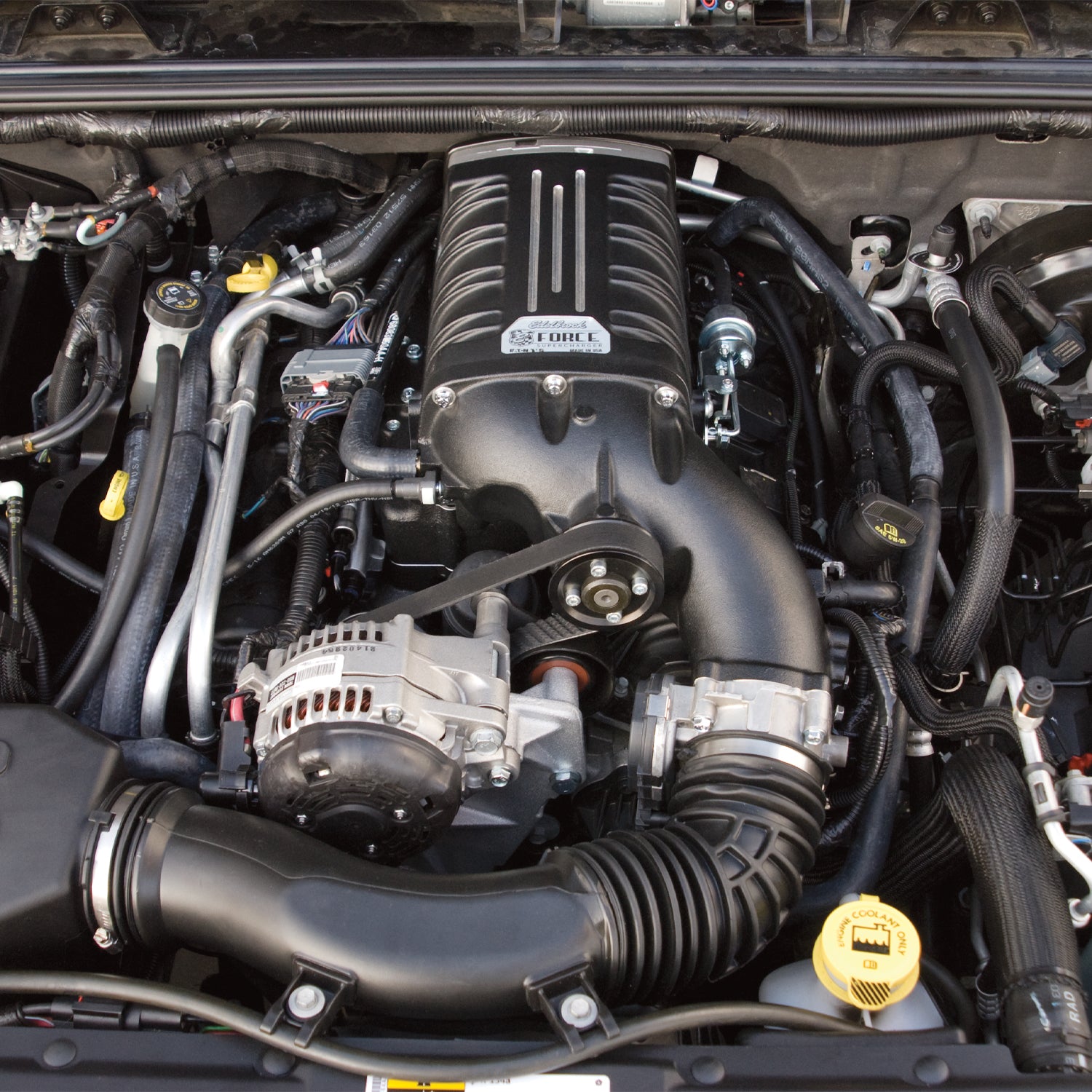

The Edelbrock Supercharger System Without Tuner #15270 is designed exclusively for the 2012-18 Jeep Wrangler JK featuring a unique design with minimal components that makes it possible to fit under the stock hood with no cutting or body modifications. At the core of this system is the Eaton Gen VI 1320 TVS rotating assembly with a four-lobe design and 160 degrees of twist for maximum flow, minimum temperature rise and quiet operation for excellent drivability. Horsepower output is 317 at the wheel with 277 ft-lbs of RWTQ (manual transmission). This supercharger has an integrated bypass valve to help eliminate parasitic loss under light throttle, improving mileage potential. Our unique and efficient inlet configuration results in a shorter, less restrictive intake path for improved airflow, without the need for a jack-shaft. Keeping the air cool is a high-capacity air-to-water intercooler and low-temp heat exchanger. This system #15270 fits 2012-18 JK models but does not include the hand-held programmer or calibration. Complete systems with programmer and calibration are available under part number 1527 for the 2012-14 Jeep Wrangler, and part number 1528 for the 2015-18 Jeep Wrangler.
Edelbrock supercharger part #15270 Jeep Wrangler 2012-18 3.6L Supercharger systems delivers 303 RWHP and 262 ft-lbs (automatic) and 317 RWHP and 277 ft-lbs (manual) without tuners are not eligible for supplemental warranty
| Housing Material | Cast Aluminum |
| Oil Capacity | 125 ML |
| Internal Step Up | Yes |
| Quantity | Kit |
| Vehicle Model | Wrangler |
| Mounting Bracket Included | Yes |
| Fuel Injector Type | 42 4U |
| Universal Or Specific Fit | Specific |
| Outside Pulley Diameter | 2.625 IN |
| Gasket Or Seal Included | Yes |
| Hose Included | Yes |
| Center Housing Cooling Type | Intercooler |
| Harmonic Balancer Diameter | 6.1 IN |
| Rotor Type | Eaton TVS 1320 |
| Air Filter Included | Yes |
| Calibration | No |
| Finish | Black Powder Coated |
| Mounting Hardware Included | Yes |
| System Type | Stage 1 - Street System |
| Pulley Belt Width | 6-Rib |
| 9040 | D-215-118 |
