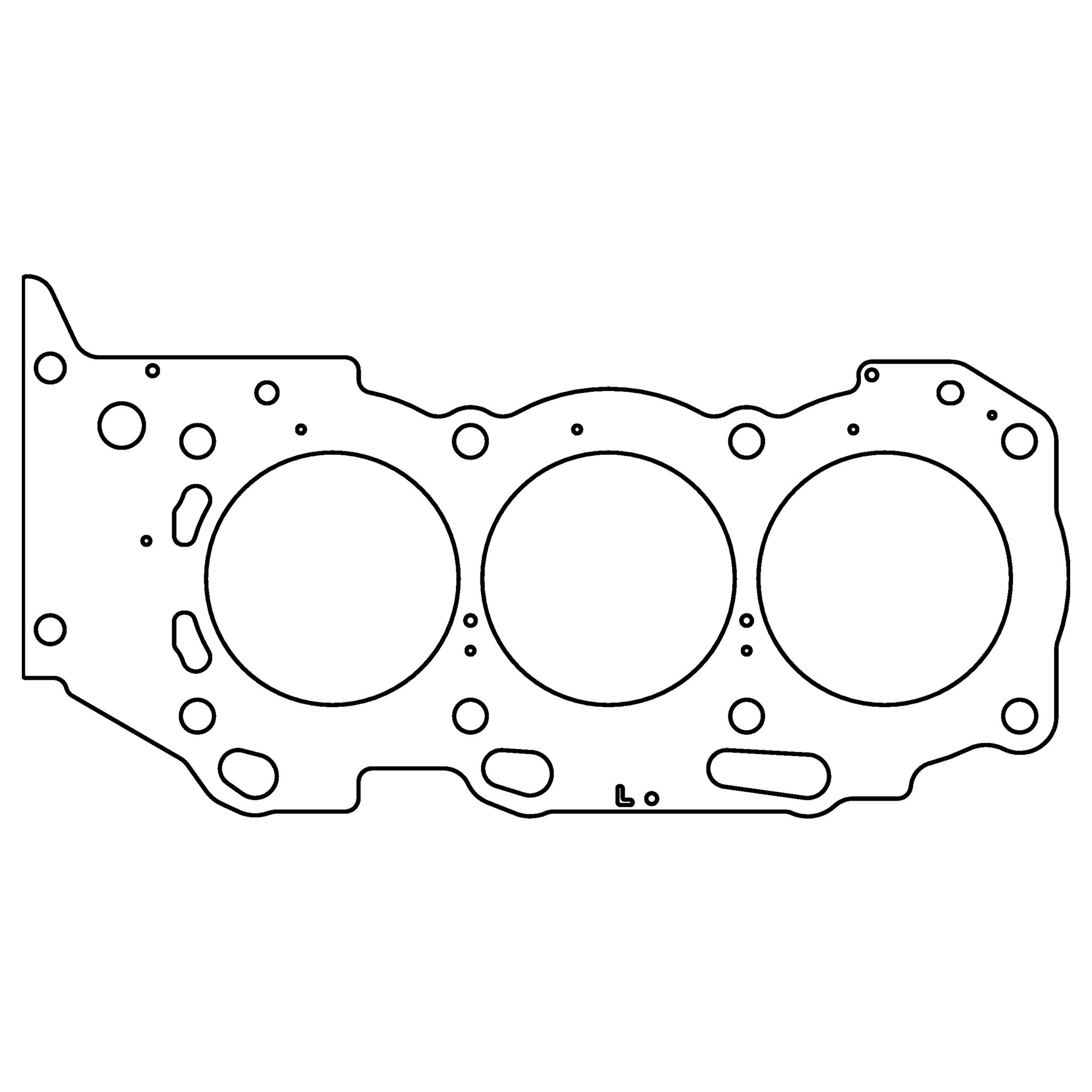

Cometic Toyota 1GR-FE V6 96.5mm Bore .036 inch MLS Head Gasket - Left - C14054-036

The Cometic Toyota 1GR-FE V6 96.5mm Bore .036 inch MLS Head Gasket - Left - C14054-036 is a precision-engineered head gasket with a 96.5mm bore and .036" compressed thickness for the Left-Hand Side (LHS).

The Cometic Multi-Layer Steel (MLS) head gasket is engineered for high-performance and racing applications where OEM gaskets fall short. Featuring Multi-Layer Steel (MLS) construction, this gasket uses multiple embossed steel layers that conform to surface irregularities and maintain a positive seal. Precision CNC-machined to exacting tolerances, this gasket seals combustion, water jackets, and oil passages simultaneously — eliminating the need for multiple gaskets or sealing compounds.

• Material: Multi-Layer Steel (MLS)
• Bore Size: 96.5mm
• Thickness: .036" compressed
• Position: Left-Hand Side (LHS)
• Part Number: C14054-036

Verified fitment: Toyota 4Runner (2003–2009); Toyota FJ Cruiser (2007–2010); Toyota Tacoma (2005–2015); Toyota Tundra (2005–2011).
