SKU: SKU: EDE15560
The Edelbrock Stage 1 Street Supercharger System part #15560 (No Tuner) for 2012-19 Scion FR-S, BRZ, or Toyota GT86 increases the performance of your 2.0L engine to 242 horsepower and 186 ft-lbs of torque at the rear wheels. This Edelbrock Supercharger System is designed exclusively for the FA20/4U-GSE engine. It's unique inverted design allows for maximum flow, while retaining great daily driving characteristics. It has been designed from the ground-up and utilizes the Eaton 1320 TVS rotor assembly for maximum efficiency in a compact package. As with all Edelbrock superchargers, this system features an efficient high flow inlet configuration that results in a shorter, less restrictive intake path for improved airflow and performance. To cool the incoming air, is a large air-to-water intercooler and heat exchanger. All of these features help the Edelbrock deliver dramatically improved performance, especially in the mid-range, where power dips have been eliminated for a smooth linear power curve. Lastly, the supercharger assembly is finished with a durable black powder coating with red accents for a unique look that will let everybody know your car is Edelbrock powered. Supercharger systems sold without tuners are only emissions legal when used with the correct Edelbrock program.

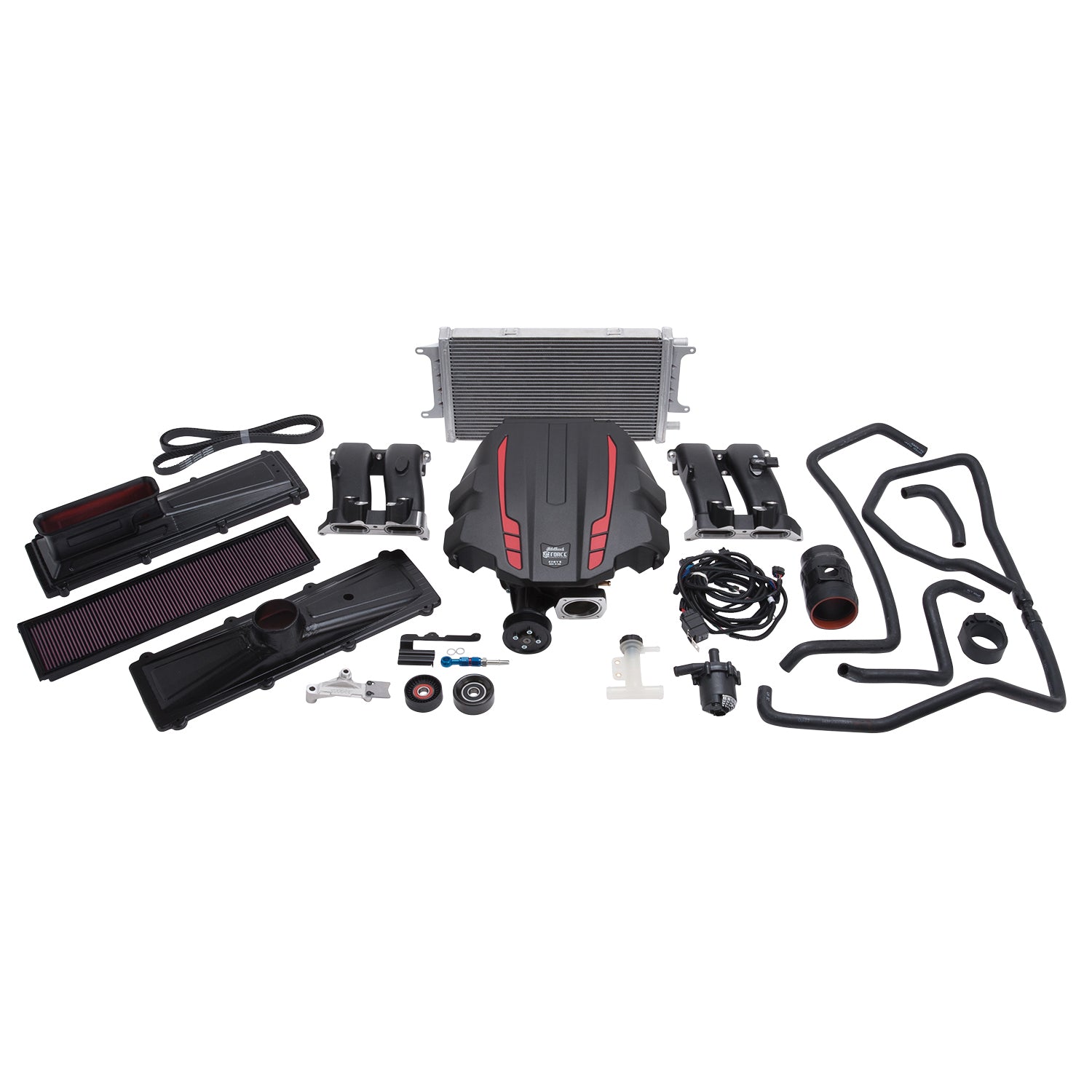

Edelbrock Stage 1 Street Supercharger System part #15560 (No Tuner) for 2012-19 Scion FR-S, BRZ, or Toyota GT86.
| Mounting Bracket Included | Yes |
| Oil Capacity | 125 ML |
| Quantity | Kit |
| Calibration | No |
| Air Filter Included | Yes |
| Internal Step Up | Yes |
| 9040 | D-215-116 |
| Mounting Hardware Included | Yes |
| Harmonic Balancer Diameter | Stock |
| Pulley Belt Width | 6-Rib |
| Vehicle Model | FRS/BRZ/FT86 |
| Finish | Black Powder Coated |
| Outside Pulley Diameter | 3.25 IN |
| System Type | Stage 1 - Street System |
| Rotor Type | Eaton TVS 1320 |
| Housing Material | Cast Aluminum |
| Hose Included | Yes |
| Center Housing Cooling Type | Intercooler |
| Universal Or Specific Fit | Specific |
| Gasket Or Seal Included | Yes |
California Prop 65 Warning: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
