SKU: SKU: EDE1556

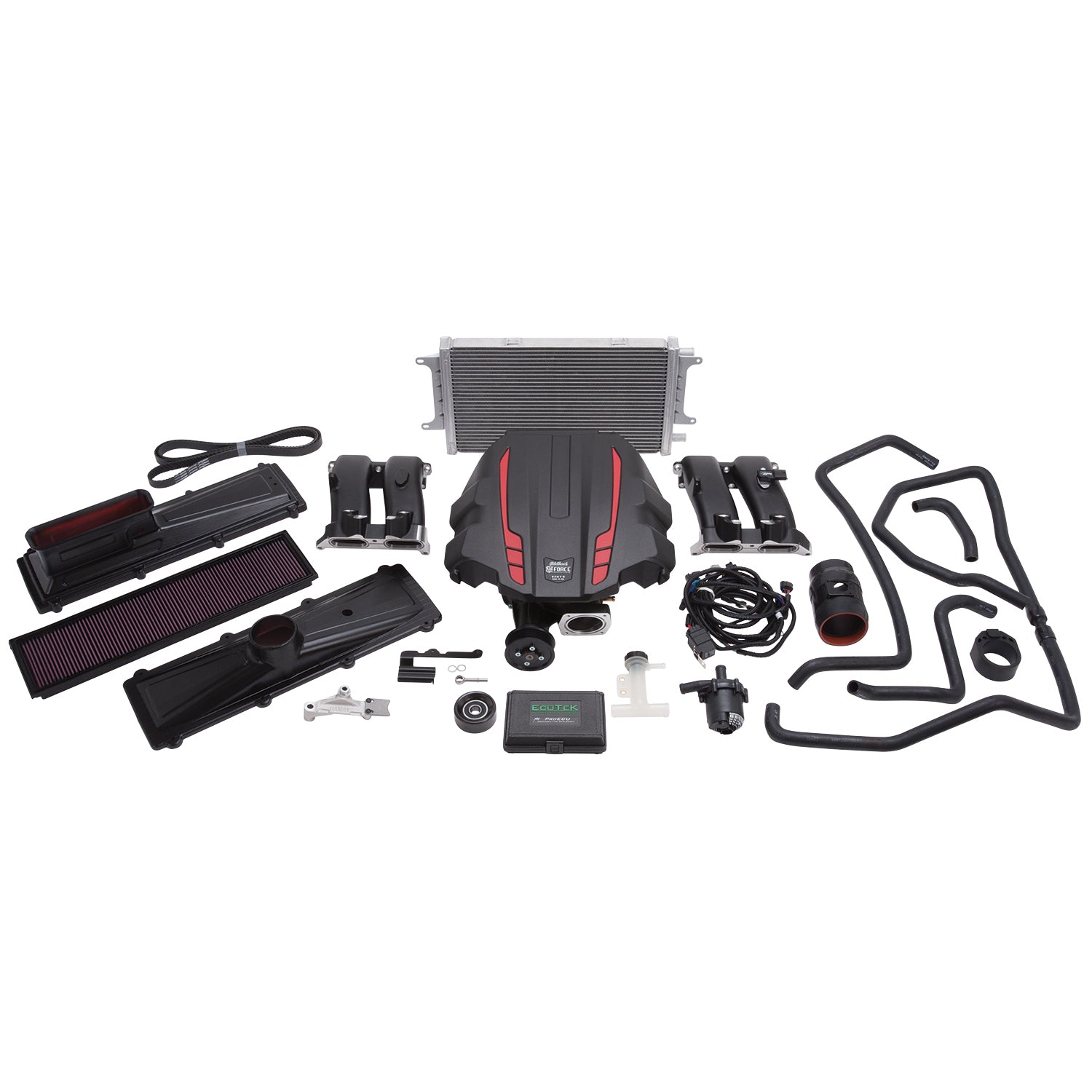

The Edelbrock Stage 1 Street Supercharger System part #1556 for 2012-19 Scion FR-S, BRZ, or Toyota GT86 increases the performance of your 2.0L engine to 242 horsepower and 186 ft-lbs of torque at the rear wheels. This Edelbrock Supercharger System is designed exclusively for the FA20/4U-GSE engine. Its unique inverted design utilizes the Eaton 1320 TVS rotor assembly for maximum efficiency in a compact package. This system features an efficient high flow inlet configuration that results in a shorter, less restrictive intake path for improved airflow and performance. An air-to-water intercooler and front mount heat exchanger deliver a cool, dense air charge resulting in dramatically improved performance, especially in the mid-range, where power dips have been eliminated for a smooth linear power curve. The supercharger assembly is finished with a durable black powder coating with red accents for a unique look that will let everybody know your car is Edelbrock supercharged! The Edelbrock #1556 system is 50-state emissions legal. The supplied tune is intended for completely stock vehicles with the exception of a cat-back exhaust.
| Air Filter Included | Yes |
| Oil Capacity | 125 ML |
| Maximum Boost Pressure | 9 PS |
| Vehicle Model | FRS/BRZ/FT86 |
| Finish | Black Powder Coated |
| Rotor Type | Eaton TVS 1320 |
| Calibration | Yes |
| Housing Material | Cast Aluminum |
| Universal Or Specific Fit | Specific |
| Internal Step Up | Yes |
| Quantity | Kit |
| Mounting Bracket Included | Yes |
| Maximum Torque | 186RW 85 |
| Gasket Or Seal Included | Yes |
| Hose Included | Yes |
| Maximum Horsepower | 242RW |
| Mounting Hardware Included | Yes |
| Center Housing Cooling Type | Intercooler |
| Outside Pulley Diameter | 3.25 IN |
| System Type | Stage 1 - Street System |
| Harmonic Balancer Diameter | Stock |
| Pulley Belt Width | 6-Rib |
| Maximum Pressure Reading | 9 PS |
| 9040 | D-215-116 |
