Edelbrock Supercharger Stage 1 - Street Kit 2016 Mazda MX-5 Miata 2.0L w/ Tune - 1554

SKU: SKU: EDE1554

<p>Earn%20[points_amount]%20when%20you%20buy%20this%20item.</p>

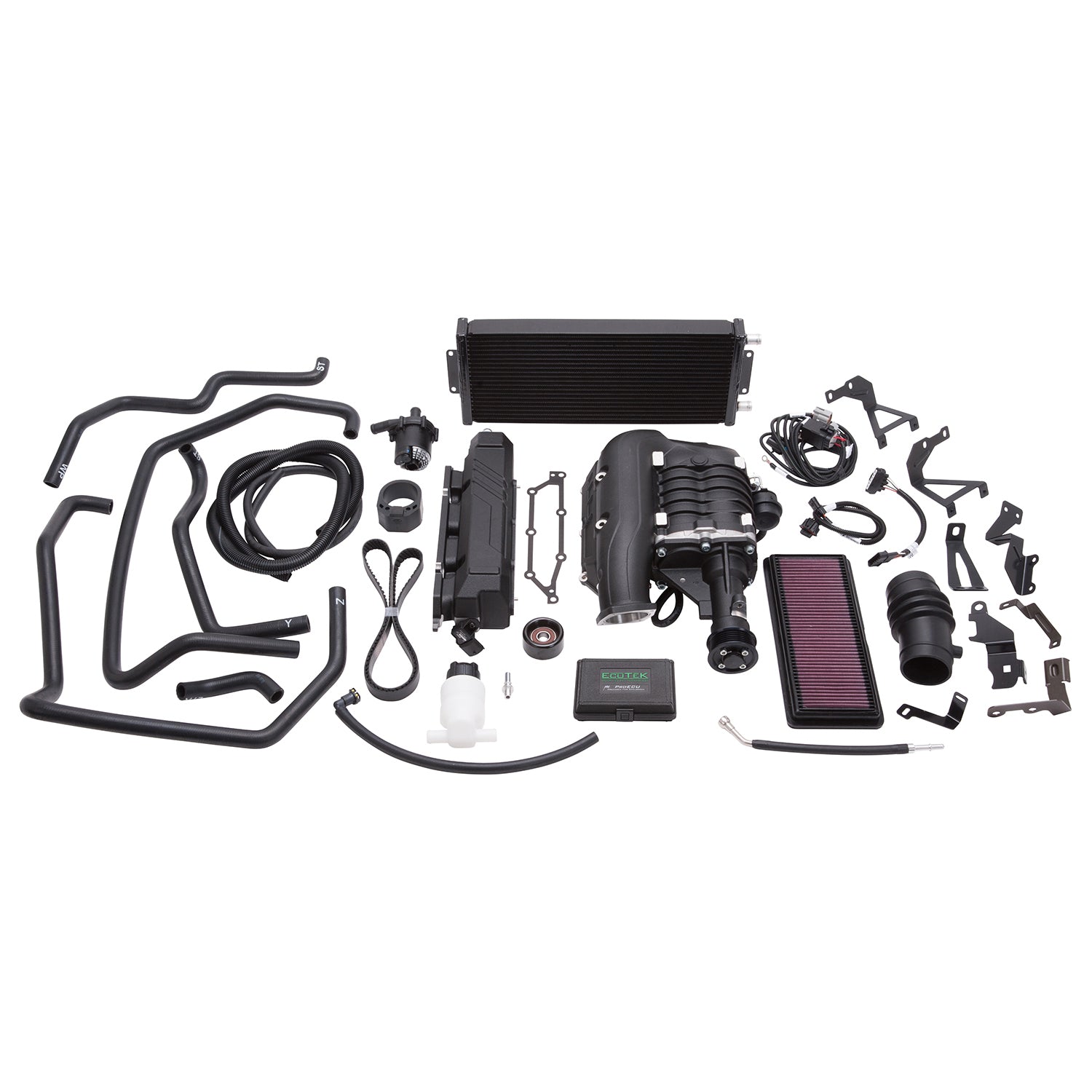

The Edelbrock Stage 1 Street Supercharger system part #1554 for 2016-18 Mazda MX-5 Miata increases the performance of your SKYACTIV -G 2.0L engine to 198 RWHP and 182 ft-lbs of torque at the rear wheels. Its unique design utilizes the Eaton R900 TVS rotor assembly for maximum efficiency in a compact package. An air-to-water intercooler and front mount heat exchanger deliver a cool, dense air charge resulting in dramatically improved performance with a smooth and linear power curve. The supercharger assembly is finished with a durable black powder coating that integrates seamlessly into the Miata engine bay. For safety, the Edelbrock-supplied program will retain the factory vehicle speed limiter setting. Increases horsepower by 41% and torque by 36% over stock. Unique compact design fits under the stock hood. Supplied with preformed hoses for ease of installation - no trimming needed. Bolt-on installation - everything fits right out of the box with no cutting or welding needed. Features Eaton Gen VI R900 TVS rotor assembly

Edelbrock Stage 1 Street Supercharger system part #1554 for 2016-18 Mazda MX-5 Miata increases the performance of your SKYACTIV-G 2.0L engine to 198 horsepower and 182 ft-lbs of torque at the rear wheels.

Specifications

Hose Included Yes
Outside Pulley Diameter 2.75 IN
Gasket Or Seal Included Yes
Maximum Boost Pressure 8.25 PS
Vehicle Model Miata MX-5
Housing Material Cast Aluminum
Quantity Kit
Maximum Pressure Reading 8.25 PS
Rotor Type Eaton TVS 900
Internal Step Up Yes
Mounting Bracket Included Yes
Universal Or Specific Fit Specific
Maximum Torque 182RW 85
Harmonic Balancer Diameter Stock
Calibration Yes
Finish Black Powder Coated
Air Filter Included Yes
Oil Capacity 125 ML
9040 D-215-95
Center Housing Cooling Type Intercooler
System Type Stage 1 - Street System
Maximum Horsepower 198RW
Mounting Hardware Included Yes
Pulley Belt Width 6-Rib

California Prop 65 Warning: WARNING: This product can expose you to Chromium, which is known to the State of California to cause cancer or birth defects or other reproductive harm. For more information, visit www.P65warnings.ca.gov.
