Premium OSRAM performance in a compact 3" format with IP69K sealing, Deutsch DT reliability, and unmatched value. Designed and engineered in the USA, the VEGA series delivers intense illumination with 1000'+ projection in a patent-pending design that outperforms competitors at a lower price point.
Why Choose VEGA LED Spotlights
Our Goal: The VEGA compact off-road LED series provides an unparalleled lighting experience using high-quality OSRAM LED chips that deliver intense output performance with exceptional durability and reliability-offering more light output at a lower price than comparable products on the market.
Performance: Designed from scratch for performance, value, and durability. IP69K ingress-protection and OE-level Deutsch DT connectors increase overall reliability, while OSRAM LED chips deliver high lumen illumination. CAE analysis helped optimize lens optics and thermal dynamics to create a product that's both powerful and dependable.
Origins: Vega is the brightest star in the northern constellation and has long served as a baseline for photometric calibration-a fitting namesake for a series built around precision and intensity. Vega is approximately 40 times brighter than Earth's sun and has been termed "arguably the next most important star in the sky after the Sun."
VEGA 20W Series 2
-
2,000 Raw Lumens: Intense light output for maximum visibility
-
Focused Spot Beam: Almost 1000' projection distance
-
Patent-Pending Design: Unique angled lens for versatile mounting
-
Designed in USA: Engineered and designed in the United States
-
Powdercoated Aluminum: Durable construction for harsh conditions
-
Deutsch DT Connector: OE-level reliability with 2' whip
-
5-Year Warranty: Full replacement warranty coverage
VEGA 40W Series 4
-
4,000 Raw Lumens: Intense light output for maximum visibility
-
Focused Spot Beam: Over 1000' projection distance
-
Patent-Pending Design: Unique angled lens for versatile mounting
-
Designed in USA: Engineered and designed in the United States
-
Powdercoated Aluminum: Durable construction for harsh conditions
-
Deutsch DT Connector: OE-level reliability with 2' whip
-
5-Year Warranty: Full replacement warranty coverage
Versatility & Design
Styled with an angled front lens, the VEGA's patent-pending design more closely reflects OEM surfaces in many popular mounting positions. The beam pattern is horizontally symmetrical, so the lights can be mounted upside down or right side up without changing the beam angle. The result is a compact product with thoughtful styling and a versatile install footprint that adapts to your vehicle's unique mounting requirements.
VEGA™ Series 2 (20W) Specifications
-
Raw Lumens: 2,000 lm
-
Beam Angle: Spot Light
-
Chip Power: 10W x 2 LED (20W)
-
Power Draw: 1.35A
-
LED Chip: OSRAM KW CSLNM1.TG
-
CCT Color Temp: 6000K
-
Candela (10m): 96,730 cd
-
Lux (10m): 967.3 lux
-
Projection Distance: 988 ft
-
Operating Temp: -40°F to 185°F
-
Connector Type: Deutsch DT 2-Pin
-
Lens Material: Polycarbonate
-
Housing Material: Powdercoated Aluminum
-
Mounting Hardware: 304 Stainless Steel
-
Ingress Protection: IP69K
-
Lamp Dimensions: 60mm x 63mm x 80mm
-
Lamp Weight: 1.25 lbs
-
Warranty Term: 5 Years
VEGA™ Series 4 (40W) Specifications
-
Raw Lumens: 4,000 lm
-
Beam Angle: Spot Light
-
Chip Power: 10W x 4 LED (40W)
-
Power Draw: 1.5A
-
LED Chip: OSRAM KW CSLNM1.TG
-
CCT Color Temp: 6000K
-
Candela (10m): 99,680 cd
-
Lux (10m): 996.8 lux
-
Projection Distance: 1,049 ft
-
Operating Temp: -40°F to 185°F
-
Connector Type: Deutsch DT 2-Pin
-
Lens Material: Polycarbonate
-
Housing Material: Powdercoated Aluminum
-
Mounting Hardware: 304 Stainless Steel
-
Ingress Protection: IP69K
-
Lamp Dimensions: 75mm x 85mm x 82mm
-
Lamp Weight: 1.67 lbs
-
Warranty Term: 5 Years

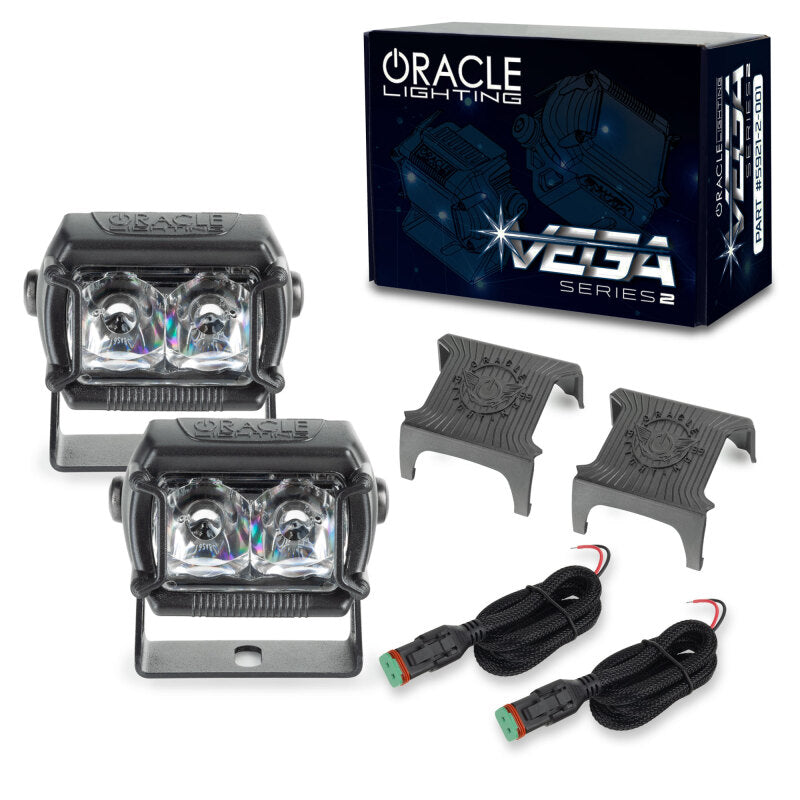

VEGA 20W Series 2
- (2) Vega 20W Series 2 Spotlights
- (2) Deutsch DT 24" Cable Whips
- (2) Black-Out Lens Covers
- (2) Standard Universal Brackets
- (2) Stainless Steel Hardware Sets
VEGA 40W Series 4
- (2) Vega 40W Series 4 Spotlights
- (2) Deutsch DT 24" Cable Whips
- (2) Black-Out Lens Covers
- (2) Standard Universal Brackets
- (2) Stainless Steel Hardware Sets
