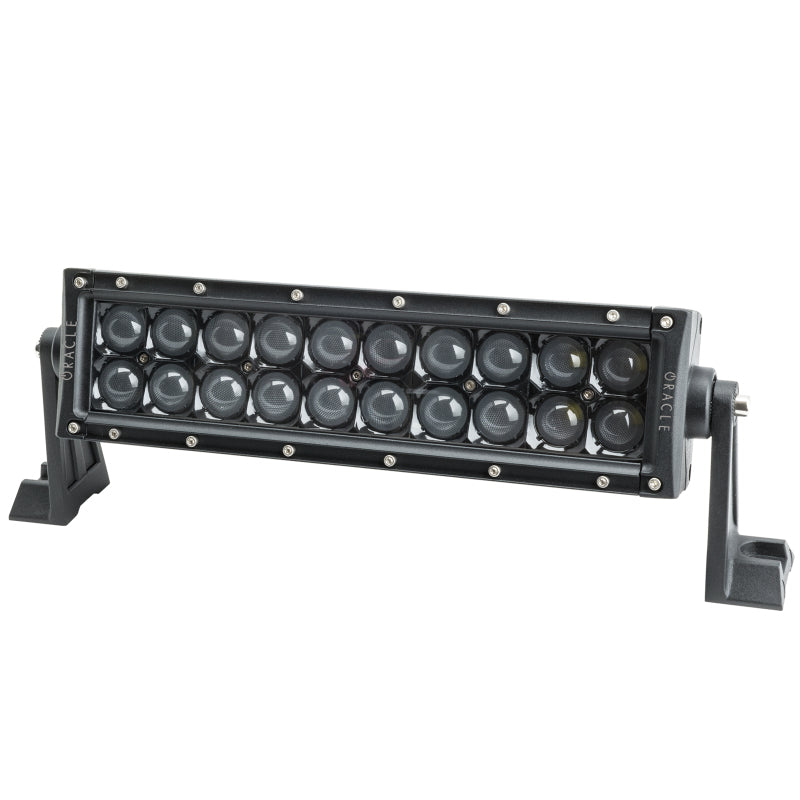

ORACLE's Black Series 12" dual-row LED light bar delivers 5,100 lumens of CREE-powered illumination in a rugged die-cast housing with a blacked-out inner bezel - a compact, purpose-built off-road bar for bumpers, roof mounts, and A-pillars with both wide and narrow beams, IP67 waterproofing, and shockproof construction.
Product Overview
ORACLE high-powered LED Off-Road Light Bars are redesigned for a more aggressive look. The Black Series features a signature "BlackSeries" inner blackout bezel for a stealthy, high-contrast appearance that sets it apart from standard light bars.
Powered by high-output CREE LEDs (made in the U.S.A.) and housed in a nearly indestructible rugged die-cast PMMA lens housing, this 7D 12" dual-row bar delivers 5,100 lumens of combined wide and narrow beam output - perfect for bumper mounts, roof racks, A-pillar pods, or anywhere you need a compact but powerful off-road light.
Shock-resistant construction, IP67 waterproof rating, and a 50,000-hour LED lifespan mean this bar is built to handle the toughest terrain you can put it through.
Key Features
-
5,100 Lumens Output - High-intensity CREE LEDs (made in the U.S.A.) for maximum off-road visibility
-
60W Dual-Row Configuration - Wide and narrow beams emitted simultaneously
-

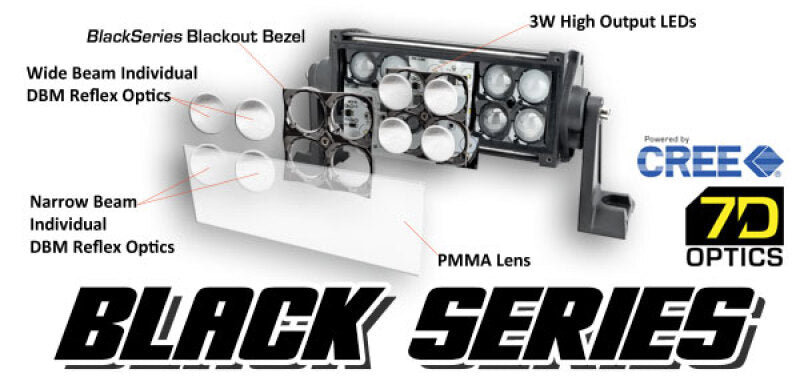

"BlackSeries" Inner Blackout Bezel - Aggressive, stealthy appearance with high-contrast styling
-
7D Optics - Enhanced beam distance and uniformity
-
Rugged Die-Cast Housing - Nearly indestructible construction for extreme off-road use
-
PMMA Lens - Durable, optically clear lens for superior light transmission
-
IP67 Waterproof Rating - Protected against dust and water intrusion
-
Shockproof Design - Built to absorb vibration and impact on rough terrain
-
Low Power Draw - 5A @ 12V / 2.5A @ 24V for efficient operation
- 50,000-Hour LED Lifespan
- Side-Mounting Brackets Included
Performance & Technical Specifications
-
Part Number: 5805-001
-
Wattage: 60W
-
Lumens: 5,100 lm
-
Color Temperature: 6,000K
-
Amp Draw: 5A @ 12V / 2.5A @ 24V
-
Beam Pattern: Wide + Narrow (Dual)
-
Waterproof Rating: IP67
-
LED: CREE (Made in U.S.A.)
-
LED Lifespan: 50,000 hours
-
Housing: Die-Cast Aluminum
-
Lens: PMMA
-
Weight: 3 lbs 0.8 oz
-
Bar Length: 12"
-
Optic: 7D
-
Warranty: 1 Year
Vehicle Fitment
Universal Application: Compatible with any vehicle or mounting system that accepts a 12" light bar with standard side-mount brackets.
What's Included
- (1) ORACLE Black Series 12" 60W Dual Row LED Light Bar
- Side-Mounting Brackets
- Installation Hardware
